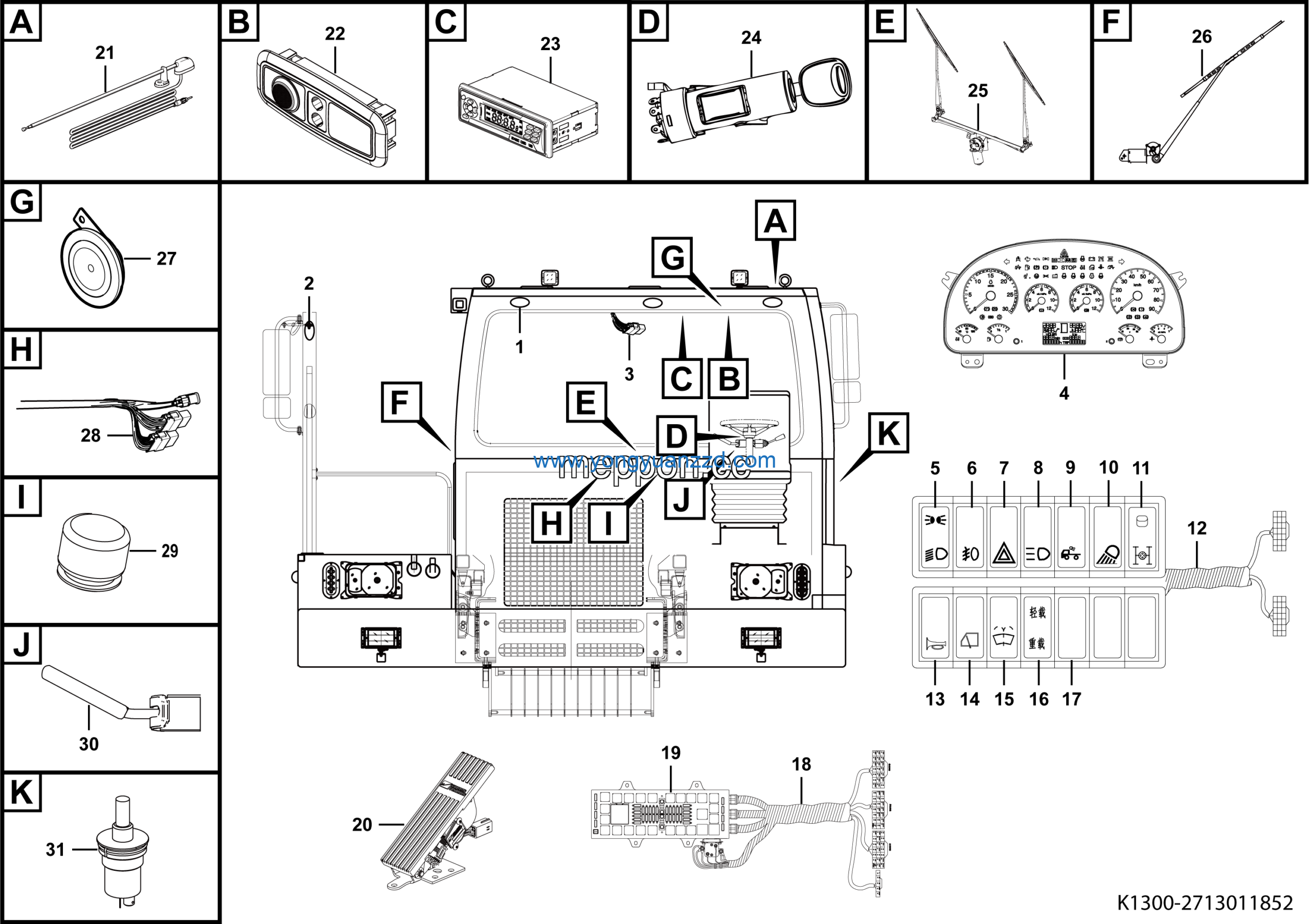

LGMG MT86H Mine Truck – Cab electrical system – K1300-2713011852
Category: Mine Truck > MT86H > M086HWA31
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Work lamp rocker switch JK939C | 4130000319 | 1 |
| 2 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 3 | Become warped plate switch wiring harness | 27130117571 | 1 |
| 4 | Horn rocker switch JK939C | 4130000315 | 1 |
| 5 | Side window wiper rocker switch JK939C | 4130000341 | 1 |
| 6 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 7 | Power curve switching rocker switch JK939C | 4130001113 | 1 |
| 8 | Cover plate | 4130000328 | 8 |
| 9 | Cab wire | 27130118401 | 1 |
| 10 | Central control box KZQ-003C | 4130001102 | 1 |
| 11 | Cab FR position light | 4130000954 | 4 |
| 12 | Electronic accelerator WL400244 | 4130000413 | 1 |
| 13 | Antenna QT1290B259 | 4130000300 | 1 |
| 14 | Indoor ceiling lamp LG751 | 4130000312 | 1 |
| 15 | Radio TK-B50D | 4130000706 | 1 |
| 16 | Lgnition lock assy LG751 | 4130000309 | 1 |
| 17 | Integral wiper 37419000040 | 4130000949 | 1 |
| 18 | Side wiper sys | 4130000807 | 1 |
| 19 | Horn TX1033AR29 | 4130000299 | 2 |
| 20 | Head cap harness | 27130118101 | 1 |
| 21 | Cigarette lighter LG770 | 4130000364 | 1 |
| 22 | Platform harness | 27200106091 | 1 |
| 23 | Combination switch CS-102621 | 4130001174 | 1 |
| 24 | Door lamp switch LG751 | 4130000323 | 1 |
| 25 | Cab ceiling harness | 27130118091 | 1 |
| 26 | Stepping instrument panel ZB209LGNB | 4130000987 | 1 |
| 27 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 28 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 29 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 30 | Main-beam headlamp rocker switch JK939C | 4130000331 | 1 |
| 31 | Cab RR work lamp rocker switch JK939C | 4130000342 | 1 |
