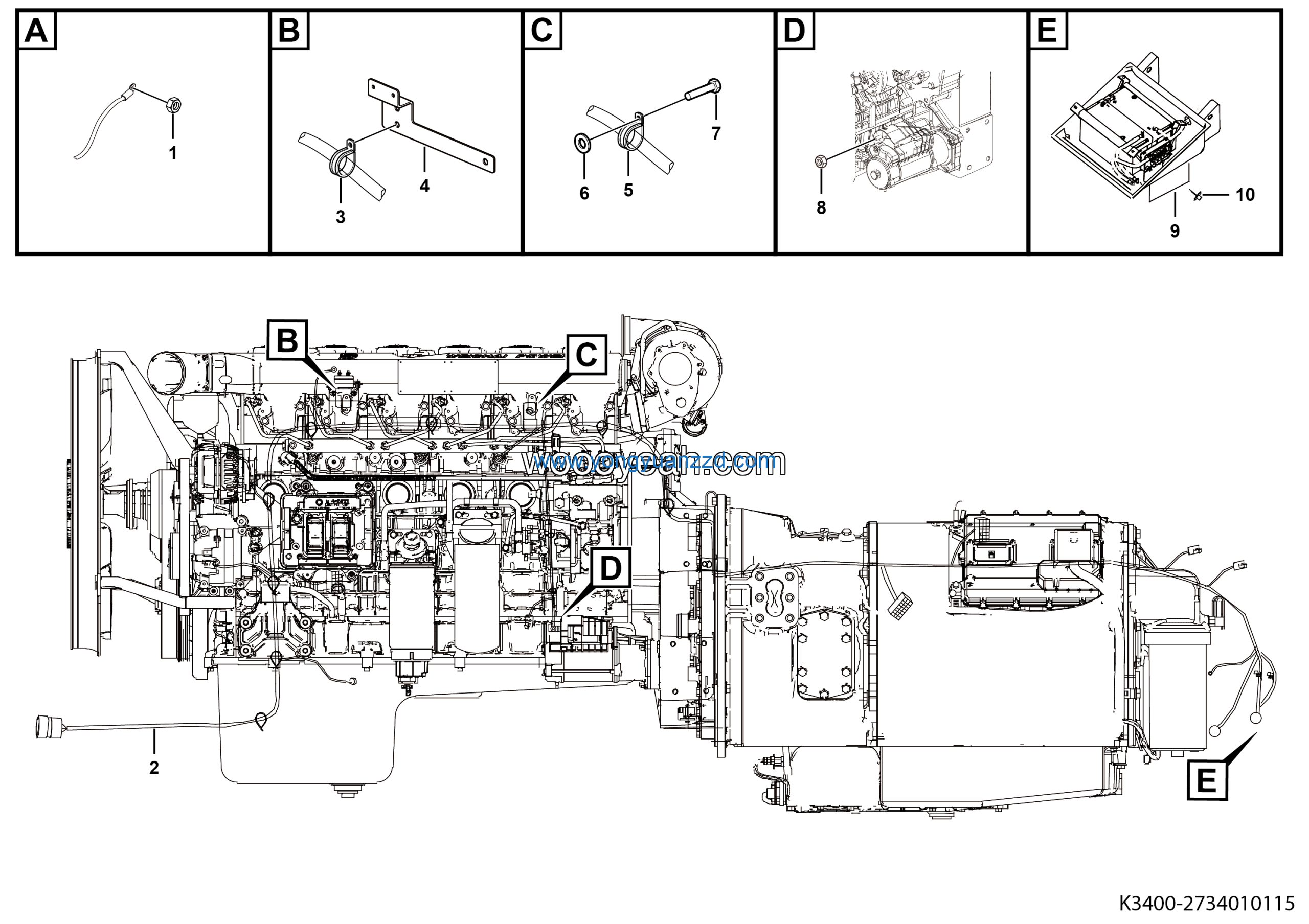

LGMG MT86H Mine Truck – Engine electrical system – K3400-2734010115
Category: Mine Truck > MT86H > M086HWF13
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Emergency flameout switch | 4130701693 | 1 |
| 2 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 3 | Engine wiring harness | 27340101161 | 1 |
| 4 | Pipe clamp | 26370001921 | 1 |
| 5 | Surport | 27350100201 | 1 |
| 6 | Clamp | 26370001911 | 5 |
| 7 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 8 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 3 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 10 | Emergency flameout switch bracket | 27200109841 | 1 |
