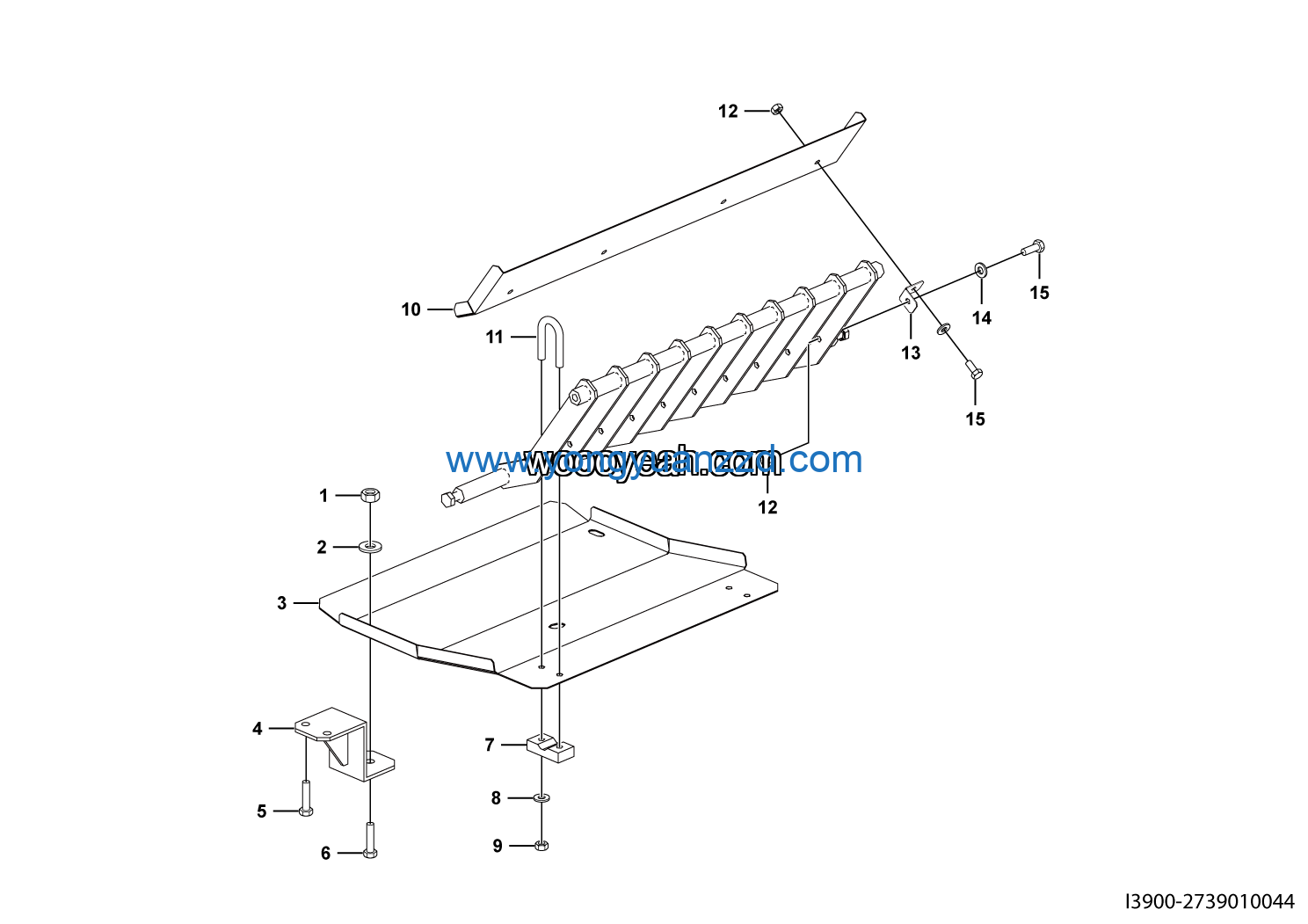

LGMG MT86H Mine Truck – Fan guide assy – I3900-2739010044
Category: Mine Truck > MT86H > MT86
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front guard plate | 27390100361 | 1 |
| 2 | U SHAP BOLT | 27390100171 | 2 |
| 3 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 4 | Connecting plate | 27390100351 | 4 |
| 5 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 6 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 8 |
| 7 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 8 | Washer GB96.1-14EpZn-300HV | 4015000188 | 2 |
| 9 | Plate | 27390100451 | 1 |
| 10 | Seat | 27390100461 | 2 |
| 11 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 4 |
| 12 | Bolt GB5783-M14*30EpZn-8.8 | 4011000265 | 2 |
| 13 | Rubber mat | 27390100201 | 2 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
