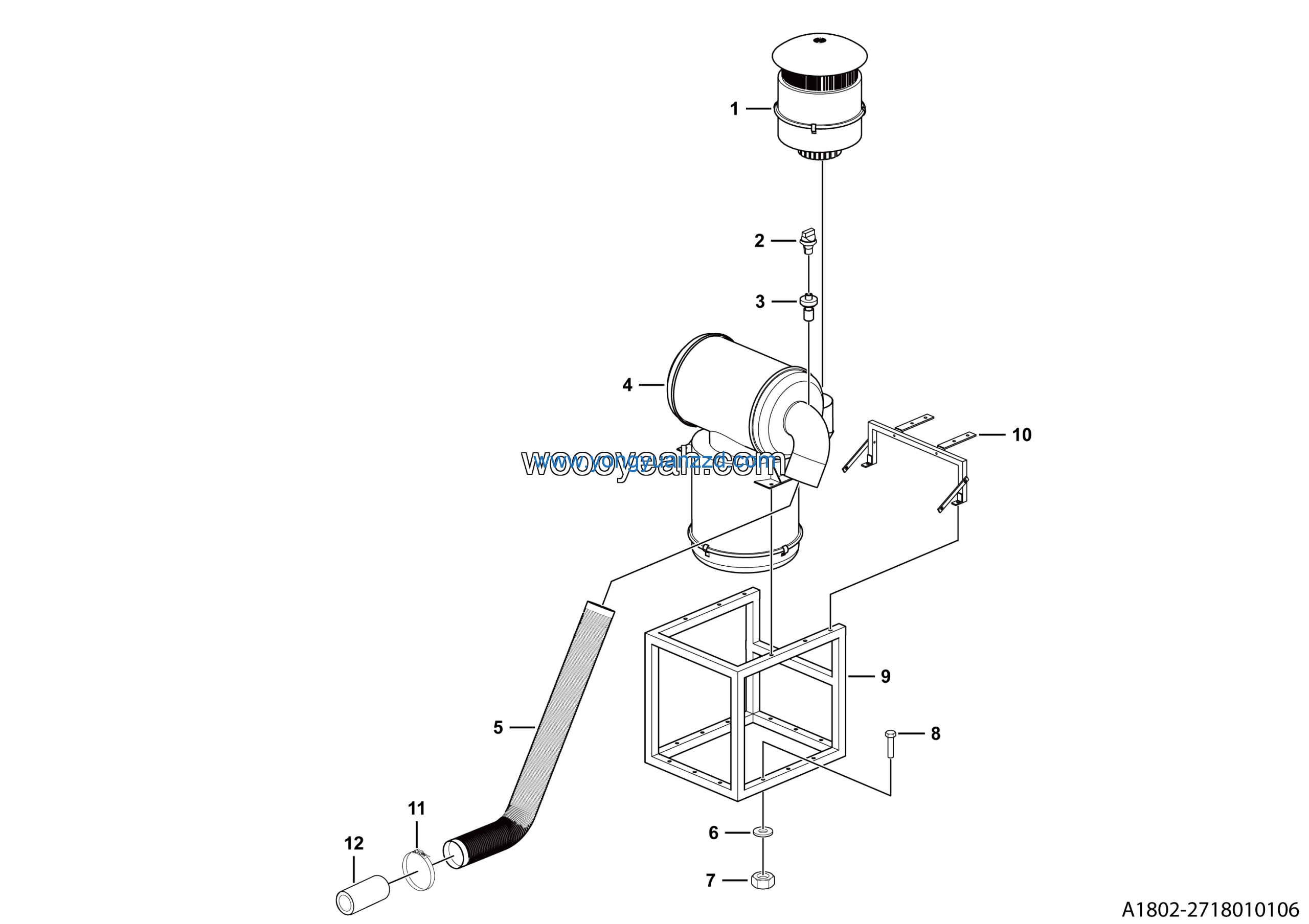

LGMG MT86H Mine Truck – Filter assembly – A1802-2718010106
Category: Mine Truck > MT86H > M0860WBQ0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Prefilter holder 4190000172 | 4190000172 | 1 |
| 2 | Hose clamp JB8870-D32 | 4017000011 | 1 |
| 3 | Pipe | 27180102192 | 1 |
| 4 | Prefilter assy | 4110000127 | 1 |
| 5 | No longer used | 4110000036 | 1 |
| 6 | Connecting joint | 4110000037 | 1 |
| 7 | Oil bath air filter | 4190000153 | 1 |
| 8 | Connecting hose | 4190001542 | 1 |
| 9 | Washer GB96.1-12EpZn-300HV | 4015000186 | 20 |
| 10 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 11 |
| 11 | Bolt GB5782-M12*65EpZn-8.8 | 4011000261 | 10 |
| 12 | Bracket 4190000171 | 4190000171 | 1 |
