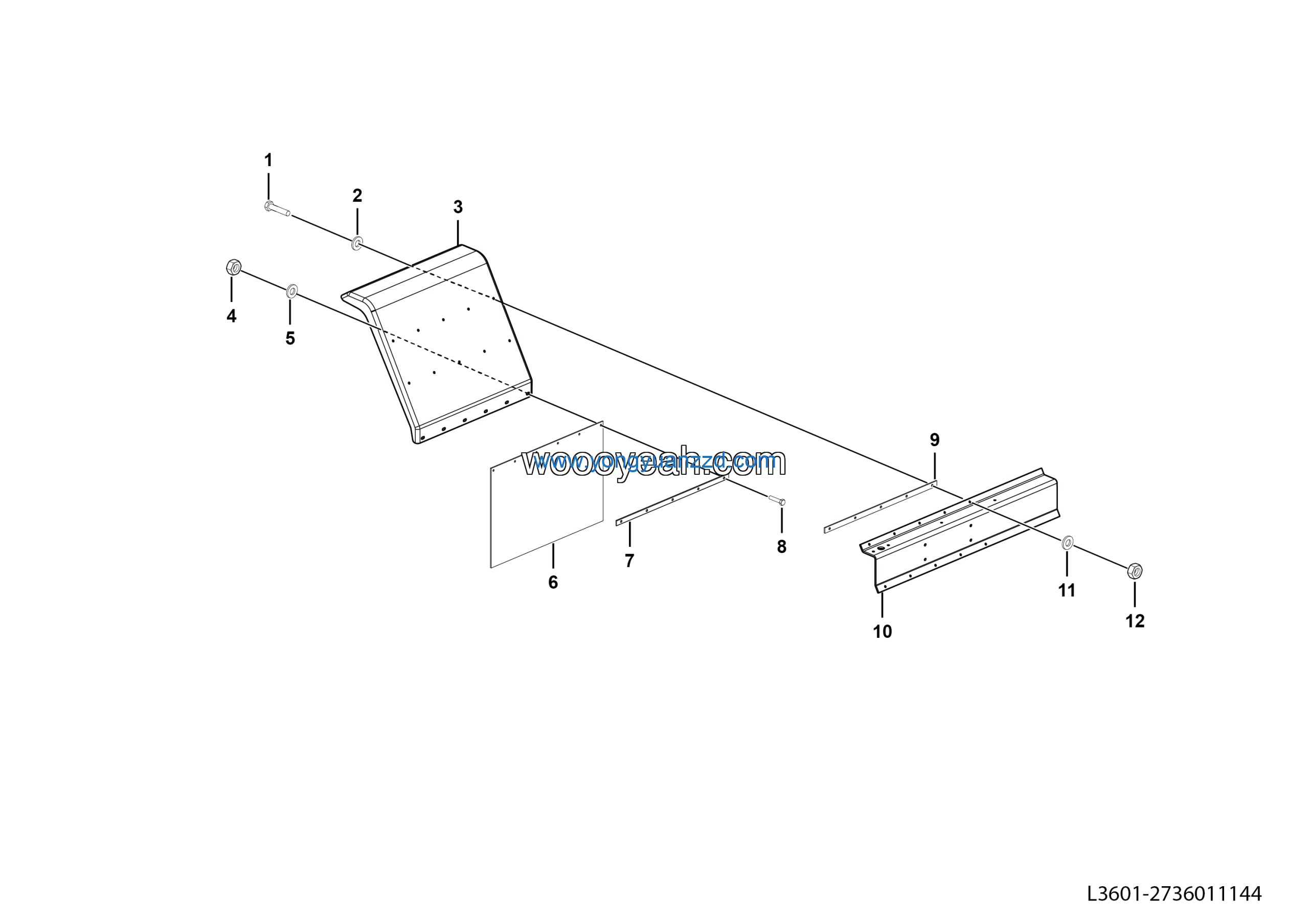

LGMG MT86H Mine Truck – Left mudguard assy – L3601-2736011144
Category: Mine Truck > MT86H > M086HWAV4
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support | 27360111422 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 10 |
| 3 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 10 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 10 |
| 5 | Washer GB96.1-10EpZn-300HV | 4015000197 | 10 |
| 6 | Left fender | 27360111401 | 1 |
| 7 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 6 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 9 | Mudflap | 27360109251 | 1 |
| 10 | Hold-down plate | 27360112711 | 1 |
| 11 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 6 |
| 12 | NR | 27360111391 | 2 |
