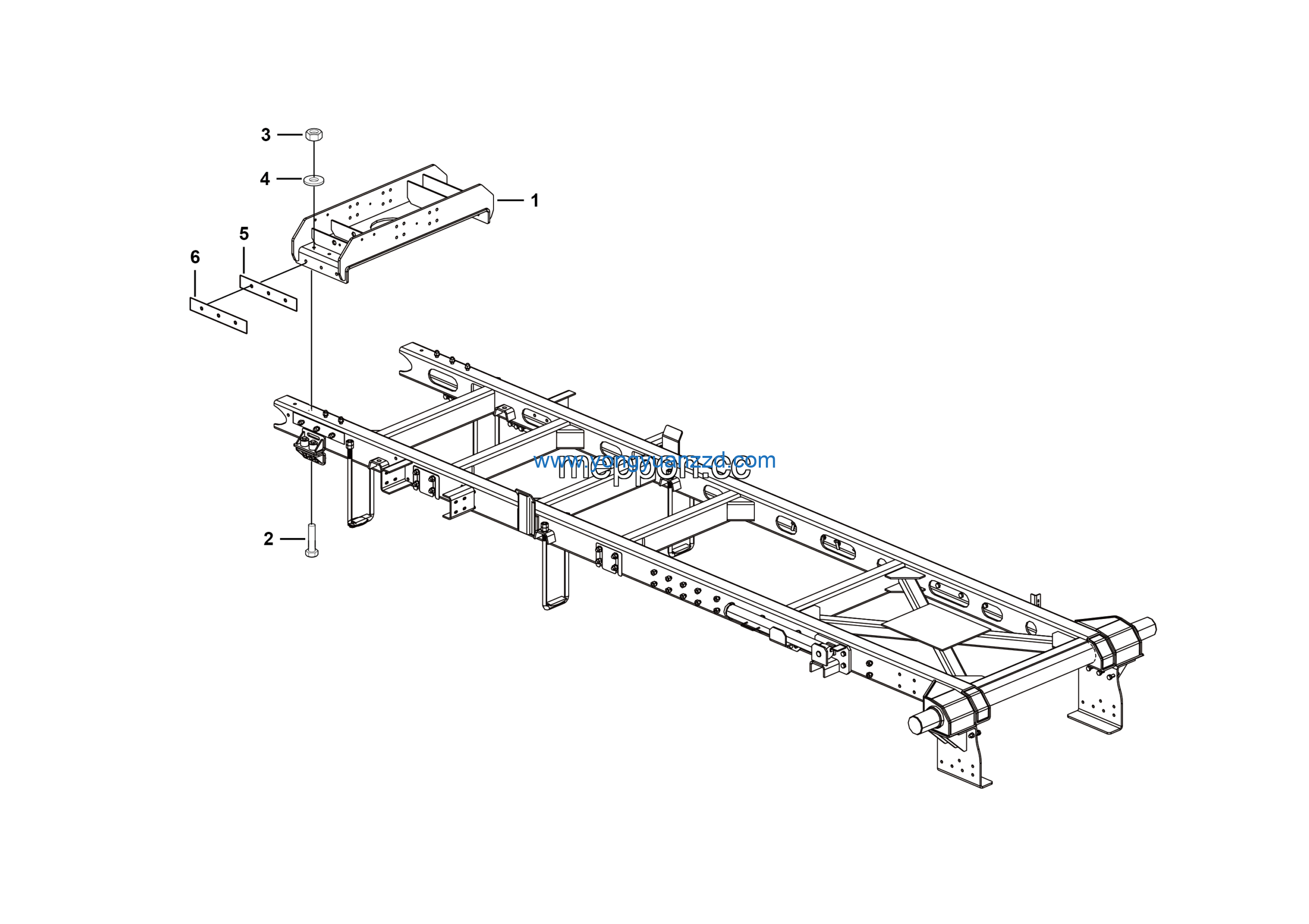

LGMG MT86H Mine Truck – Lifting cylinder support installation assy – I1500-2740010283
Category: Mine Truck > MT86H > M086HWAP6-G1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assembly | 27400101951 | 1 |
| 2 | Bolt GB5783-M16*50flZnyc-12.9-480 | 4011010616 | 12 |
| 3 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 4 | Washer GB97.1-16EpZn-300HV | 4015000181 | 24 |
| 5 | Adjusting Shim | 27170125431 | 2 |
| 6 | Adjusting Shim | 27170125441 | 2 |
