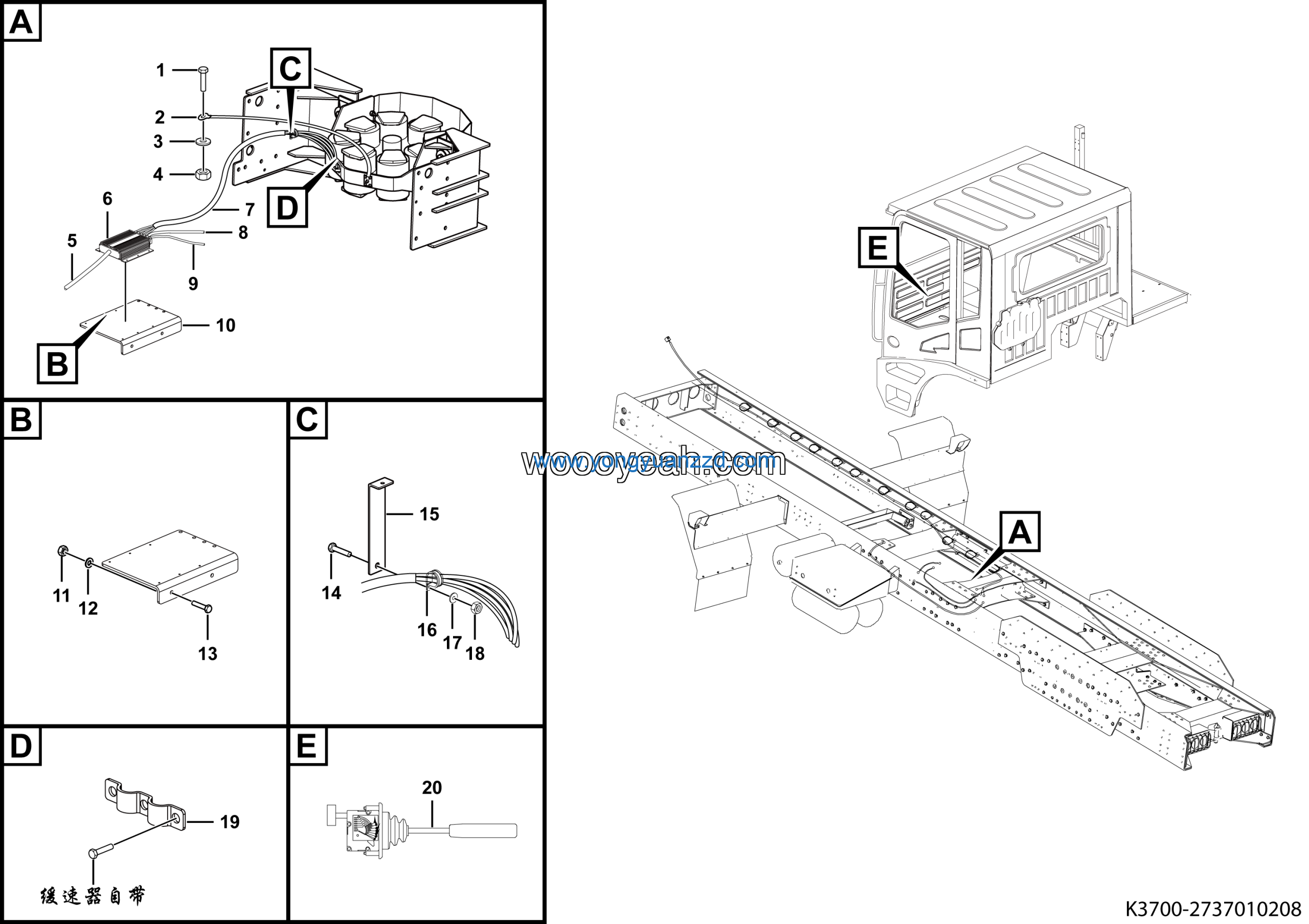

LGMG MT86H Mine Truck – Retarder electrical system assy – K3700-2737010208
Category: Mine Truck > MT86H > M086HWAY0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fixing bracket assy | 4190002543 | 1 |
| 2 | Nut GB6185.2-M12*1.5EpZn-10 | 4013010172 | 2 |
| 3 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 4 | Bolt GB5786-M12*1.5*35-8.8 | 4011010313 | 2 |
| 5 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 6 | Bracket of retarder harness | 27370101761 | 1 |
| 7 | Pipe clamp, for fixing control valve harness | 26370001961 | 1 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 9 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 10 | Clamp | 27370101561 | 1 |
| 11 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 1 |
| 12 | Manual switch 35240020230 | 4130000925 | 1 |
| 13 | Wire P35*1000 | 27200103941 | 1 |
| 14 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 16 | Wire | 27370102071 | 1 |
| 17 | ELEK controller | 4130001112 | 1 |
| 18 | Wire p35*2300 | 27370101201 | 1 |
| 19 | Wire | 27200104471 | 1 |
| 20 | Control box wire P15*1400 | 27200104491 | 1 |
