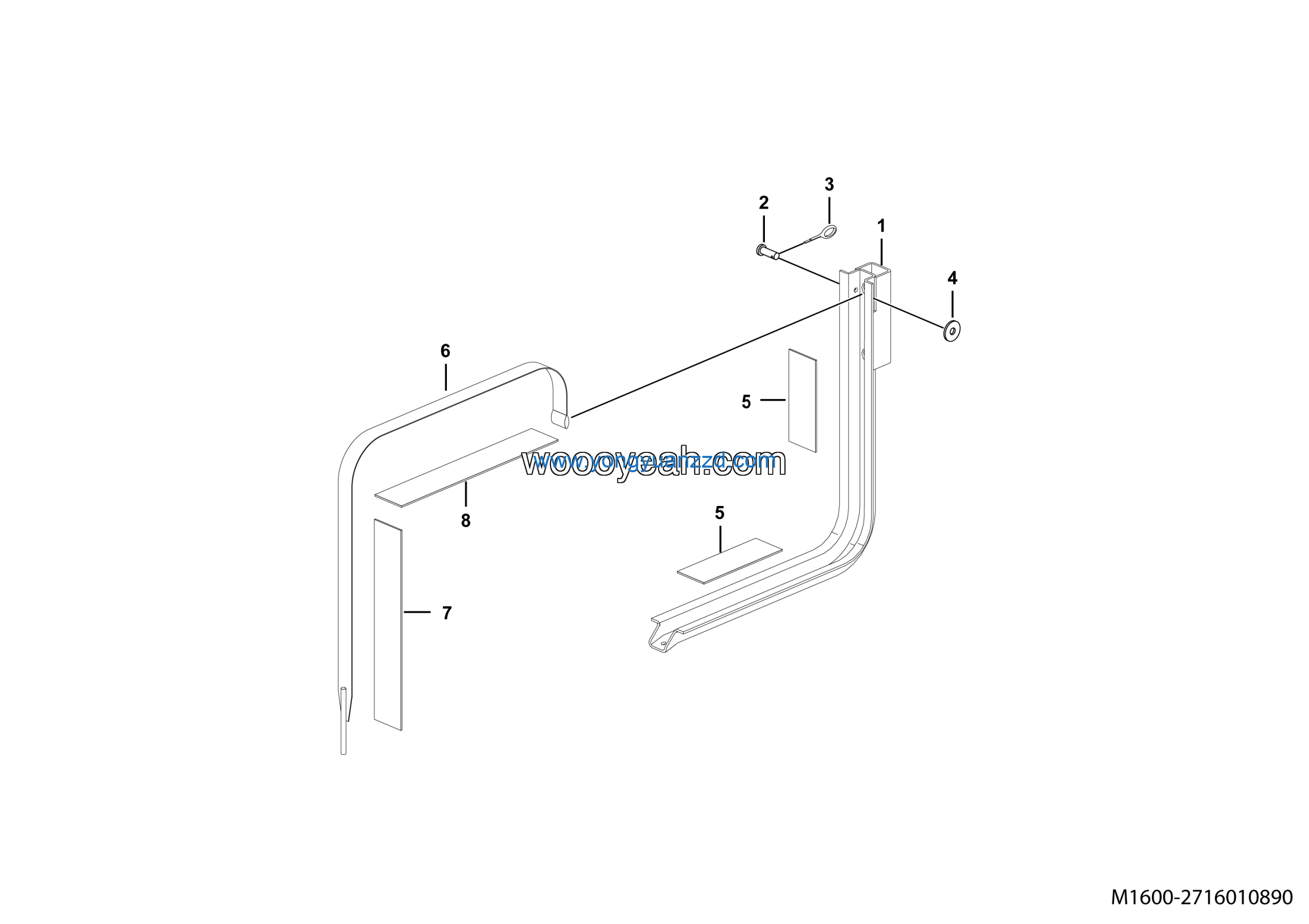

LGMG MT86H Mine Truck – Tank bracket assy – M1600-2716010890
Category: Mine Truck > MT86H > MT86H
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydraulic oil tank bracket | 27160108861 | 1 |
| 2 | Pin GB882-B12*90EpZn-35 | 4016000297 | 1 |
| 3 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 1 |
| 4 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 5 | Flap | 4110000122 | 2 |
| 6 | Band assembly | 27160108891 | 1 |
| 7 | Rubber belt | 27160108881 | 1 |
| 8 | Fuel tank tie spacer sheath | 4110000969 | 1 |
