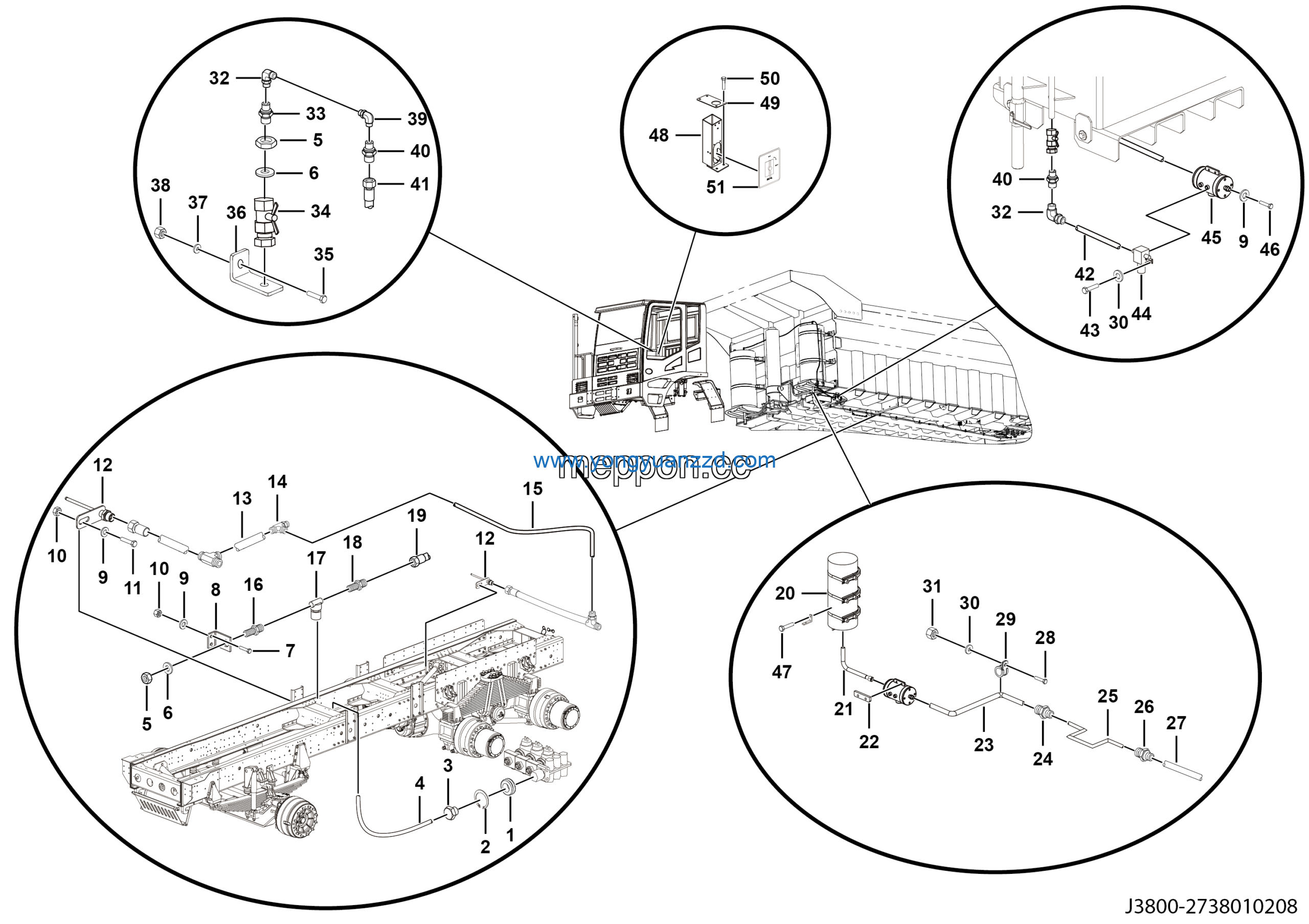

LGMG MT86H Mine Truck – Tyre spray assembly – J3800-2738010208
Category: Mine Truck > MT86H > M086HWD30
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10EpZn-8 | 4013000007 | 10 |
| 2 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 3 | Spray-head assembly | 27380101591 | 4 |
| 4 | Mid axle colding water pipe | 27380101011 | 1 |
| 5 | Three way jointm18-m18-m18 | 27100100561 | 1 |
| 6 | Rear axle colding water pipe | 27380100761 | 1 |
| 7 | Direct head | 27100102371 | 1 |
| 8 | Relief valve | 4120002065 | 1 |
| 9 | M22-m18 direct head | 27100100471 | 1 |
| 10 | Hose assembly m18-11550 | 27380101051 | 1 |
| 11 | Elastic element NG8 | 4120000197 | 1 |
| 12 | Water tank assembly | 27380101921 | 1 |
| 13 | Hose assembly M18-500 | 27380100631 | 1 |
| 14 | Mounting plate | 27380100601 | 1 |
| 15 | Water tank water pipe | 27380100281 | 1 |
| 16 | Adapter M22-M22 | 27380100061 | 1 |
| 17 | The water pipe | 27380101201 | 1 |
| 18 | Adapter M18-M22 | 27100102951 | 1 |
| 19 | Hose assembly m18-9500 | 27380101131 | 1 |
| 20 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 16 |
| 21 | Clamp | 26370001911 | 9 |
| 22 | Clip spring NG8 | 4120000196 | 1 |
| 23 | Washer GB97.1-8EpZn-300HV | 4015000072 | 11 |
| 24 | Fuse base M8 | 27140102891 | 9 |
| 25 | Combination joint LGB143-01810 | 4041001063 | 2 |
| 26 | Connector g1/2-m18 | 27380100821 | 2 |
| 27 | Butterfly ball valve G1/2 | 4120002026 | 2 |
| 28 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 2 |
| 29 | PLATE | 27380101761 | 1 |
| 30 | Washer GB97.1-6-300HV | 4015000230 | 2 |
| 31 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 32 | Jointm18-m18 | 27380101751 | 1 |
| 33 | Nut seat NG8 | 4120000194 | 1 |
| 34 | Connector G1/2-M18 | 27100105641 | 2 |
| 35 | Hose assembly m18-10500 | 27380101121 | 1 |
| 36 | Hose assembly m18-650 | 27380102021 | 1 |
| 37 | Bolt GB5783-M8*12EpZn-8.8 | 4011000180 | 2 |
| 38 | Pressure reducing valve | 4120000850 | 1 |
| 39 | Filter assembly | 27380100862 | 1 |
| 40 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 41 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 42 | Bracket | 27160110431 | 1 |
| 43 | Plate | 27160111261 | 1 |
| 44 | Flexible pipe ng8-nw6-m14-2100 | 27380102071 | 1 |
| 45 | Bolt GB16674.1-M6*12EpZn-8.8 | 4011010234 | 4 |
| 46 | Butterfly valves | 27220105861 | 1 |
| 47 | Thin nut M18*1.5 | 4120000431 | 3 |
| 48 | Washer JB982-22 | 4015000092 | 6 |
| 49 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 50 | Tyre spray assembly | 27380101941 | 2 |
| 51 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
