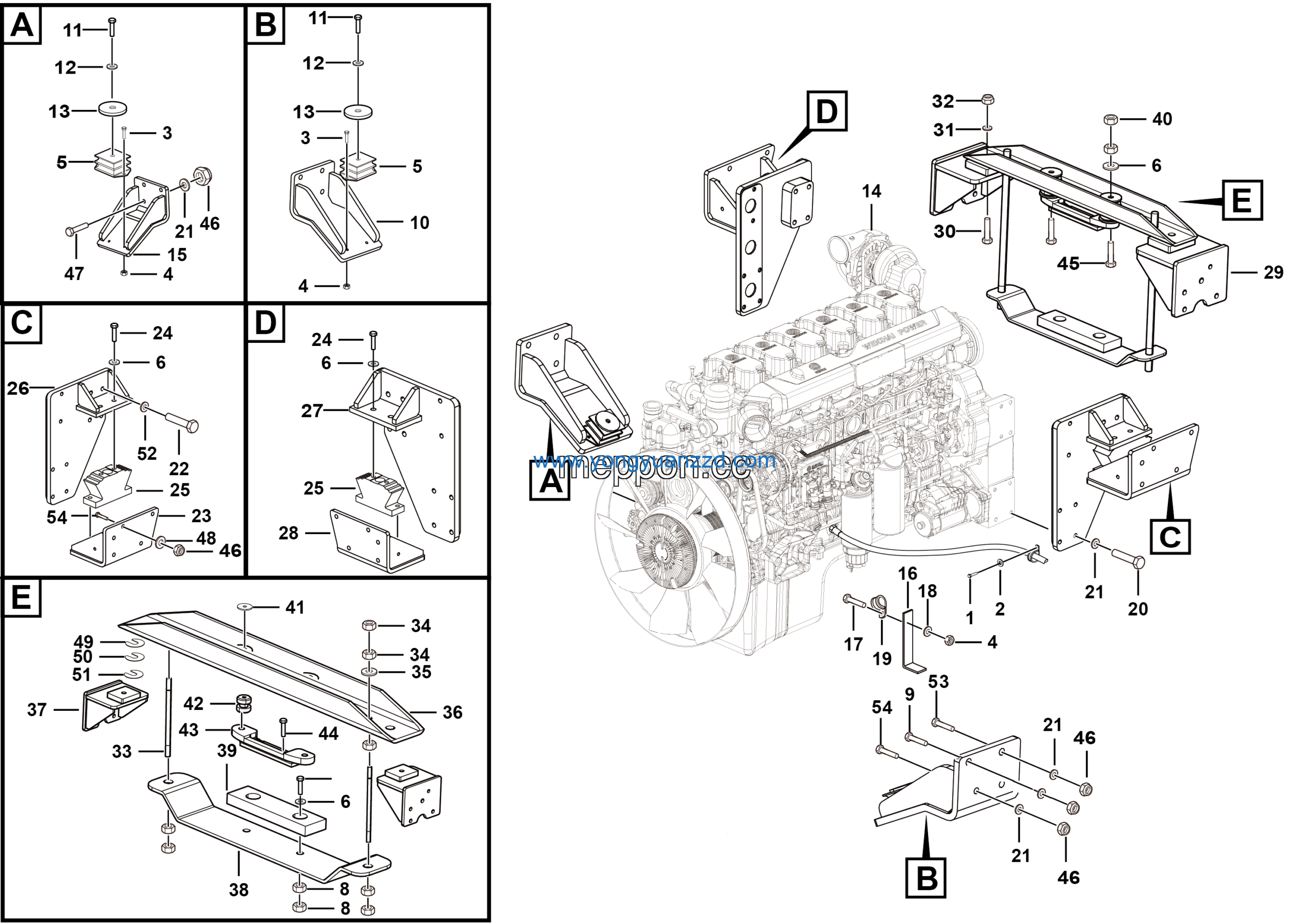

LGMG MT86L Mine Truck – Engine assembly – A0100-2701011880
Category: Mine Truck > MT86L > M086LWA05
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Engine front right leg | 27010109622 | 1 |
| 2 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 3 | Bolt GB5786-M12*1.5*30flZnyc-12.9-480 | 4011010566 | 2 |
| 4 | Trimmed gasket | 27010106821 | 2 |
| 5 | Wp13g480e310 | 4110702416 | 1 |
| 6 | Engine front left leg | 27010109592 | 1 |
| 7 | Plate | 27010112711 | 1 |
| 8 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 1 |
| 9 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 10 | Clamp | 26370001911 | 1 |
| 11 | BOLT GB5783-M10*20EPZN-8.8 | 4110000081 | 1 |
| 12 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 16 |
| 13 | Washer GB1230-14EpZn-45 | 4015000358 | 26 |
| 14 | Bolt GB5782-M16*90flZnyc-12.9-480 | 4011010646 | 8 |
| 15 | SIGN | 27010118741 | 1 |
| 16 | Bolt GB5786-M16*1.5*45flZnyc-12.9-480 | 4011010535 | 8 |
| 17 | RR engine mount cushion | 4110000296 | 2 |
| 18 | SIGN | 27010117291 | 1 |
| 19 | SIGN | 27010117321 | 1 |
| 20 | PLATE | 27010118761 | 1 |
| 21 | SIGN | 27010118781 | 1 |
| 22 | No longer used | 4015000152 | 1 |
| 23 | Bolt GB5782-M20*90flZnyc-12.9-480 | 4011010576 | 2 |
| 24 | Washer GB96.1-20EpZn-300HV | 4015000206 | 2 |
| 25 | Nut GB6185.1-M20flZnyc-12-480 | 4013010256 | 2 |
| 26 | Stud | 27010115201 | 2 |
| 27 | Nut GB6170-M22EpZn-8 | 4013000138 | 10 |
| 28 | Washer GB97.1-22EpZn-300HV | 4015000184 | 2 |
| 29 | Upper connect plate assembly | 27010115171 | 1 |
| 30 | FRAME | 27010118791 | 1 |
| 31 | Supprrt | 27010115191 | 1 |
| 32 | Plate | 27050103981 | 1 |
| 33 | Bolt GB5783-M8*35EpZn-12.9 | 4011000857 | 4 |
| 34 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 8 |
| 35 | Damper plate | 27050103881 | 4 |
| 36 | Auxiliary support shock absorber 44003-13 | 4190001505 | 2 |
| 37 | Intermediate shoe | 27050104121 | 1 |
| 38 | Bolt GB5783-M16*45EpZn-8.8 | 4011000205 | 2 |
| 39 | Bolt GB5782-M16*130flZnyc-12.9-480 | 4011010567 | 2 |
| 40 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 12 |
| 41 | Bolt GB5782-M14*75flZnyc-12.9-480 | 4011010600 | 4 |
| 42 | Washer GB96.1-14EpZn-300HV | 4015000188 | 4 |
| 43 | Adjustment gasket | 27010115491 | 1 |
| 44 | Nut GB6185.1-M8EpZn-10 | 4013010132 | 4 |
| 45 | Adjustment gasket | 27010115501 | 1 |
| 46 | Adjustment gasket | 27010115511 | 1 |
| 47 | Washer GB1230-16EpZn-45 | 4015000001 | 8 |
| 48 | BOLT GB5783-M14*65flZnyc-12.9-480 | 4011010546 | 3 |
| 49 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 4 |
| 50 | FR suspension cushion | 4110000331 | 2 |
| 51 | Washer GB97.1-16EpZn-300HV | 4015000181 | 29 |
| 52 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 5 |
| 53 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 12 |
| 54 | Bolt GB5783-M14*55flZnyc-12.9-480 | 4011010548 | 1 |
