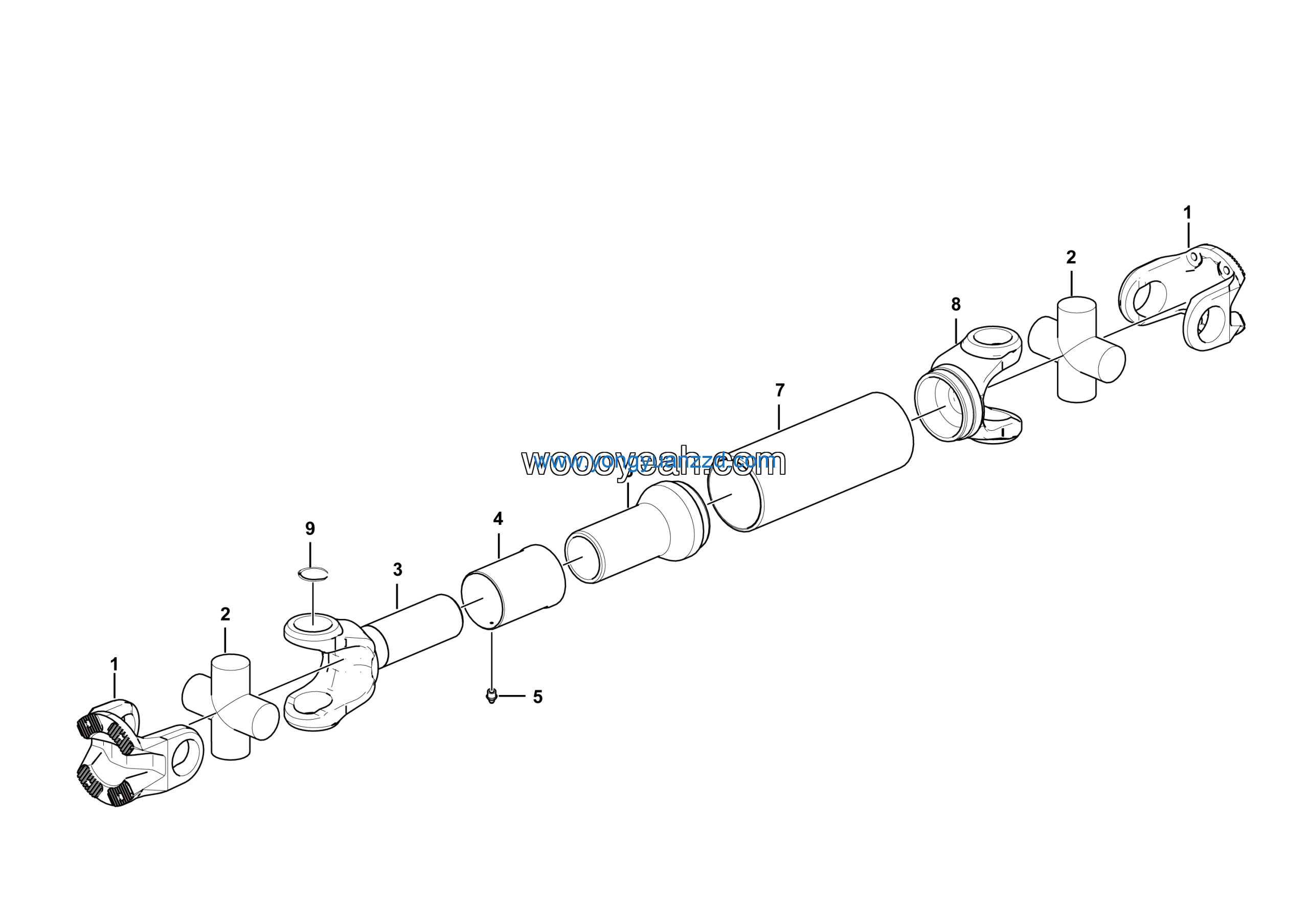

LGMG MT86M Mine Truck – Drive shaft assembly – F0900-4110001738
Category: Mine Truck > MT86M > M086MWA73
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Grease nipple JB/T7940.1-M10*1 | 4110001047006 | 1 |
| 2 | Mid flange 49100-Y3420-300-A | 4110001047007 | 1 |
| 3 | Nut 991.1431.0100-2204052-F | 4110000956006 | 1 |
| 4 | Flange fork 68011401111 | 4110001048001 | 1 |
| 5 | Cross shaft assy 680168165 | 4110001048003 | 2 |
| 6 | Snap ring 68011401201 | 4110001048002 | 4 |
| 7 | Universal joint fork 68011401301 | 4110001048009 | 1 |
| 8 | Shaft tube φ140*5 | 4110000956001 | 1 |
| 9 | Mid shaft 656-2202011-R | 4110001047004 | 1 |
| 10 | Mid support 0100-75QY-00 | 4110001047002 | 2 |
| 11 | Mid support YDZC-75-250-001 | 4110001047003 | 1 |
| 12 | Washer 991.1431.0100-2204054-D | 4110001047005 | 2 |
