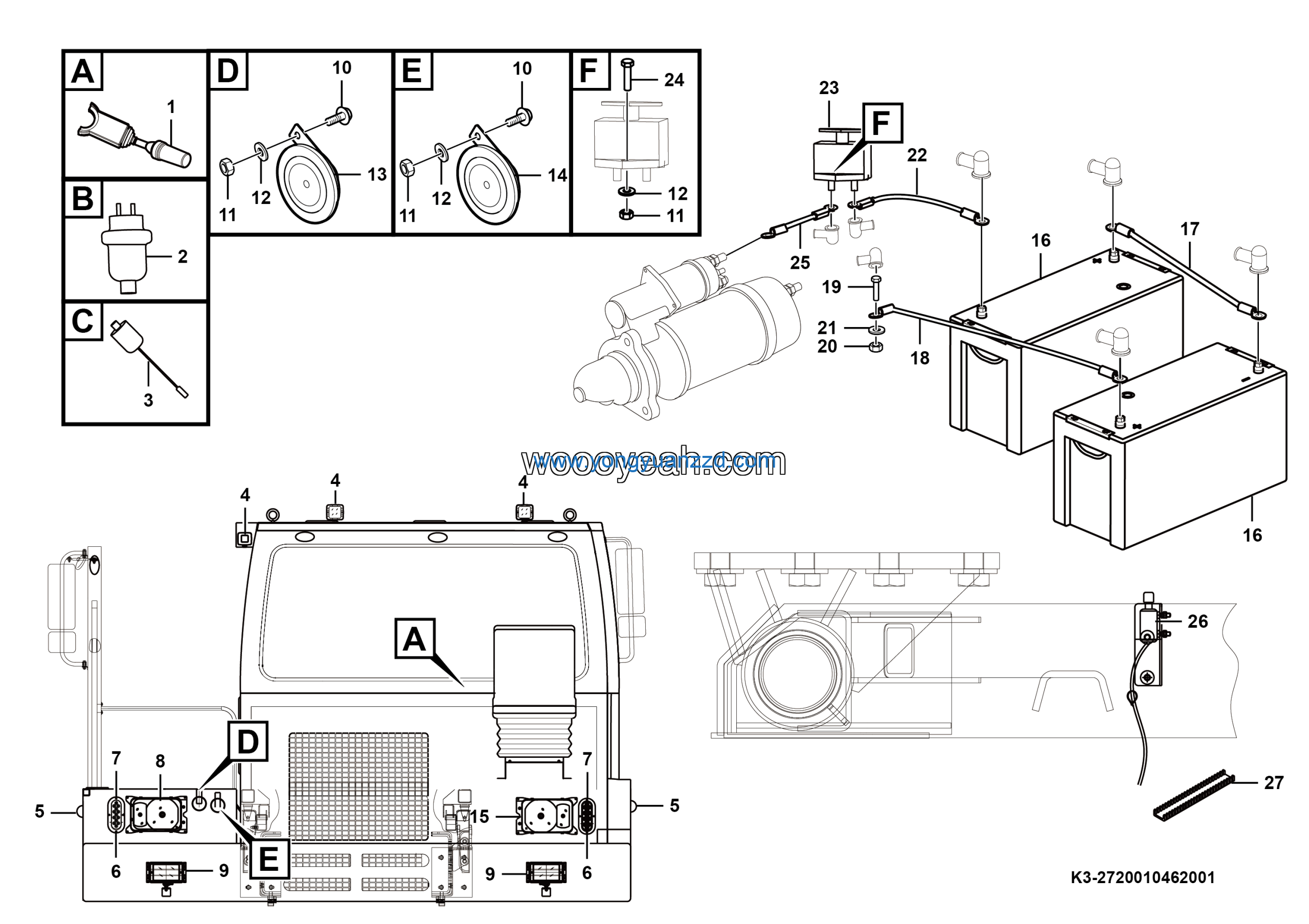

LGMG MT88 Mine Truck – Chassis electrical system 1 – K3-2720010462001
Category: Mine Truck > MT88 > MT88
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 2 | Nut GB6170-M8EpZn-8 | 4013000033 | 23 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 25 |
| 4 | Monophonic disc wooFer（treble） | 4130000028 | 1 |
| 5 | Monophonic disc woofer | 4130000029 | 1 |
| 6 | FR headlamp（LH） | 4130000249 | 1 |
| 7 | Battery 6-QW-180MF | 4130000582 | 2 |
| 8 | Accumulator series wire P50*160 | 27200103981 | 1 |
| 9 | Accumulator ground lead P50*550 | 27200104481 | 1 |
| 10 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 1 |
| 11 | Manual switch 35240020200 | 4130000663 | 1 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 13 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 14 | Accumulator to main switch power wire P50*450 | 27200103971 | 1 |
| 15 | Power switch 37030020010 | 4130000307 | 1 |
| 16 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 6 |
| 17 | Starting motoer wire P50*3900 | 27200104021 | 1 |
| 18 | Cargo lifting switch XJK-010-09 | 4130000641 | 1 |
| 19 | String casing | 27140105021 | 1 |
| 20 | Air pressure sensor YG2221S（M16*1.5） | 4130000012 | 2 |
| 21 | Stop lamp switch YK209KLA | 4130000492 | 1 |
| 22 | RR working lamp 1GA 996.506-52 | 4130000576 | 3 |
| 23 | Side steering lamp 43-3001A | 4130000343 | 2 |
| 24 | LED FR steering lamp | 4130000252 | 2 |
| 25 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 26 | FR headlamp（RH） | 4130000250 | 1 |
| 27 | FR fog lamp | 4130000664 | 2 |
