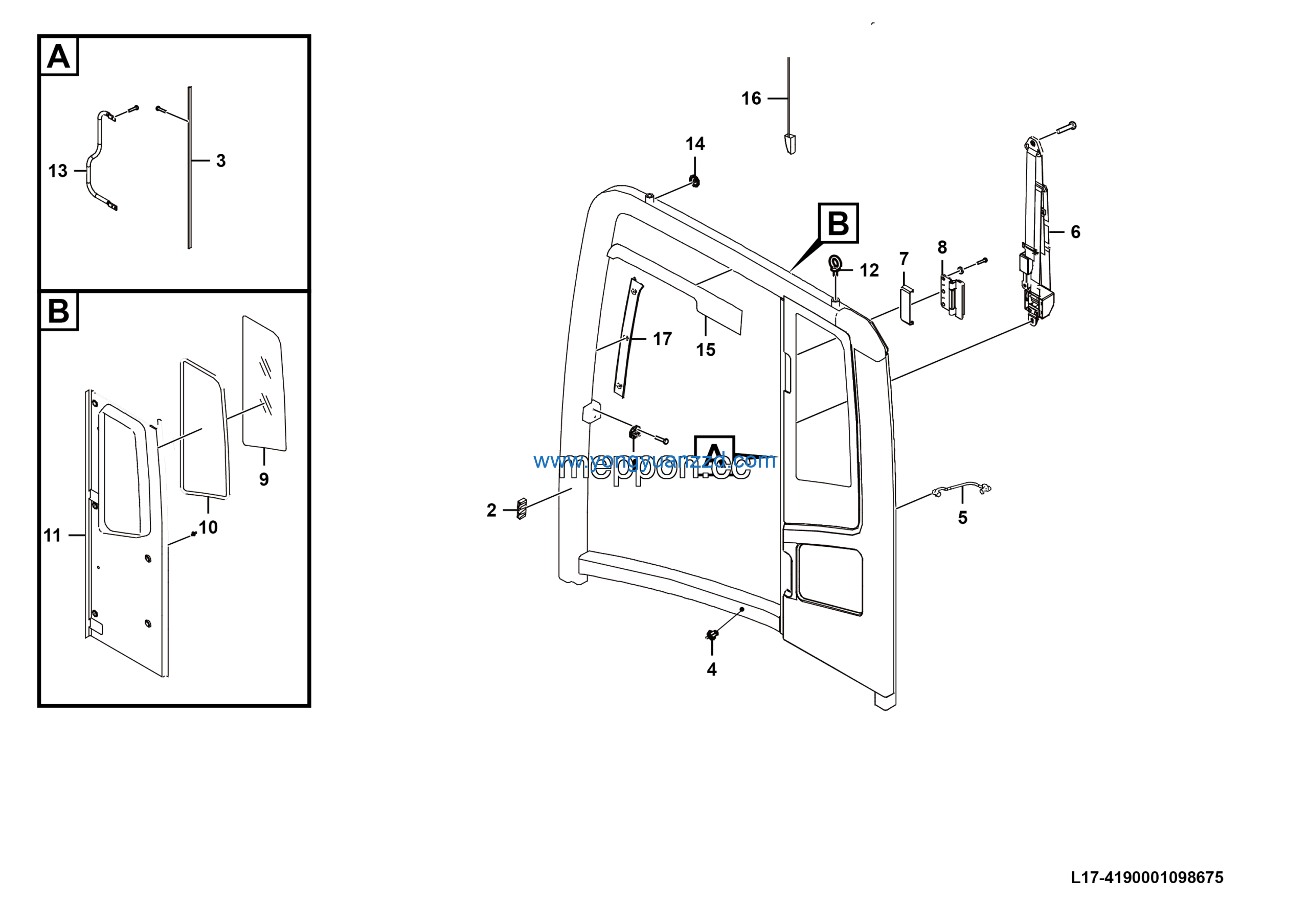

LGMG MT88 Mine Truck – Left cover assembly WS33002550230 – L17-4190001098675
Category: Mine Truck > MT88 > MT88
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Anchor plate | 4190001098685 | 1 |
| 2 | LH side enclosure trim assy WS33002550002 | 4190001098686 | 1 |
| 3 | Ring | 4190001098687 | 2 |
| 4 | Handrail assy on the car WS33002550075 | 4190001098688 | 1 |
| 5 | Ring | 4190001098689 | 1 |
| 6 | LH side SISU board assy WS33002550023 | 4190001098690 | 1 |
| 7 | Antenna assy WS33002550145 | 4190001098691 | 1 |
| 8 | Door side front column trim assy WS33002550133 | 4190001098692 | 1 |
| 9 | Lock | 4190001098676 | 1 |
| 10 | Door limit block（concave）assy WS33002550237 | 4190001098677 | 1 |
| 11 | Strip assy WS33002550143 | 4190001098678 | 1 |
| 12 | Door light switch assy WS33002550057 | 4190001098679 | 1 |
| 13 | Gate limit retractor assy WS33002550153 | 4190001098680 | 1 |
| 14 | Safety belt assy WS33002550059 | 4190001098681 | 1 |
| 15 | Cover | 4190001098682 | 2 |
| 16 | Hinge | 4190001098683 | 2 |
| 17 | Left rear glass WS33002550091 | 4190001098684 | 1 |
