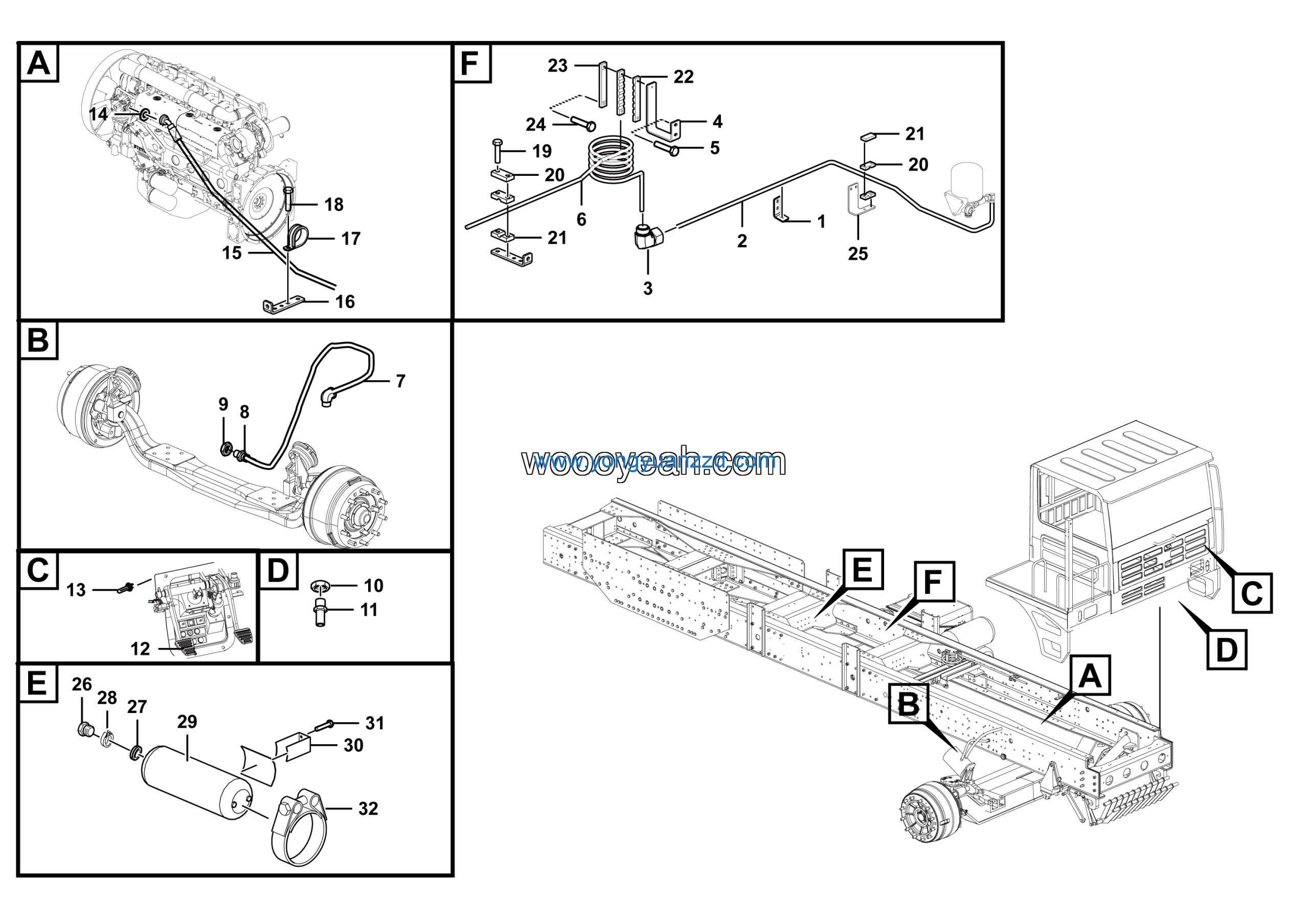

LGMG MT88 Mine Truck – Service brake assembly – J3-2710010658003
Category: Mine Truck > MT88 > MT88
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Straight bulkhead joint NG6/2-M16*1.5 | 4120000233 | 2 |
| 2 | Thin nut M16*1.5 | 4120000234 | 2 |
| 3 | Foot brake valve | 4120000133 | 1 |
| 4 | M14-NPT1/8 bulkhead union | 27100106211 | 1 |
| 5 | Washer | 27010100551 | 1 |
| 6 | Wired hose assembly | 27100105911 | 1 |
| 7 | Steel tube support | 27100105871 | 2 |
| 8 | Pipe clamp | 26370001941 | 1 |
| 9 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 10 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 6 |
| 11 | Bracket | 27100105951 | 1 |
| 12 | Rubber fixed chunk | 27100104181 | 6 |
| 13 | Fixed plate | 27100104191 | 3 |
| 14 | Rubber clip | 27100105751 | 2 |
| 15 | Plate | 27100105741 | 1 |
| 16 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 17 | Bracket | 27100105771 | 1 |
| 18 | Nut seat NG12 | 4120000190 | 19 |
| 19 | Elastic element NG12 | 4120000193 | 19 |
| 20 | Clip spring NG12 | 4120000192 | 19 |
| 21 | Air reservoir 30L（246） | 4120000143 | 1 |
| 22 | Tube assembly of air dryer | 27100106571 | 1 |
| 23 | Bracket of 30L reservior(246) | 27100106321 | 1 |
| 24 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 6 |
| 25 | Hose clamp φ246-φ250 | 4120000177 | 2 |
| 26 | M22-M22 Rectangular joint | 27100105931 | 1 |
| 27 | Spiral steel pipe bracket | 27100106591 | 1 |
| 28 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 2 |
| 29 | Spiral steel pipe | 27100106351 | 1 |
| 30 | TRACHEAL | 27100103591 | 2 |
| 31 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 32 | Nut M18 | 4120000230 | 5 |
