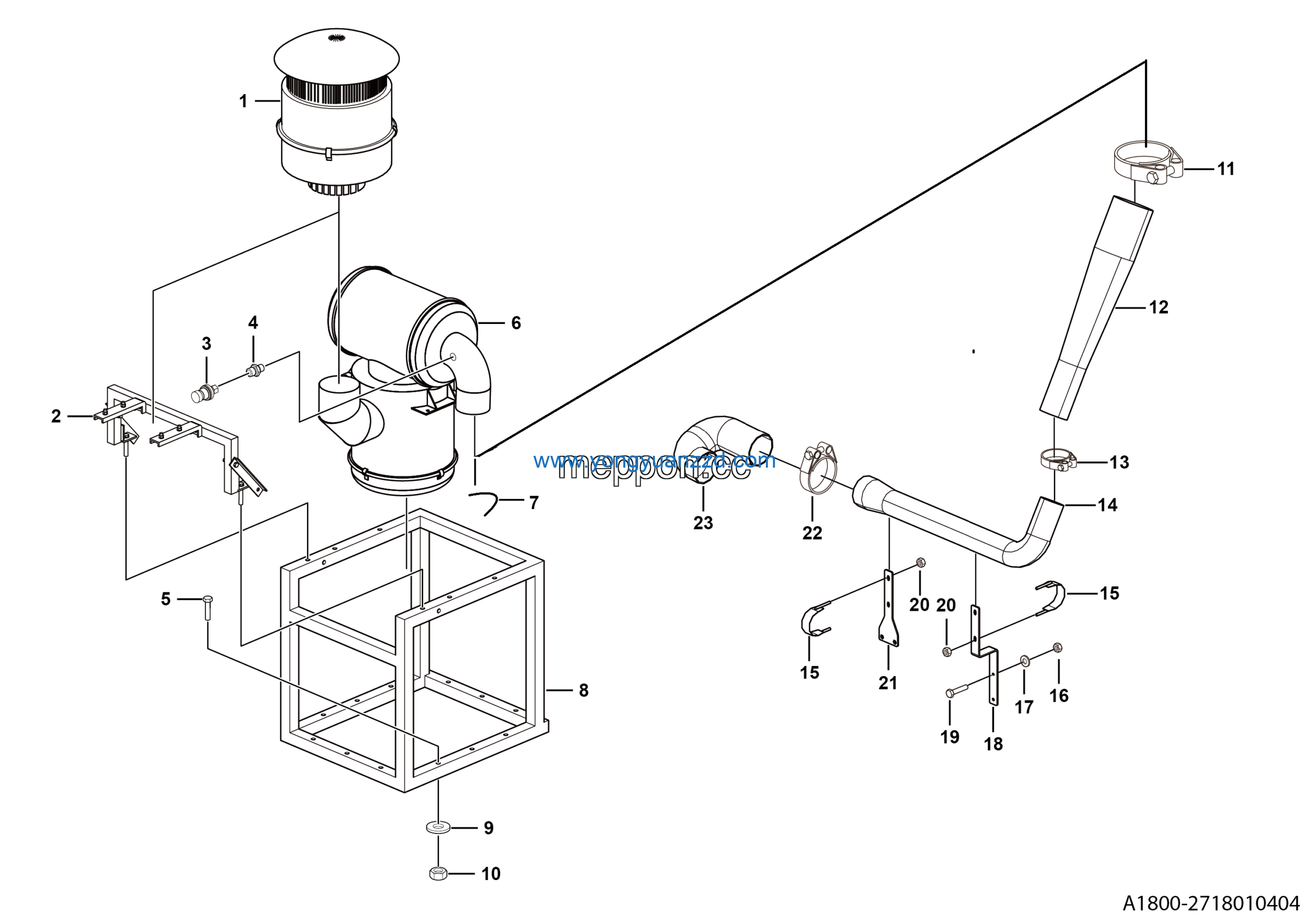

LGMG MT90S Mine Truck – Air filter assy – A1800-2718010404
Category: Mine Truck > MT90S > M086HWG10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 10 |
| 2 | T-Hoop φ155-φ163 | 4190703913 | 1 |
| 3 | GEARBOX SUPPORT STAND PLATE | 27180104051 | 1 |
| 4 | No longer used | 4019010204 | 1 |
| 5 | CARGO TANK ASSEMBLY | 27180104071 | 1 |
| 6 | M18-M18 | 27180104101 | 2 |
| 7 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 9 | LEFT CARLING | 27180104091 | 1 |
| 10 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 11 | Prefilter assy | 4110000127 | 1 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 13 | Right rear support plate | 27180104082 | 1 |
| 14 | T-Hoop φ132-φ140 | 4190703914 | 2 |
| 15 | Cab fliping hydraulic assembly | 27180104061 | 1 |
| 16 | Prefilter holder 4190000172 | 4190000172 | 1 |
| 17 | Vacuum level alarm | 4110001427 | 1 |
| 18 | Connecting joint | 4110000037 | 1 |
| 19 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 10 |
| 20 | Oil bath air filter | 4190000153 | 1 |
| 21 | Wire | 27200107621 | 1 |
| 22 | Bracket 4190000171 | 4190000171 | 1 |
| 23 | Washer GB97.1-12EpZn-300HV | 4015000168 | 20 |
