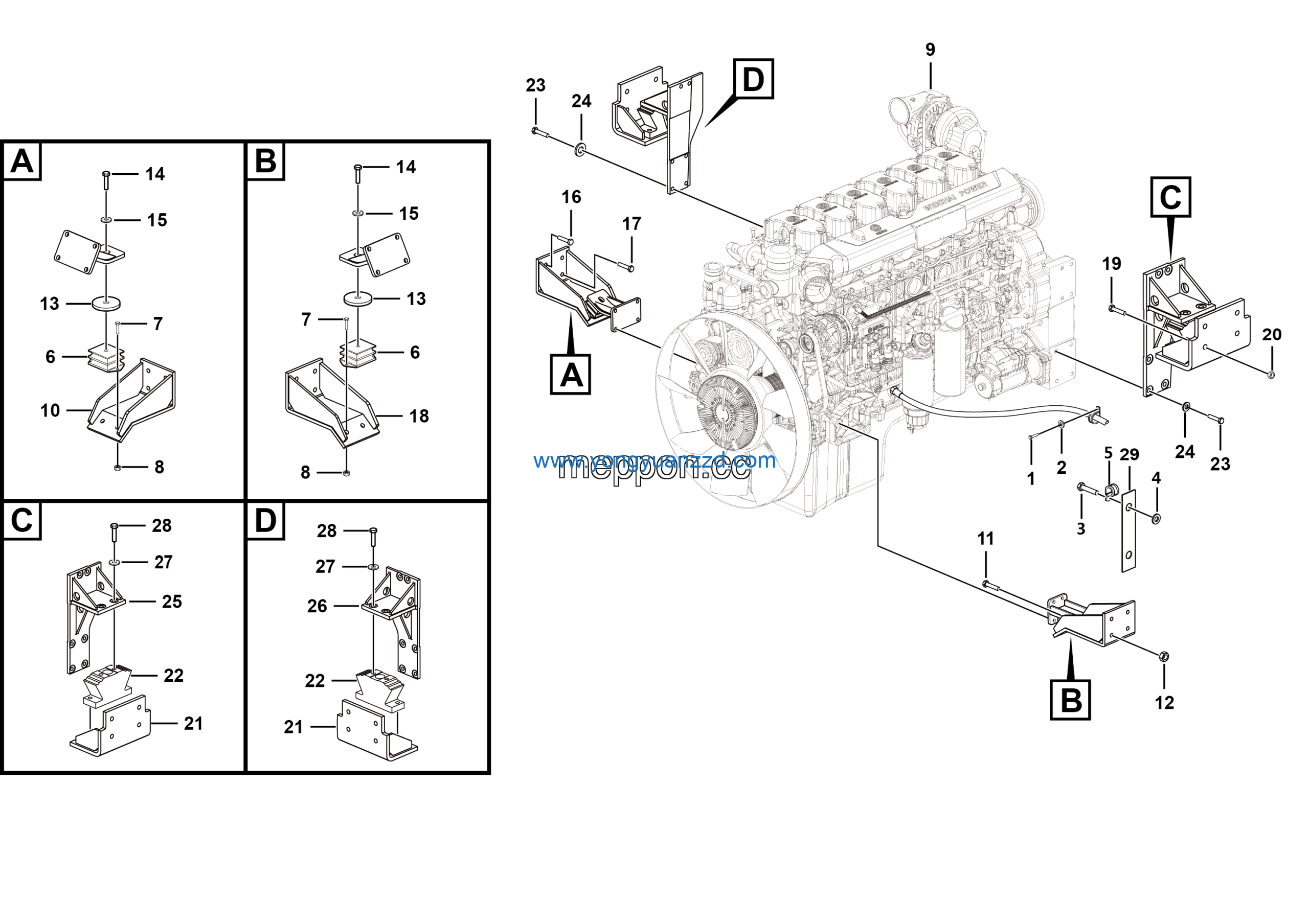

LGMG MT90S Mine Truck – Engine assy – A0100-2701011637
Category: Mine Truck > MT90S > M086HWG10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Engine front right leg | 27010109622 | 1 |
| 2 | BOLT GB5783-M14*65flZnyc-12.9-480 | 4011010546 | 3 |
| 3 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
| 4 | Trimmed gasket | 27010106821 | 2 |
| 5 | Bolt GB5786-M12*1.5*30flZnyc-12.9-480 | 4011010566 | 2 |
| 6 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 7 | Bolt GB5783-M14*55flZnyc-12.9-480 | 4011010548 | 1 |
| 8 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 4 |
| 9 | Engine front left leg | 27010109592 | 1 |
| 10 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 8 |
| 11 | BOLT GB5783-M10*20EPZN-8.8 | 4110000081 | 1 |
| 12 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 8 |
| 13 | Engine back seat | 27010101732 | 2 |
| 14 | RR engine mount cushion | 4110000296 | 2 |
| 15 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 12 |
| 16 | Washer GB1230-14EpZn-45 | 4015000358 | 12 |
| 17 | ENGINE LEFT REAR FRAME | 27010101763 | 1 |
| 18 | ENGINE BACK RIGHT RAME | 27010101813 | 1 |
| 19 | Washer GB1230-16-45 | 4015010101 | 8 |
| 20 | Bolt GB5786-M16*1.5*45flZnyc-12.9-480 | 4011010535 | 8 |
| 21 | Plate | 27010112711 | 1 |
| 22 | No longer used | 4015000152 | 1 |
| 23 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 1 |
| 24 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 25 | Clamp | 26370001911 | 1 |
| 26 | FR suspension cushion | 4110000331 | 2 |
| 27 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 28 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 5 |
| 29 | Engine WP12.430E40 | 4110702322 | 1 |
