LGMG MT95 Mine Truck – Engine block pre-assy 1000352261 – C2-4110001117057
Category: Mine Truck > MT95 > M0950WA03

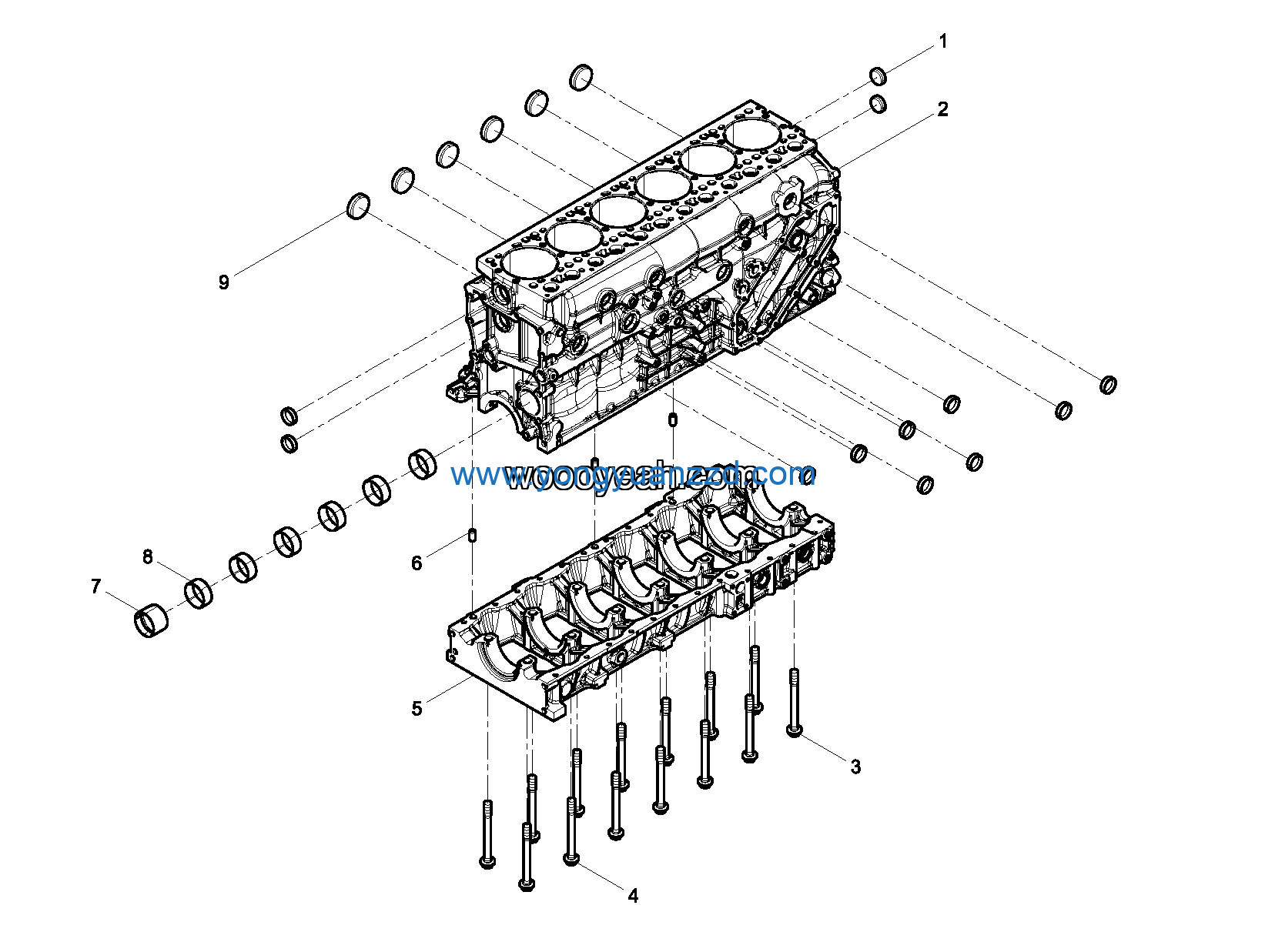

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plug 40*12 612639000030 | 4129900261030 | 12 |
| 2 | Cylinder block 612630010864 | 4110001117060 | 1 |
| 3 | Main bearing bolt 612630010057 | 4110001117061 | 11 |
| 4 | Main bearing bolt 612630010169 | 4110001117062 | 3 |
| 5 | Crankcase 612630010394 | 4110001117063 | 1 |
| 6 | Pin 612639000093 | 4110001117064 | 3 |
| 7 | Camshaft bush 612630010075 | 4110001050002 | 1 |
| 8 | Camshaft bush 61560010029 | 4110000001034 | 6 |
| 9 | Plug 60*14 612639000031 | 4110001117065 | 6 |
