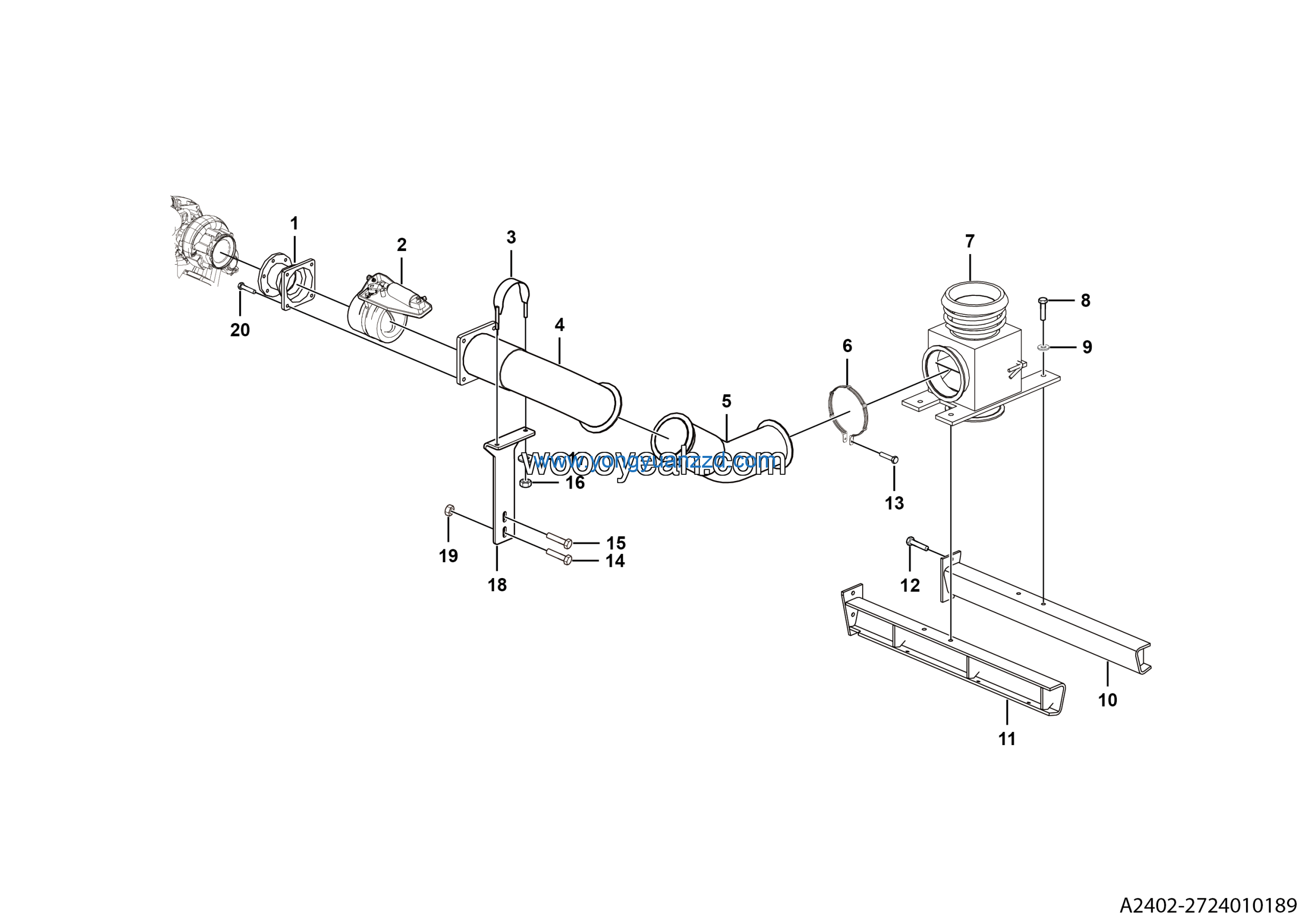

LGMG MT95 Mine Truck – Exhaust and heating system – A2402-2724010189
Category: Mine Truck > MT95 > M0950WE00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Right plate | 27240102131 | 1 |
| 2 | Left plate | 27240102111 | 1 |
| 3 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 4 |
| 4 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 5 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 1 |
| 6 | Bolt GB5783-M12*55EpZn-8.8 | 4011000254 | 1 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 9 | Frame | 27240102101 | 1 |
| 10 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 10 |
| 11 | JOINT NIPPLE | 27240101121 | 1 |
| 12 | Bolt GB16674.1-M10*120EpZn-8.8 | 4011000601 | 4 |
| 13 | Exhaust brake butterfly valve | 4110000157 | 1 |
| 14 | PLATE | 27240102051 | 1 |
| 15 | Upr exhaust pipe | 4110001385 | 1 |
| 16 | Lower exhaust pipe | 4110001386 | 1 |
| 17 | Clamp | 4110000768 | 2 |
| 18 | Buffer box | 4110001410 | 1 |
| 19 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 20 | Washer GB96.1-12EpZn-300HV | 4015000186 | 10 |
