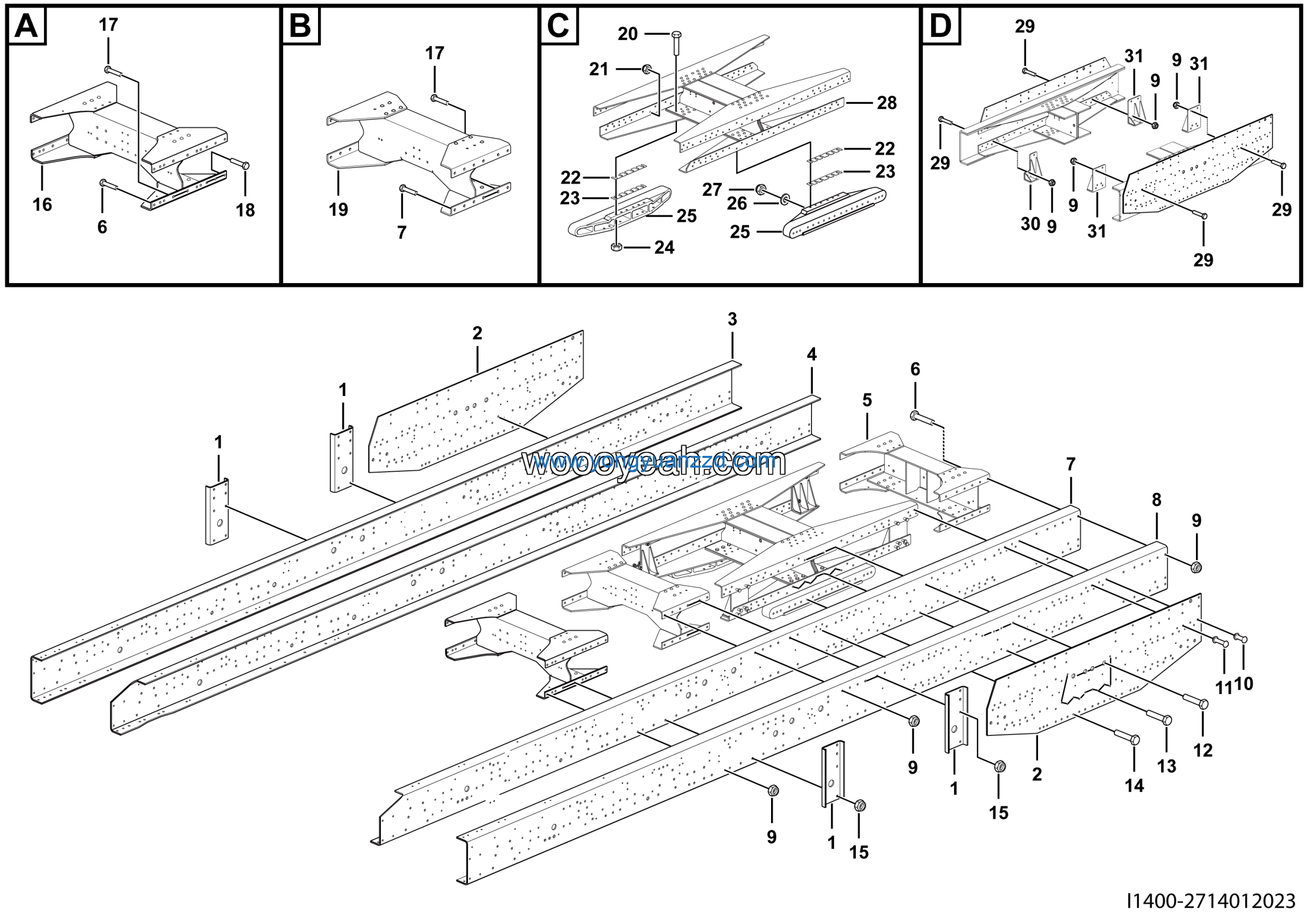

LGMG MT95 Mine Truck – Frame – I1400-2714012023
Category: Mine Truck > MT95 > M0950WA30
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rivet GB867-14*52 | 4019000115 | 8 |
| 2 | Rivet GB867-14*65 | 4019000120 | 80 |
| 3 | Bolt GB5782-M14*50EpZn-10.9 | 4011000988 | 8 |
| 4 | Bolt GB5782-M14*60EpZn-10.9 | 4011000539 | 20 |
| 5 | Bolt GB5783-M16*55EpZn-12.9 | 4011000827 | 36 |
| 6 | Nut GB889.2-M18*1.5EpZn-10 | 4013000252 | 16 |
| 7 | Beam | 27140120372 | 1 |
| 8 | BOLT GB5785-M18*1.5*65EpZn-10.9 | 4011010202 | 16 |
| 9 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 5 |
| 10 | Beam assembly | 27140113101 | 1 |
| 11 | Superstructure connect plate | 27140104751 | 4 |
| 12 | Bolt GB5785-M16*1.5*75EpZn-10.9 | 4011010151 | 12 |
| 13 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 28 |
| 14 | Trimmed gasket | 27140115331 | 2 |
| 15 | Trimmed gasket | 27140115341 | 2 |
| 16 | Nut GB6171-M16*1.5-10 | 4013000196 | 12 |
| 17 | Middle seat | 27140104832 | 2 |
| 18 | Washer GB1230-16EpZn-45 | 4015000001 | 48 |
| 19 | Nut GB6185.1-M16EpZn-12 | 4013010183 | 36 |
| 20 | Balance shaft reinforce transverse beam assembly | 27140120303 | 1 |
| 21 | Bolt GB5782-M16*70EpZn-10.9 | 4011000824 | 23 |
| 22 | Side attaching plate | 27140120342 | 2 |
| 23 | Seat one | 27140119051 | 1 |
| 24 | Seat | 27140119021 | 3 |
| 25 | Right carling | 27140120273 | 1 |
| 26 | Right reinforce carling | 27140120263 | 1 |
| 27 | Final beam assembly | 27140120281 | 1 |
| 28 | Bolt GB5782-M16*50EpZn-10.9 | 4011010149 | 36 |
| 29 | Left reinforce carling | 27140120253 | 1 |
| 30 | Left carling | 27140120243 | 1 |
| 31 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 82 |
