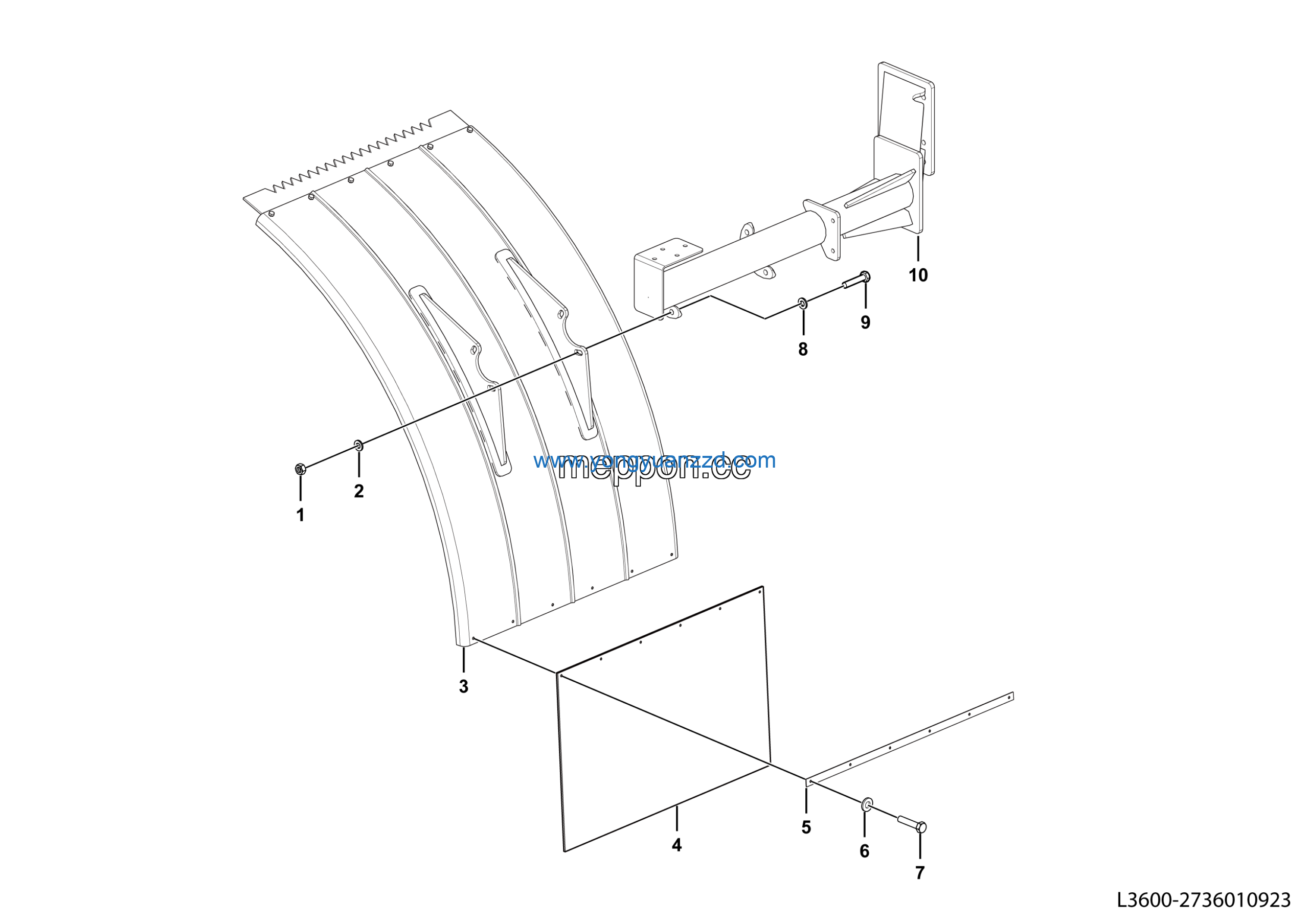

LGMG MT95 Mine Truck – Left mudguard tile assembly – L3600-2736010923
Category: Mine Truck > MT95 > M0950WA10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Left bracket | 27360109131 | 1 |
| 2 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 3 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 4 | Assembly | 27360109171 | 1 |
| 5 | Mudflap | 27360109251 | 1 |
| 6 | Plate | 27360109261 | 1 |
| 7 | Washer GB97.1-6EpZn-300HV | 4015000207 | 6 |
| 8 | Bolt GB5783-M6*16EpZn-8.8 | 4011000289 | 1 |
| 9 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
| 10 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
