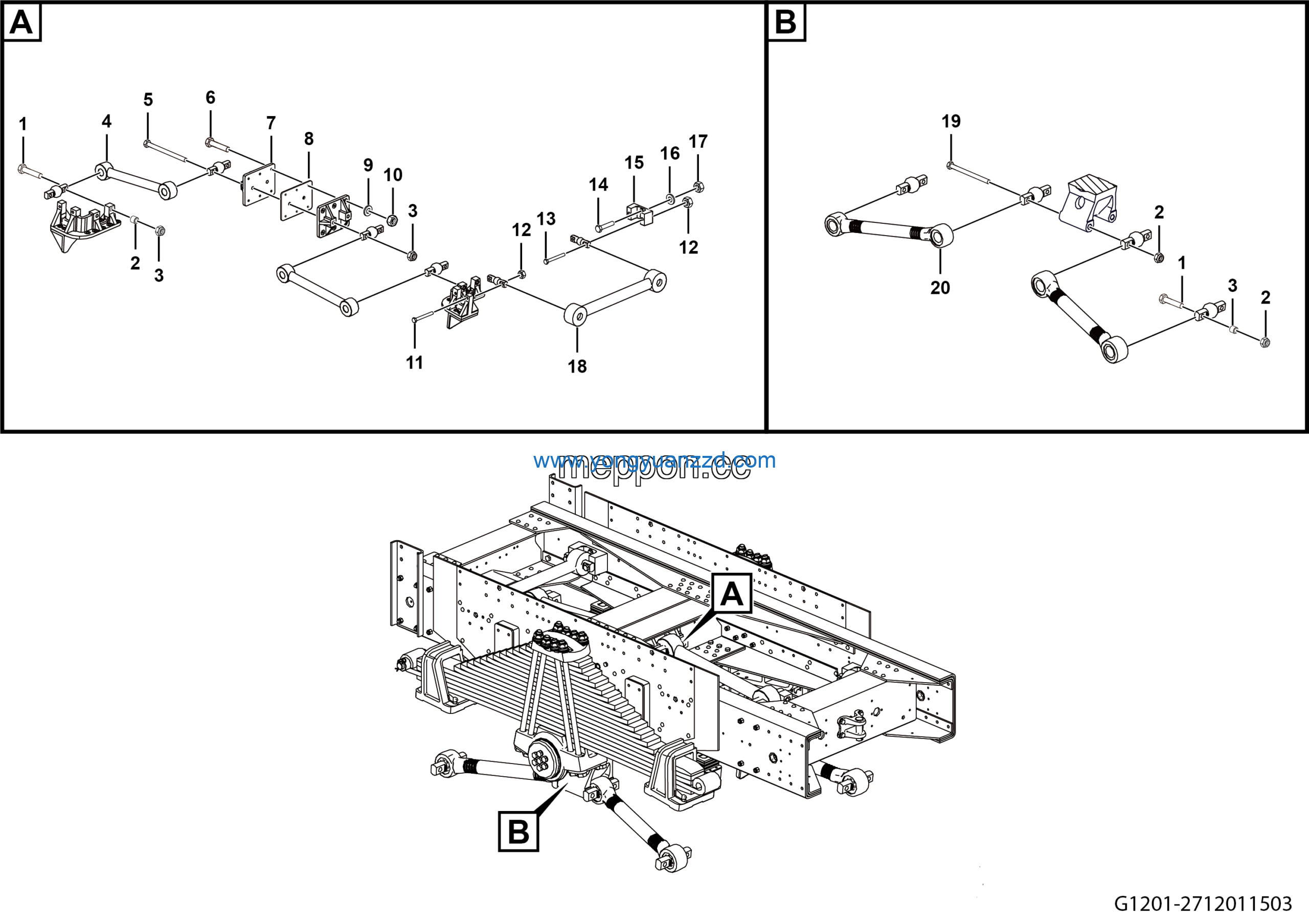

LGMG MT95D Mine Truck – Rear thrust rod installation assy – G1201-2712011503
Category: Mine Truck > MT95D > M095DWA40
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 2 | Bolt GB5785-M24*1.5*130EpZn-12.9 | 4011010463 | 4 |
| 3 | Nut GB2148-M24*1.5EpZn-12 | 4013010195 | 8 |
| 4 | Bolt GB5785-M24*1.5*200EpZn-12.9 | 4011010462 | 4 |
| 5 | Bolt GB5785-M16*1.5*75EpZn-10.9 | 4011010151 | 4 |
| 6 | Horizontal thrust rod support | 27120114521 | 2 |
| 7 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 8 | No longer used | 4013010182 | 4 |
| 9 | Transverse thrust rod assy | 4110001241 | 2 |
| 10 | Bolt M27*3*330-12.9 | 27120103721 | 4 |
| 11 | BOLT GB5782-M27*180-12.9 | 4011010191 | 12 |
| 12 | Lower thrust rod assy | 4110000895 | 4 |
| 13 | Spacer sleeve | 27120105031 | 12 |
| 14 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 18 |
| 15 | Upr thrust rod assy | 4110001816 | 2 |
| 16 | Bolt | 27120111821 | 2 |
| 17 | Bolt GB5782-M16*120EpZn-10.9 | 4011000622 | 6 |
| 18 | Thrust rod bearings | 27120104241 | 2 |
| 19 | Plate | 27120111651 | 1 |
| 20 | Washer GB1230-16EpZn-45 | 4015000001 | 6 |
