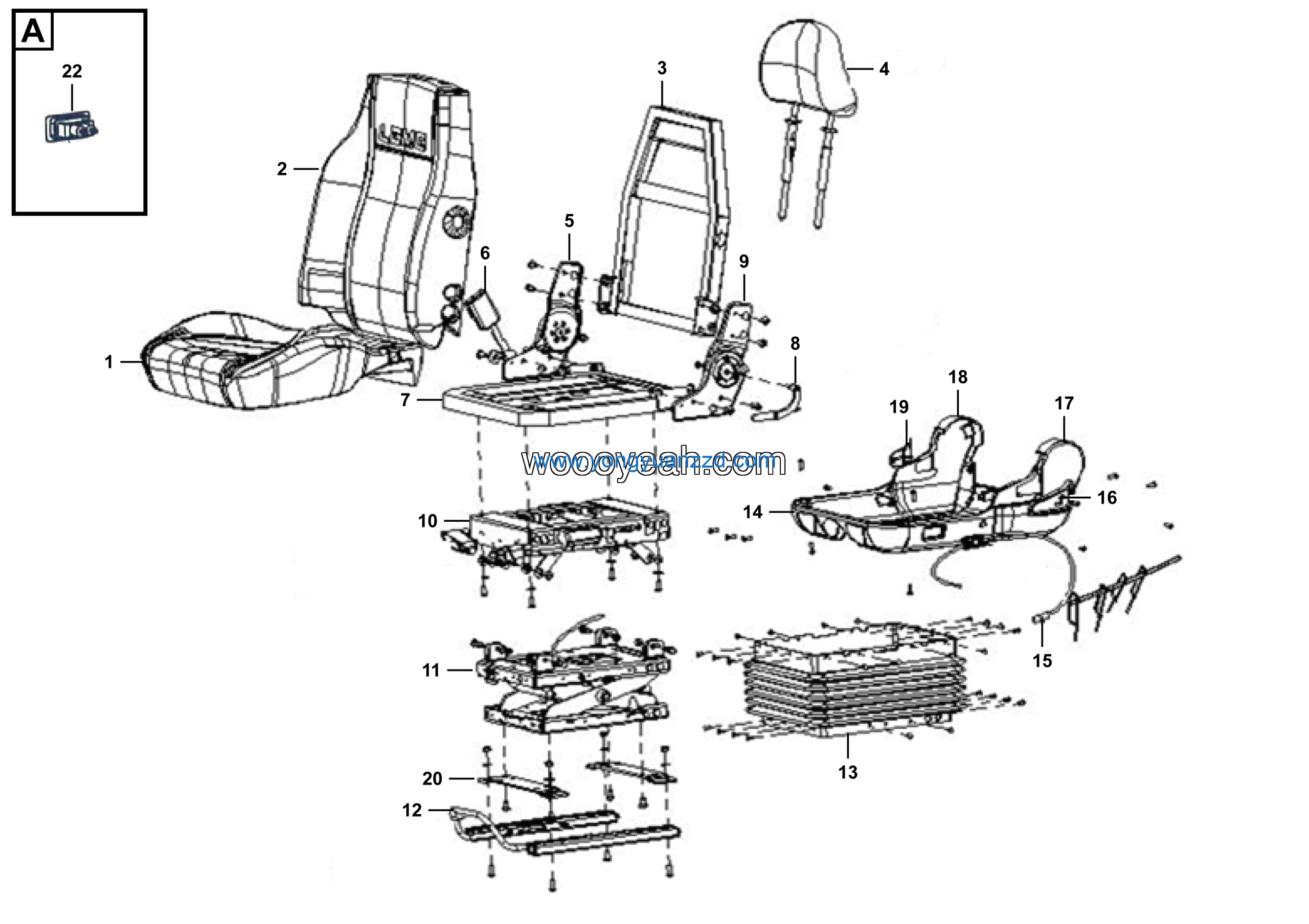

LGMG MT95D Mine Truck – Seat – L1300-4190002268
Category: Mine Truck > MT95D > M095DWA00-G1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Tilt assy SGA14176 | 4190002268010 | 1 |
| 2 | Air suspension SGA17031 | 4190002268011 | 1 |
| 3 | Slide rail assy SGA14236 | 4190002268012 | 1 |
| 4 | Dust shield SG14113 | 4190002268013 | 1 |
| 5 | Front cover SG11322 | 4190002268014 | 1 |
| 6 | Connector SG17007 | 4190002268015 | 1 |
| 7 | Back adjustment handle SG11128 | 4190002268016 | 1 |
| 8 | LH decorative cover SG12098 | 4190002268017 | 1 |
| 9 | RH decorative cover SG12101 | 4190002268018 | 1 |
| 10 | Protective cover RSG11321 | 4190002268019 | 1 |
| 11 | Seat cotton assy SGA12060 | 4190002268001 | 1 |
| 12 | Lifting rear guard cover SG13014 | 4190002268020 | 1 |
| 13 | Air switch S20329 | 4190002268021 | 1 |
| 14 | Back combined cotton assy SGA11183 | 4190002268002 | 1 |
| 15 | Backrest bracket assy SGA11039 | 4190002268003 | 1 |
| 16 | Headrest assy SGA12066 | 4190002268004 | 1 |
| 17 | Adjusting mechanism assy SGA11190（RH） | 4190002268005 | 1 |
| 18 | Safety belt lock SGA11225 | 4190002268006 | 1 |
| 19 | Seat steel assy SGA11040 | 4190002268007 | 1 |
| 20 | LH adjusting handle assy SGA11163 | 4190002268008 | 1 |
| 21 | Adjusting mechanism assy SGA11254（LH） | 4190002268009 | 1 |
