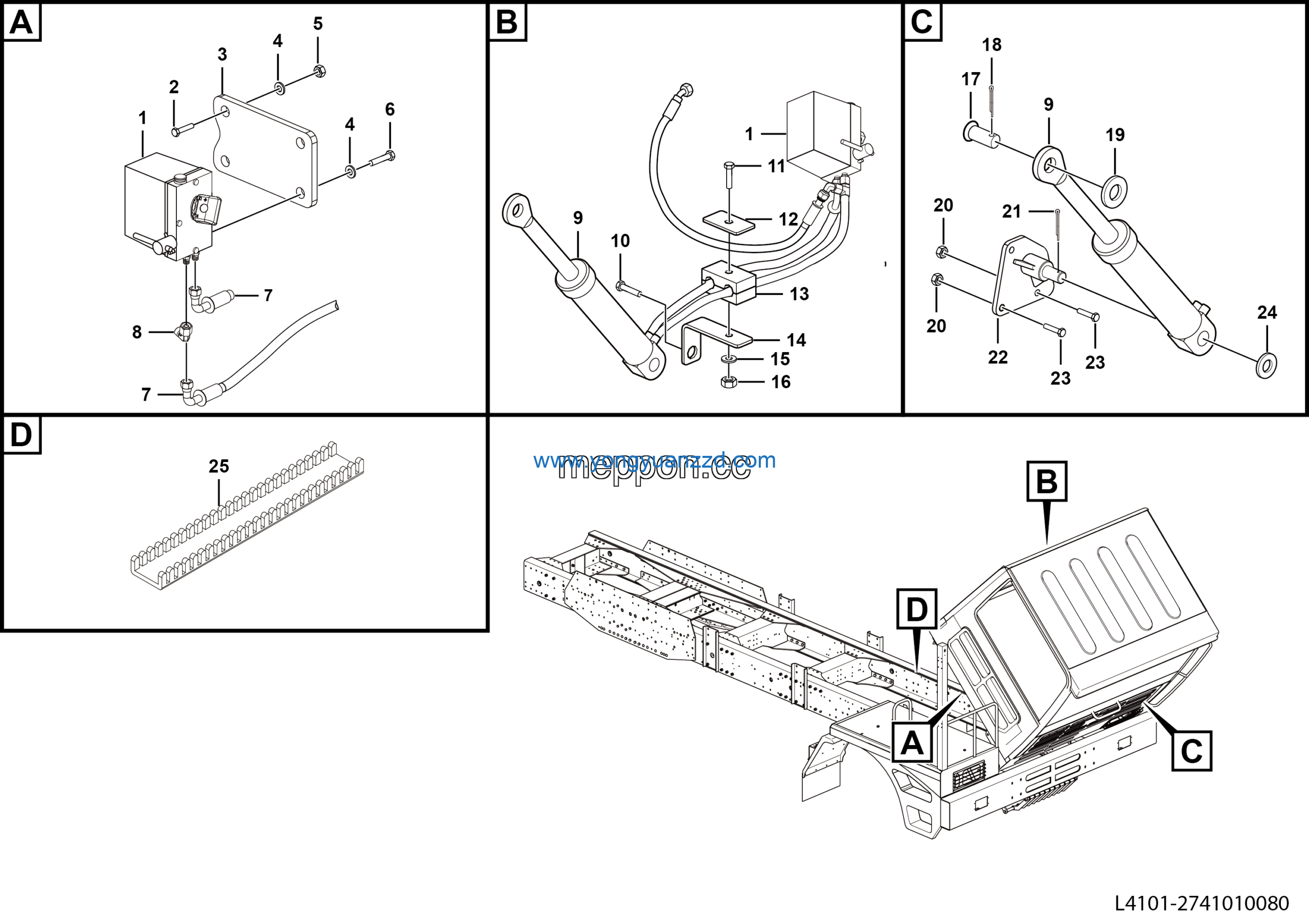

LGMG MT95H Mine Truck – Cab fliping hydraulic assy – L4101-2741010080
Category: Mine Truck > MT95H > M095HWA20
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 2 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 3 |
| 3 | Cover plate | 27410100861 | 3 |
| 4 | Twin tube clamp | 4120002035 | 3 |
| 5 | Bracket 2 | 27410100881 | 1 |
| 6 | Washer GB97.1-8EpZn-300HV | 4015000072 | 3 |
| 7 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 2 |
| 8 | Pin GB882-B22*75EpZn-35 | 4016010114 | 1 |
| 9 | Pin GB91-5*45EpZn-Q235A | 4016010004 | 1 |
| 10 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 11 | Hand pump | 4120001103 | 1 |
| 12 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 3 |
| 13 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 1 |
| 14 | Carrier of cab turning cylinder | 27410100071 | 1 |
| 15 | Bolt GB5782-M12*55EpZn-8.8 | 4011000186 | 3 |
| 16 | Washer GB97.1-24EpZn-300HV | 4015000167 | 1 |
| 17 | String casing1 | 27140121691 | 2 |
| 18 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 19 | Hand pump mounting plate | 27410100601 | 1 |
| 20 | Washer GB97.1-10EpZn-300HV | 4015000162 | 5 |
| 21 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 22 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 23 | Hose assembly | 27410100623 | 2 |
| 24 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 25 | Cab overturning cylinder | 4120001145 | 1 |
