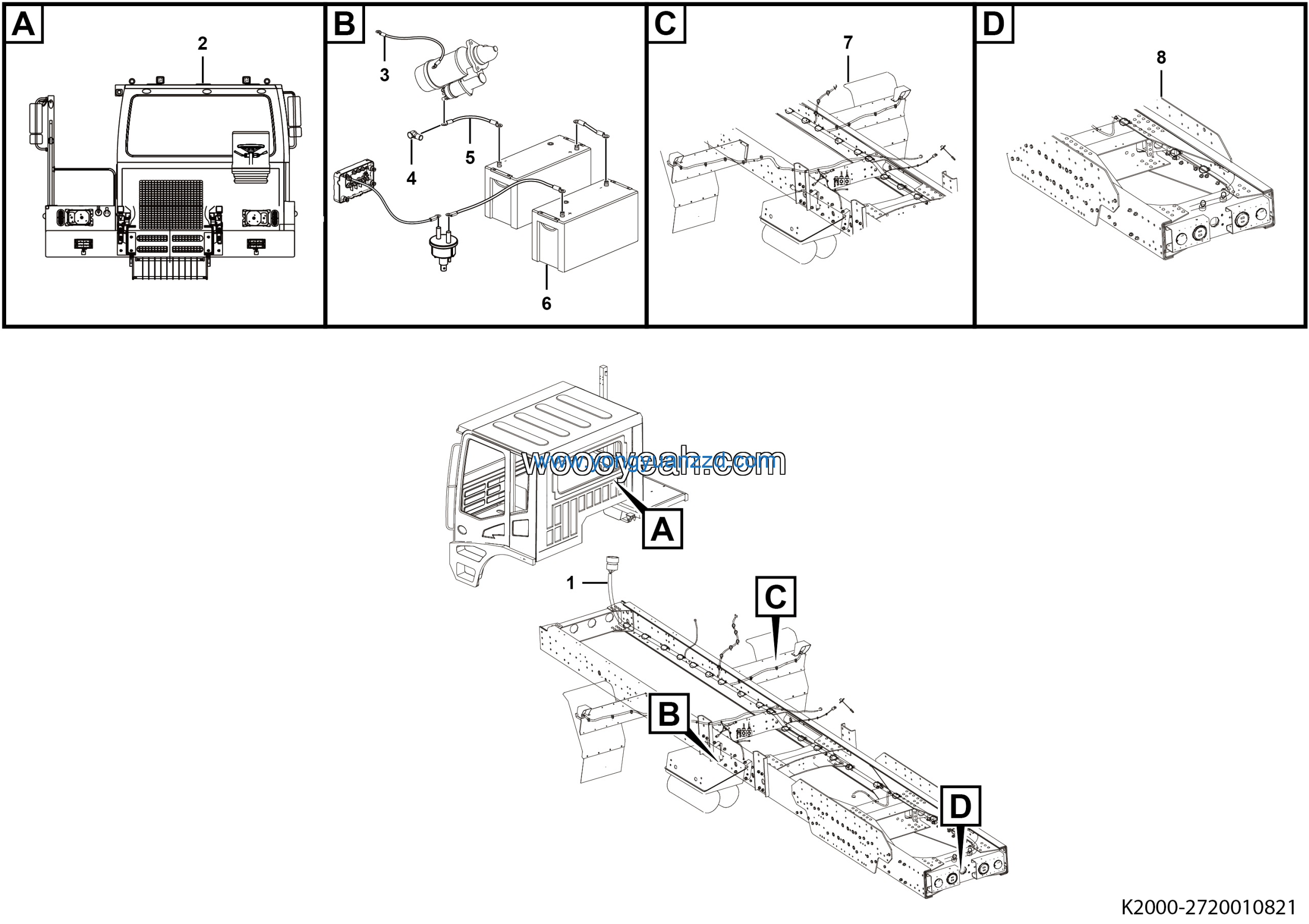

LGMG MT95H Mine Truck – Chassis electric system – K2000-2720010821
Category: Mine Truck > MT95H > M095HWA06
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Wire | 27200107771 | 1 |
| 2 | Electrical module | 27200108161 | 1 |
| 3 | Wire | 27200104921 | 1 |
| 4 | Red battery cable sheath | 26370002451 | 1 |
| 5 | Battery wire p70*3900 | 27200106551 | 1 |
| 6 | Electrical module | 27200107641 | 1 |
| 7 | Frame central electrical module | 27200107521 | 1 |
| 8 | Signal module | 27200107531 | 1 |
