LGMG MT95H Mine Truck – Condenser assy LXZA3.2004 – N2101-4190001491
Category: Mine Truck > MT95H > M095HHE02

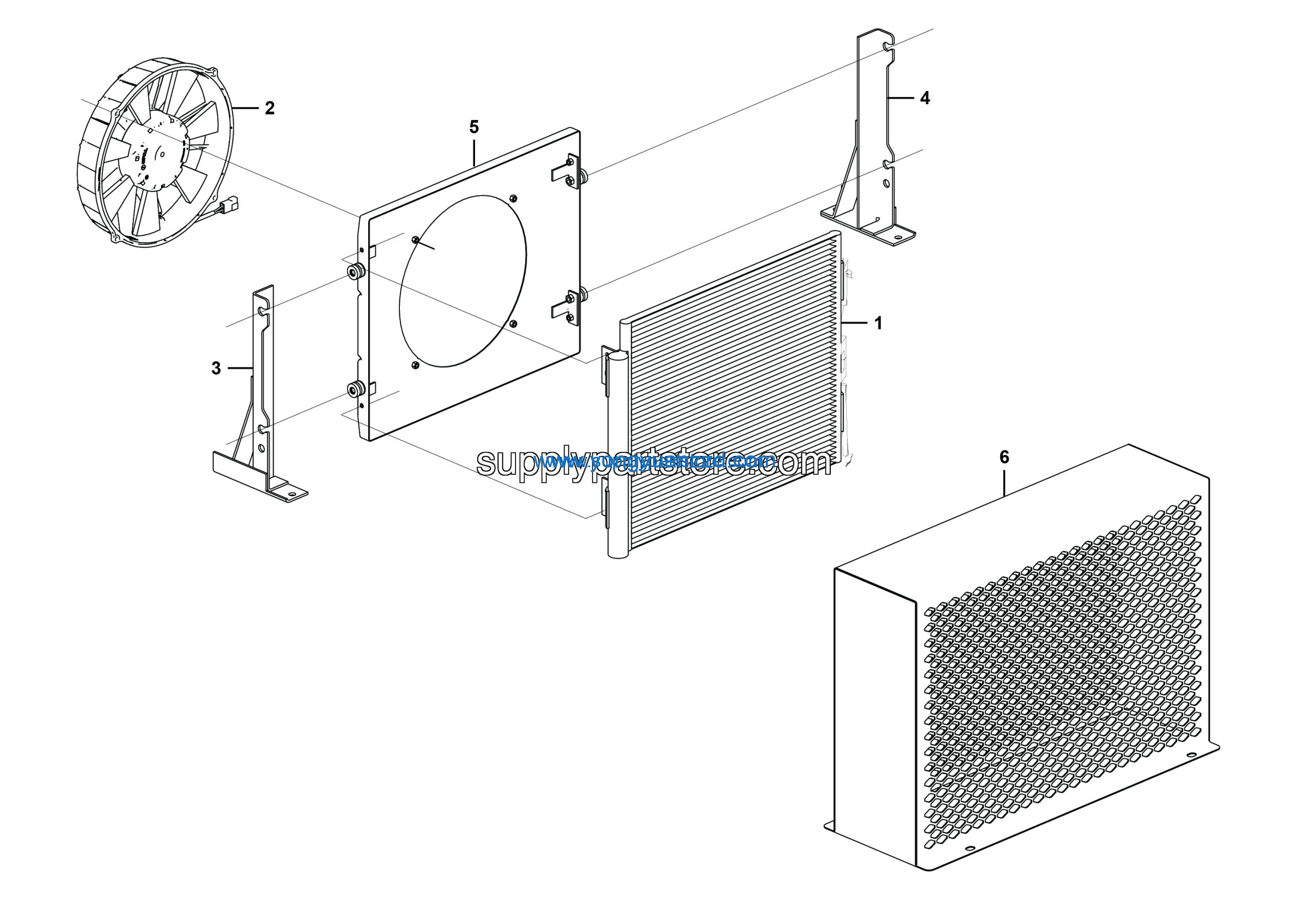

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Condensing body | 4190001224 | 1 |
| 2 | Condenser fan | 4190001492 | 1 |
| 3 | Condenser LH bracket assy LXPB3.2001 | 4190001491001 | 1 |
| 4 | Condenser RH bracket assy LXPB3.2002 | 4190001491002 | 1 |
| 5 | Collector hood assy LXPB3.2006 | 4190001491003 | 1 |
| 6 | Shield assy | 4190001218 | 1 |
