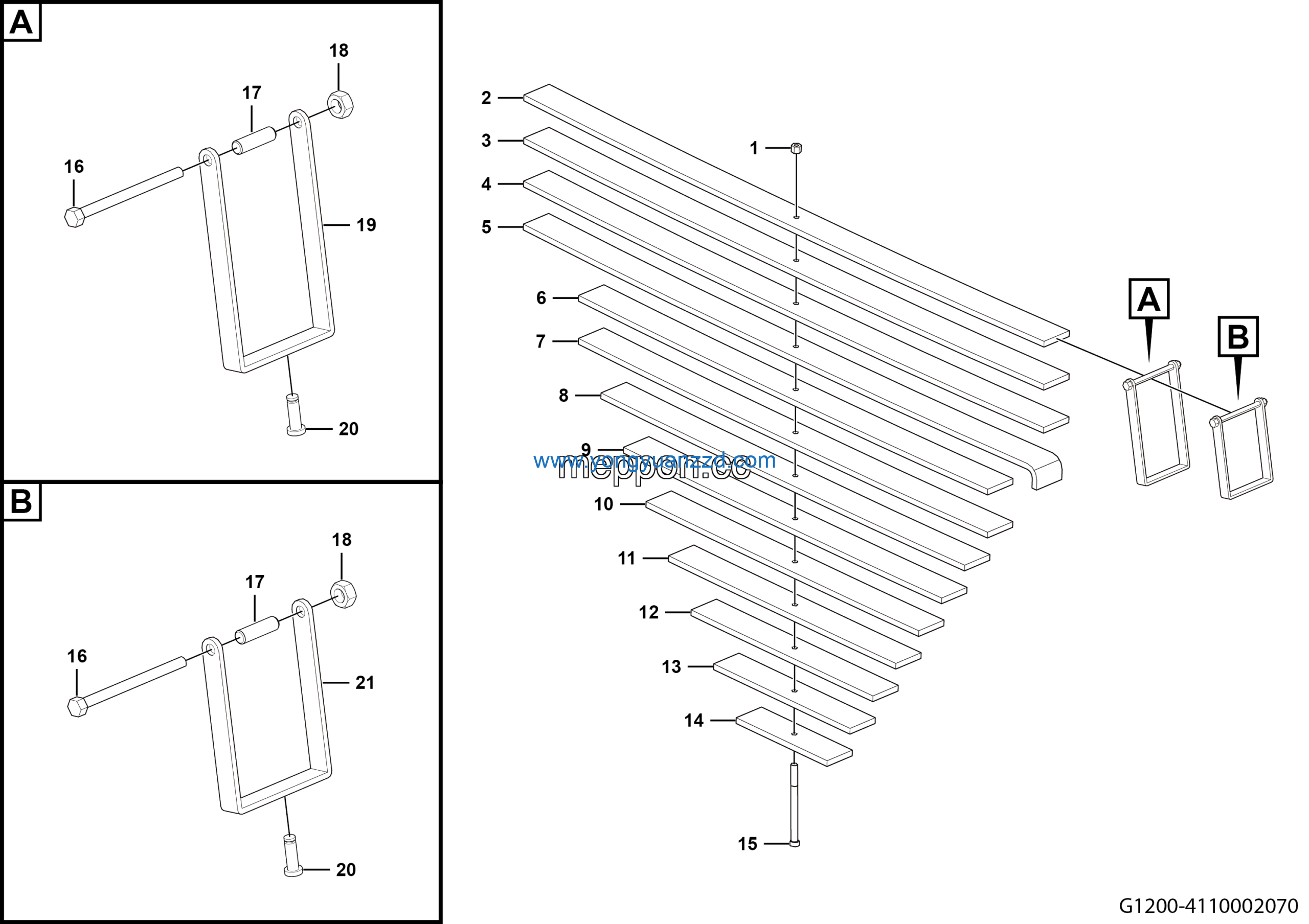

LGMG MT95H Mine Truck – Front leaf spring assy – G1200-4110002070
Category: Mine Truck > MT95H > M095HWA10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 9th leaf of front leaf spring | 4110002070009 | 1 |
| 2 | 10th leaf of front leaf spring | 4110002070010 | 1 |
| 3 | 11th leaf of front leaf spring | 4110002070011 | 1 |
| 4 | 12th leaf of front leaf spring | 4110002070012 | 1 |
| 5 | 13th leaf of front leaf spring | 4110002070013 | 1 |
| 6 | Center bolt | 4110002070020 | 1 |
| 7 | Bolt | 4110002070019 | 4 |
| 8 | Bushing | 4110002070014 | 4 |
| 9 | Self-locking nut | 4110002070018 | 4 |
| 10 | Clamp | 4110002070015 | 2 |
| 11 | Center nut | 4110002070021 | 1 |
| 12 | Rivet | 4110002070017 | 1 |
| 13 | Clamp | 4110002070016 | 2 |
| 14 | 1st leaf of front leaf spring | 4110002070001 | 1 |
| 15 | Leaf of front leaf spring | 4110002070002 | 1 |
| 16 | 3rd leaf of front leaf spring | 4110002070003 | 1 |
| 17 | 4th leaf of front leaf spring | 4110002070004 | 1 |
| 18 | 5th leaf of front leaf spring | 4110002070005 | 1 |
| 19 | 6th leaf of front leaf spring | 4110002070006 | 1 |
| 20 | 7th leaf of front leaf spring | 4110002070007 | 1 |
| 21 | 8th leaf of front leaf spring | 4110002070008 | 1 |
