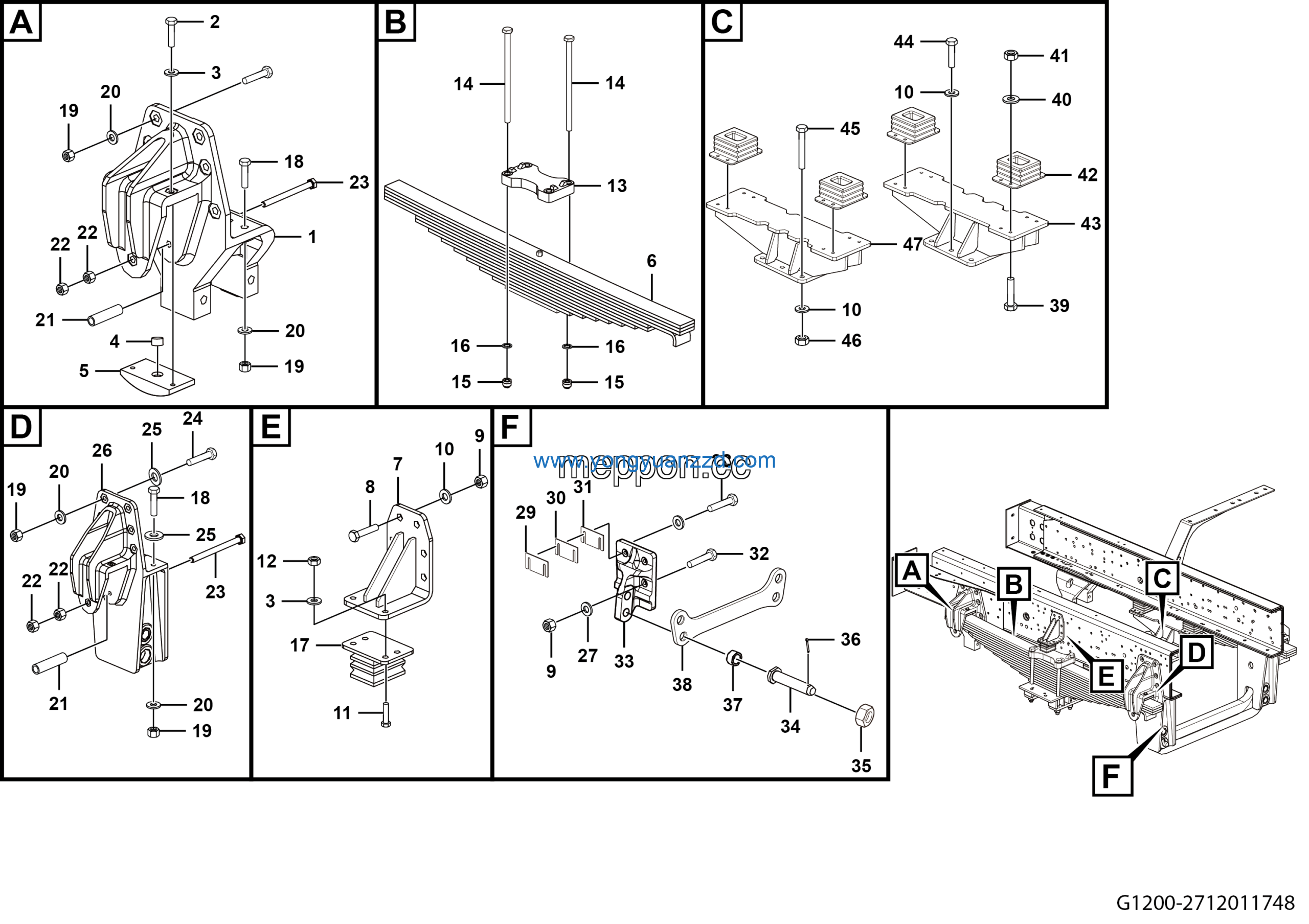

LGMG MT95H Mine Truck – Front leaf spring installation assy – G1200-2712011748
Category: Mine Truck > MT95H > M095HWA30-G1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-16EpZn-300HV | 4015000181 | 20 |
| 2 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 8 |
| 3 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 4 | Spring pressing block | 27120115601 | 2 |
| 5 | Bolt | 27120115671 | 8 |
| 6 | Self-locking nut with the shoulder | 27120103611 | 8 |
| 7 | NORD-LOCK WASHER NL24SP | 4015010257 | 8 |
| 8 | Frame side limit block | 4110002084 | 2 |
| 9 | Bolt GB5785-M18*1.5*85flZnyc-12.9-480 | 4011010505 | 24 |
| 10 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 36 |
| 11 | Front leaf sring front support saddle | 27120115042 | 2 |
| 12 | Washer 18 | 27120105413 | 52 |
| 13 | Bolt protection tube | 27120100211 | 4 |
| 14 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 8 |
| 15 | Bolt | 27120100221 | 4 |
| 16 | Bolt GB5785-M18*1.5*80flZnyc-12.9-480 | 4011010499 | 12 |
| 17 | Big washer | 27120117501 | 16 |
| 18 | Seat | 27120117671 | 2 |
| 19 | Washer GB1230-16-45 | 4015010101 | 28 |
| 20 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 21 | Adjusting shim | 27120114771 | 2 |
| 22 | Bolt GB5786-M12*1.25*45EpZn-8.8 | 4011010405 | 8 |
| 23 | Adjusting shim | 27120114781 | 2 |
| 24 | Adjustment gasket | 27120117822 | 2 |
| 25 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 12 |
| 26 | Second beam seat | 27120113671 | 2 |
| 27 | Pin | 27120117411 | 4 |
| 28 | Nut GB6178-M36EpZn-10 | 4013010114 | 4 |
| 29 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 30 | Sleeve | 27120117811 | 4 |
| 31 | Second pole | 27120117871 | 2 |
| 32 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 16 |
| 33 | Washer GB97.1-12EpZn-300HV | 4015000168 | 16 |
| 34 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 35 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 36 | Frame bottom limit block | 4110002085 | 4 |
| 37 | Left limit bracket assembly of axle | 27120117712 | 1 |
| 38 | BOLT GB5786-M16*1.5*40flZnyc-12.9-480 | 4011010582 | 10 |
| 39 | Bolt GB5785-M16*1.5*145flZnyc-12.9-480 | 4011010593 | 4 |
| 40 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 41 | Right limit bracket assembly of axle | 27120117722 | 1 |
| 42 | Cushion block | 27120113681 | 4 |
| 43 | Wearing piece | 27120114992 | 4 |
| 44 | FR leaf spring assy | 4110002070 | 2 |
| 45 | Limit bracket assembly | 27120117681 | 1 |
| 46 | Bolt GB5783-M16*55flZnyc-12.9-480 | 4011010577 | 6 |
| 47 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 18 |
