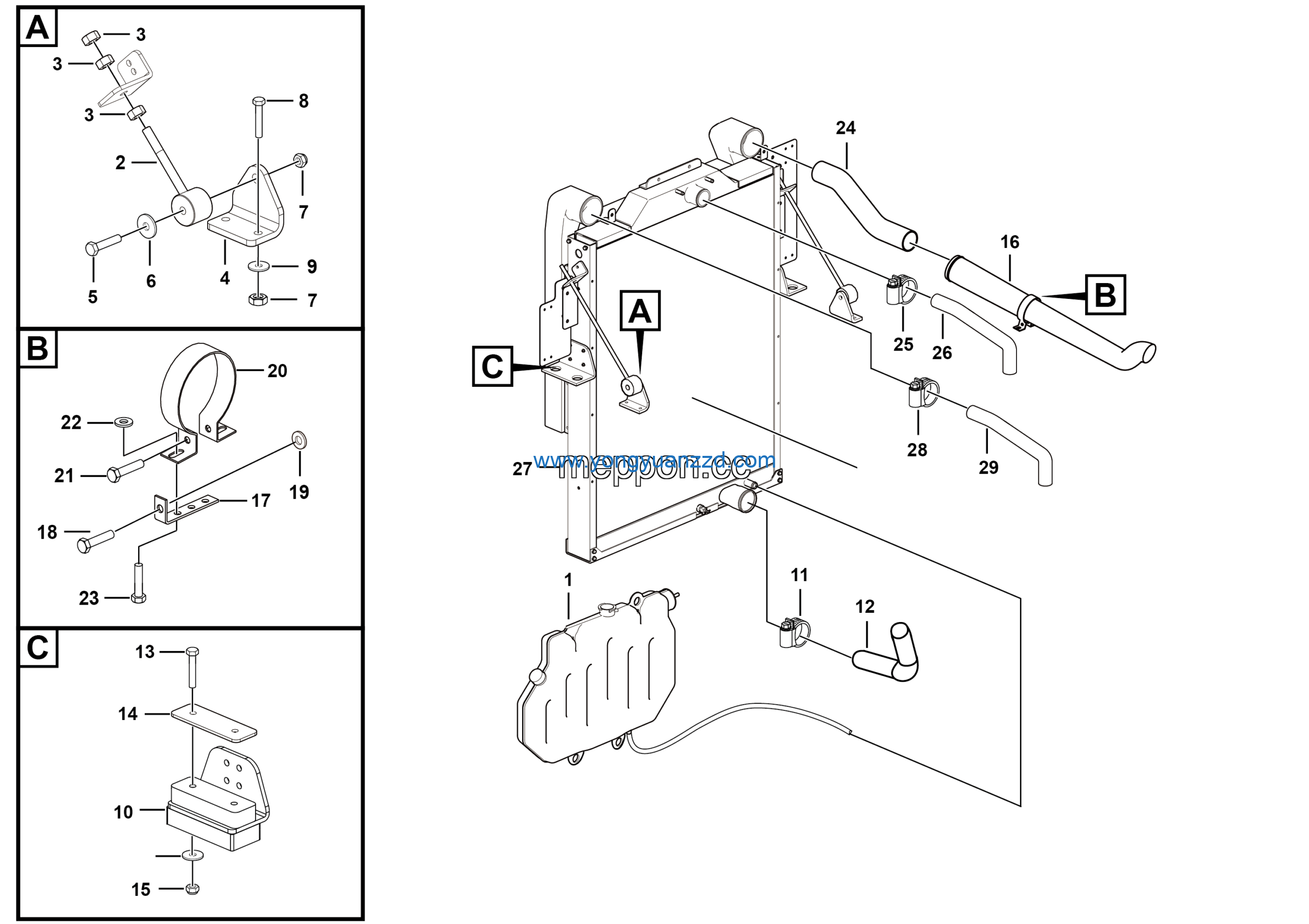

LGMG MT95H Mine Truck – Radiator assembly – A0300-2703011426
Category: Mine Truck > MT95H > M095HWAA0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Radiator shock absorber assy | 4110001445 | 2 |
| 2 | T-Clamp 78-86 | 4190002212 | 2 |
| 3 | Pipe | 27030111341 | 1 |
| 4 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 5 | Plate | 27030109731 | 2 |
| 6 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 7 | Cold air intake pipe | 27030105791 | 1 |
| 8 | Support ii | 27030105872 | 1 |
| 9 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 10 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 11 | EXPANSION TANK | 27030109101 | 1 |
| 12 | Support i | 27030105861 | 1 |
| 13 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 1 |
| 14 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 15 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 16 | Pipe | 27030114281 | 1 |
| 17 | No longer used | 4019010101 | 2 |
| 18 | Pipe | 27030114291 | 1 |
| 19 | Radiator assembly | 4110702455 | 1 |
| 20 | No longer used | 4019010211 | 4 |
| 21 | Pipe | 27030114271 | 1 |
| 22 | Radiator bar | 4110001451 | 2 |
| 23 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 24 | Plate | 27030114301 | 2 |
| 25 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 26 | Plate | 27030109021 | 2 |
| 27 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 28 | Bolt GB5783-M10*90EpZn-8.8 | 4011000956 | 4 |
| 29 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
