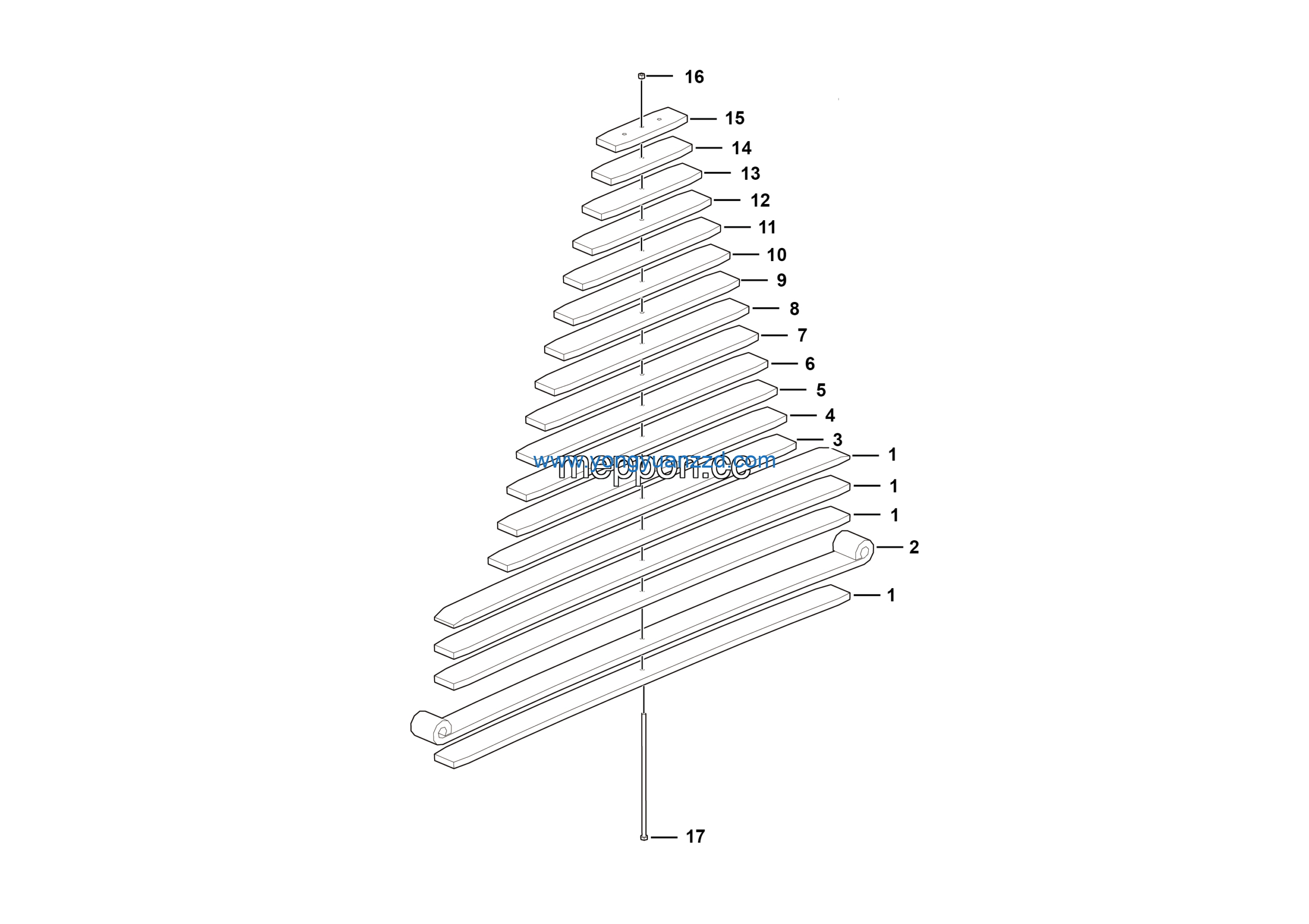

LGMG MT95H Mine Truck – Rear leaf spring assy – G1201-4110001448
Category: Mine Truck > MT95H > M095HHAF1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 13th leaf of rear leaf spring | 4110001448013 | 1 |
| 2 | 14th leaf of rear leaf spring | 4110001448014 | 1 |
| 3 | 15th leaf of rear leaf spring | 4110001448015 | 1 |
| 4 | 16th leaf of rear leaf spring | 4110001448016 | 1 |
| 5 | 17th leaf of rear leaf spring | 4110001448017 | 1 |
| 6 | 18th leaf of rear leaf spring | 4110001448018 | 1 |
| 7 | Center nut M16*1.5 | 4110000730014 | 1 |
| 8 | Center bolt | 4110001448020 | 1 |
| 9 | Leaf of rear leaf spring | 4110001448001 | 1 |
| 10 | 2nd leaf of rear leaf spring | 4110001448002 | 1 |
| 11 | 6th leaf of rear leaf spring | 4110001448006 | 1 |
| 12 | 7th leaf of rear leaf spring | 4110001448007 | 1 |
| 13 | 8th leaf of rear leaf spring | 4110001448008 | 1 |
| 14 | 9th leaf of rear leaf spring | 4110001448009 | 1 |
| 15 | 10th leaf of rear leaf spring | 4110001448010 | 1 |
| 16 | 11th leaf of rear leaf spring | 4110001448011 | 1 |
| 17 | 12th leaf of rear leaf spring | 4110001448012 | 1 |
