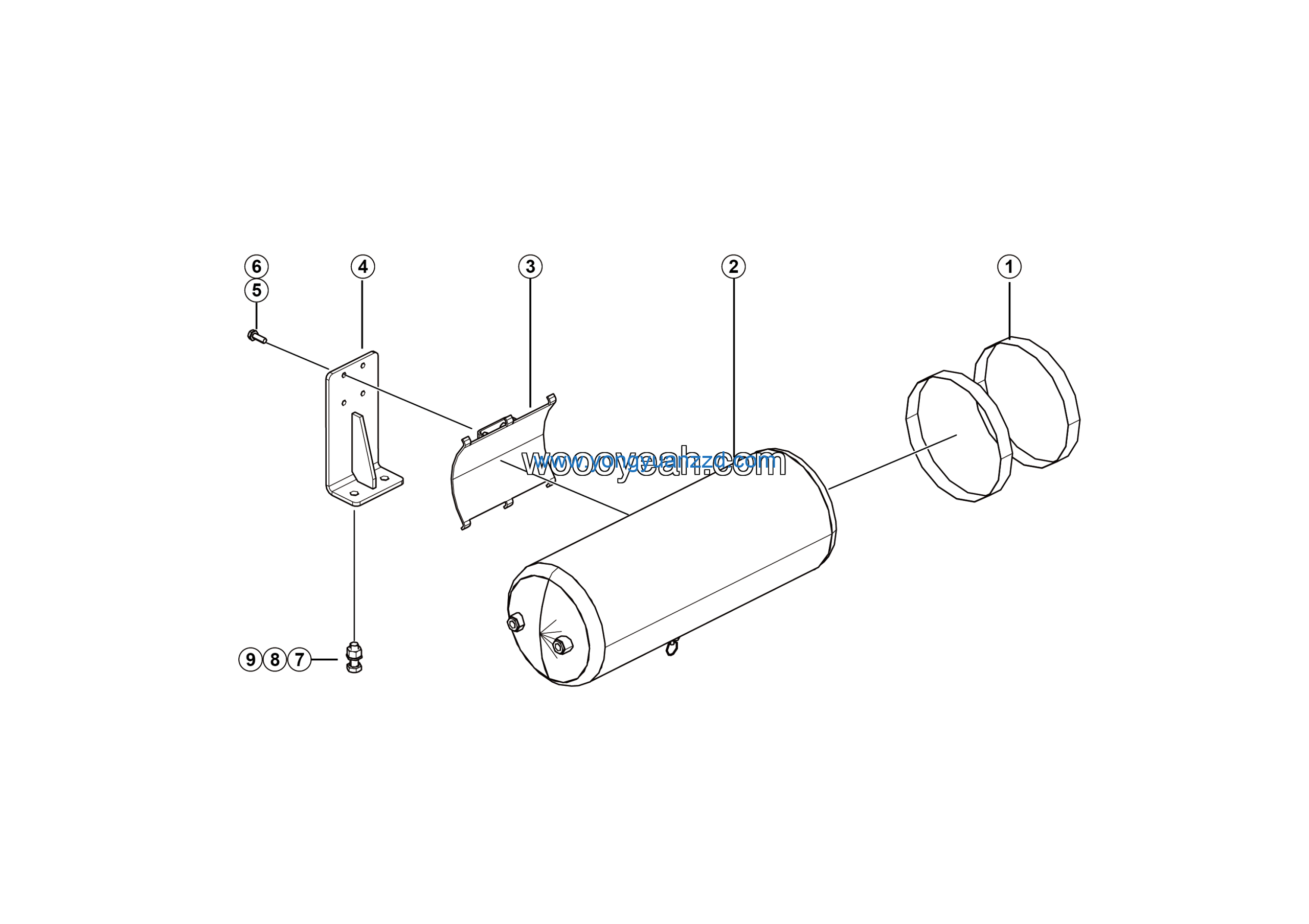

LGMG MTE106H 2025 – 30L air reservoir installation – J1000-2711011568.S1B
Category: 2025 > MTE106H > C106HE0A0A501
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose clamp φ246-φ250 | 4120000177 | 2 |
| 2 | Air reservoir assembly | 27110113721 | 1 |
| 3 | 30l air reservoir bracket wldmt | 27110115711 | 1 |
| 4 | Air reservoir bracket wldmt | 27110115871 | 1 |
| 5 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 6 | Washer GB97.1-10-300HV | 4015000322 | 4 |
| 7 | Bolt GB5782-M12*45EpZn-8.8 | 4011000498 | 4 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 9 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
