LGMG MTE106H 2025 – Battery ptc2 assy – A6400-2764000224.S1A
Category: 2025 > MTE106H > C1062E0A0A001

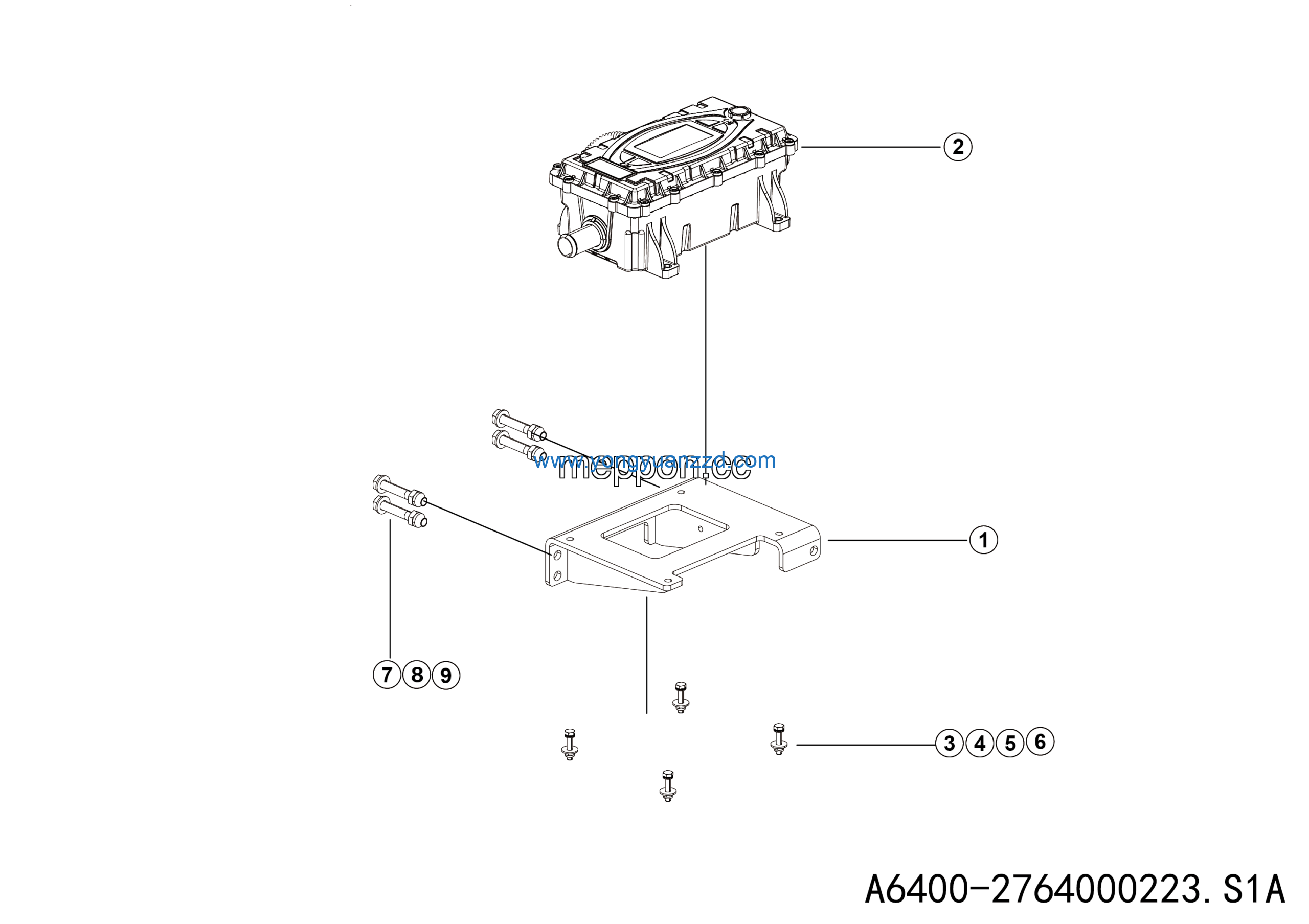

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket wldmt | 27640001871 | 1 |
| 2 | 12kw PTC | 4130706123 | 1 |
| 3 | Double sack wedge lock washer HF6 | 4190708407 | 4 |
| 4 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 4 |
| 5 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 6 | Nut GB6185.1-M6EpZn-8 | 4013010117 | 4 |
| 7 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 4 |
| 8 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
