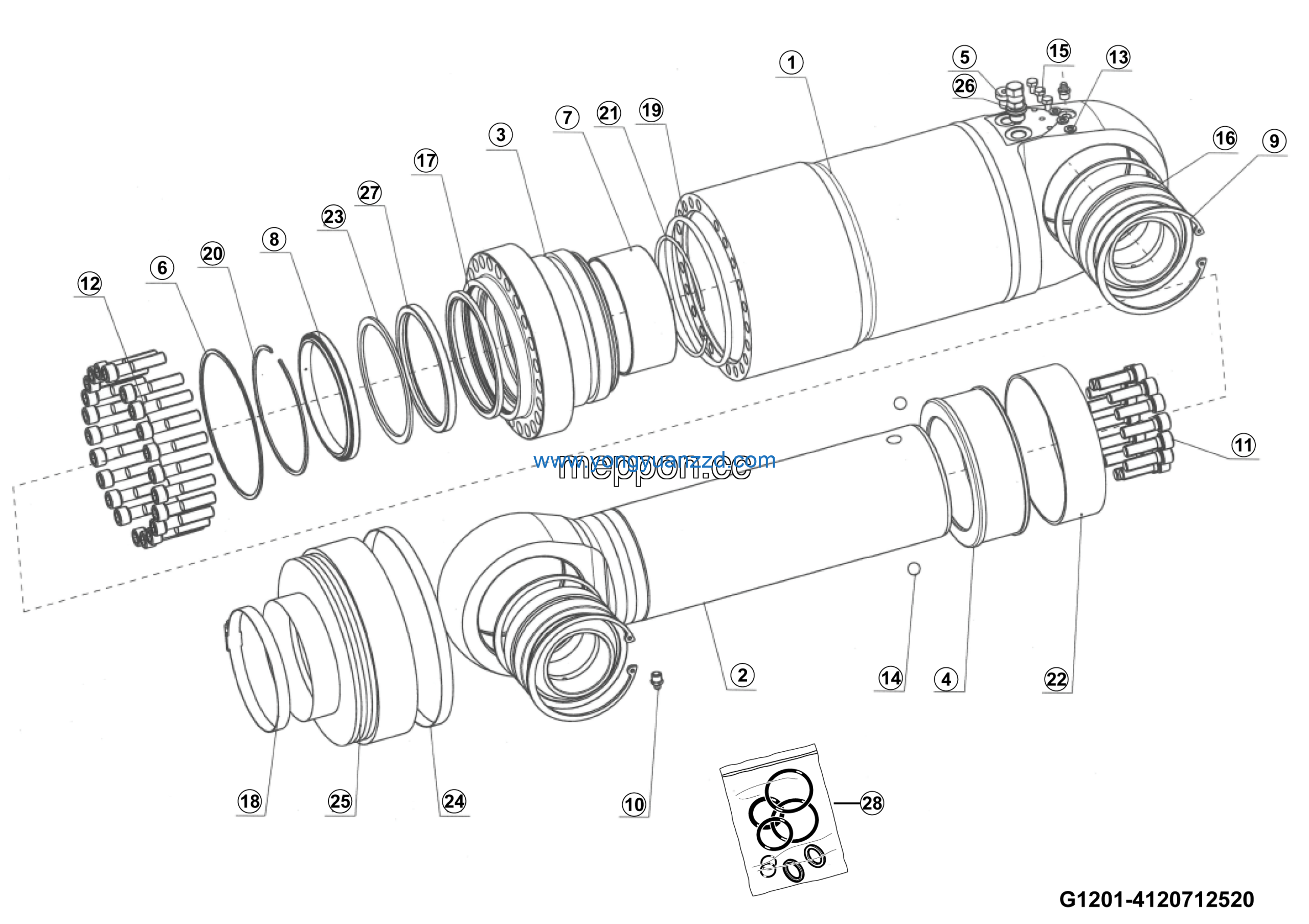

LGMG MTE106H 2025 – Front oil spring – G1201-4120712520
Category: 2025 > MTE106H > C1062E0A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Grease nipple 210000209180 | 4120712520010 | 4 |
| 2 | Screw 210000205885 | 4120712520011 | 2 |
| 3 | Screw 210000205890 | 4120712520012 | 14 |
| 4 | Washer 210000209700 | 4120712520013 | 22 |
| 5 | Ball 210000207469 | 4120712520014 | 3 |
| 6 | Bolt 210000319246 | 4120712520015 | 2 |
| 7 | Bearing 210000191937 | 4120712520016 | 3 |
| 8 | Buffer ring 210000008828 | 4120712520017 | 2 |
| 9 | Hose clamp 210000207455 | 4120712520018 | 1 |
| 10 | O-ring 110000000068 | 4120712520019 | 1 |
| 11 | Cylinder body 100 | 4120712520001 | 2 |
| 12 | Dust seal backup ring 210000208203 | 4120712520020 | 1 |
| 13 | Snap ring 210000208316 | 4120712520021 | 1 |
| 14 | Guide ring 210000276039 | 4120712520022 | 1 |
| 15 | Retaining ring 210000011563 | 4120712520023 | 1 |
| 16 | Hose clamp 210000207448 | 4120712520024 | 1 |
| 17 | Dust boot 210000276038 | 4120712520025 | 1 |
| 18 | Air filling valve 210000408138 | 4120712520026 | 1 |
| 19 | Piston rod seal ring 210000002858 | 4120712520027 | 1 |
| 20 | Seal kit 11482.0112Y.000.Fw01 | 4120712520028 | 1 |
| 21 | Piston rod 200 | 4120712520002 | 1 |
| 22 | Guide sleeve 003 | 4120712520003 | 1 |
| 23 | Piston 004 | 4120712520004 | 1 |
| 24 | Threaded plug 210000204232 | 4120712520005 | 1 |
| 25 | O-ring backup ring 110000000192 | 4120712520006 | 1 |
| 26 | Sliding sleeve 210000193961 | 4120712520007 | 1 |
| 27 | Dust seal 110000000629 | 4120712520008 | 1 |
| 28 | Snap ring 210000208424 | 4120712520009 | 1 |
