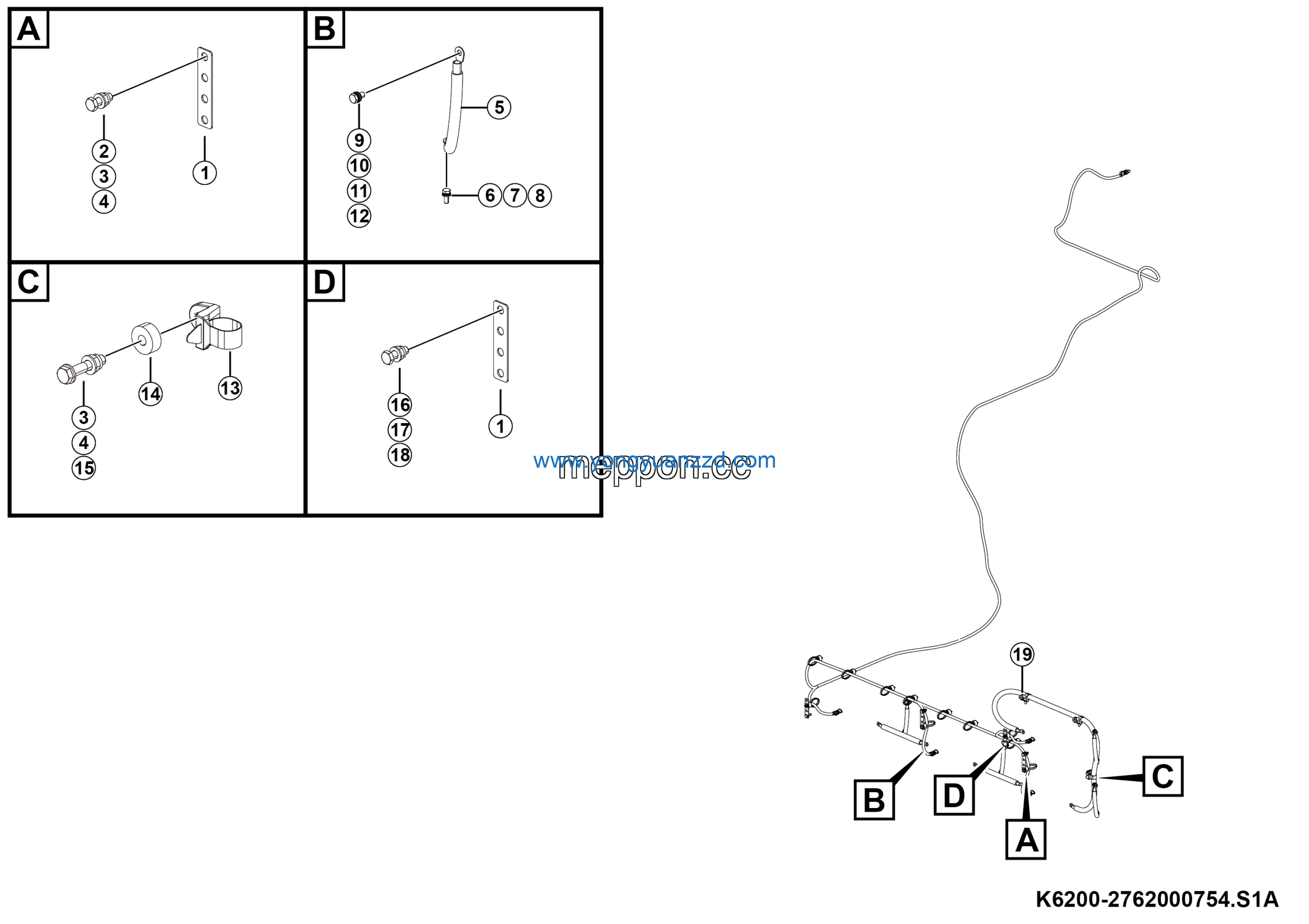

LGMG MTE106H 2025 – Harness between battery boxes (branch b) – K6200-2762000754.S1A
Category: 2025 > MTE106H > C106HE0A0A701
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Double sack wedge lock washer HF10 | 4190708409 | 4 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 3 | Washer GB862.2-10-65Mn | 4015010586 | 4 |
| 4 | Cable tie HS-J117 | 4130704969 | 3 |
| 5 | Round spacer 30*11*12 | 27620004961 | 1 |
| 6 | Bolt GB5782-M10*50flZnyc-8.8-480 | 4011010732 | 1 |
| 7 | Bolt GB5783-M8*25flznyc-8.8-480 | 4011010743 | 1 |
| 8 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 1 |
| 9 | Nut GB6185.1-M8flZnyc-10-480 | 4013010378 | 1 |
| 10 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 2 |
| 11 | Support 110*25*2 | 27620007591 | 4 |
| 12 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 3 |
| 13 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 6 |
| 14 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 3 |
| 15 | Ground wire bzw-50*350 | 27620001552 | 4 |
| 16 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 17 | Double sack wedge lock washer HF8 | 4190708408 | 4 |
| 18 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 19 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 4 |
