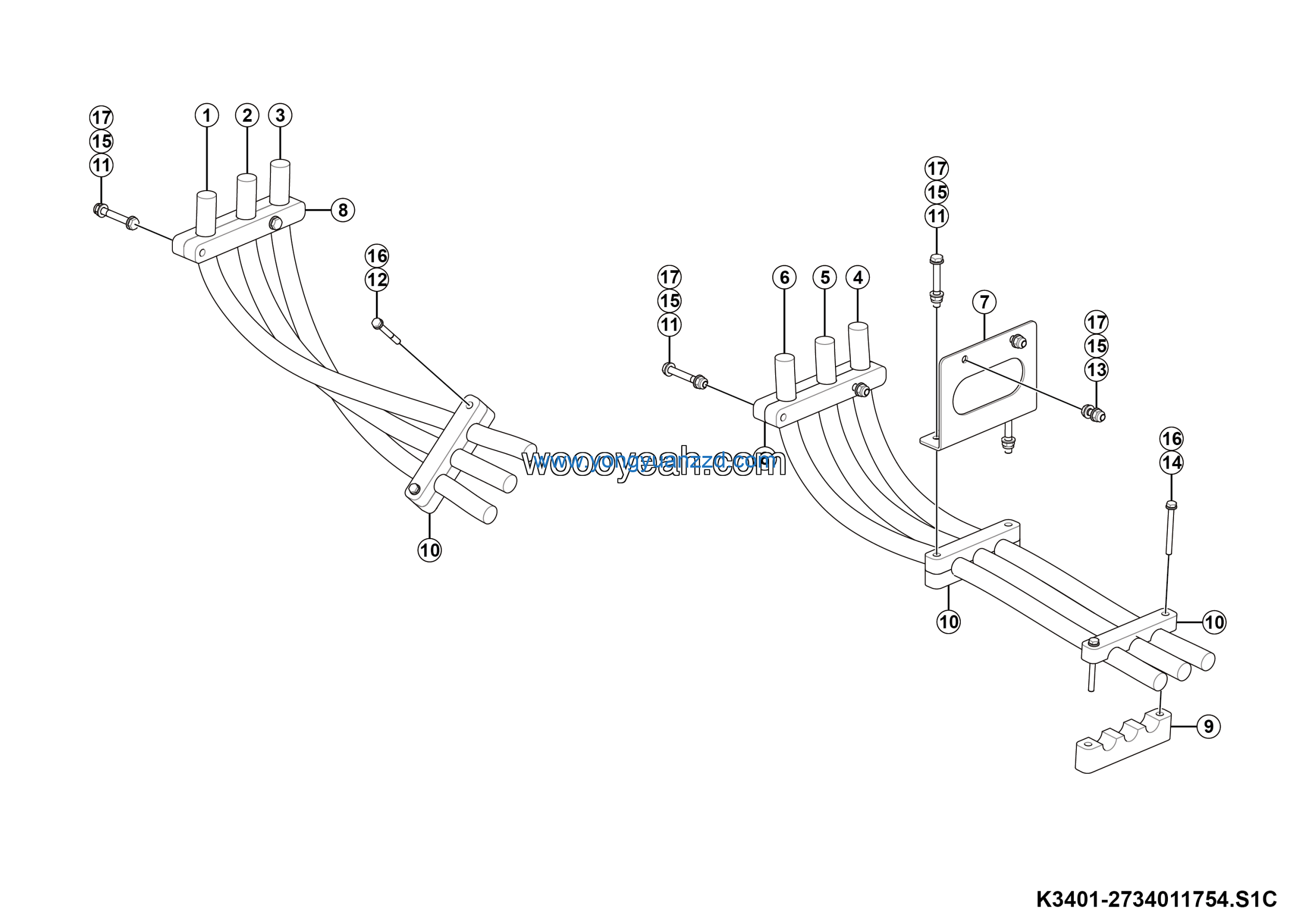

LGMG MTE106H 2025 – Motor elec sys – K3401-2734011754.S1C
Category: 2025 > MTE106H > C106HE0A0A501
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe clamp 180*30*24（2*28.5-150） | 27340123272 | 5 |
| 2 | Bolt GB5782-M10*75flZnyc-8.8-480 | 4011010724 | 6 |
| 3 | Bolt GB5783-M8*65flZnyc-8.8-480 | 4011010718 | 2 |
| 4 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 2 |
| 5 | Bolt GB5782-M8*80flZnyc-8.8-480 | 4011011039 | 2 |
| 6 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 8 |
| 7 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 4 |
| 8 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 16 |
| 9 | Main drive motor u wire 1035 | 27340117571 | 1 |
| 10 | Main drive motor v wire 1035 | 27340117581 | 1 |
| 11 | Main drive motor w wire 1050 | 27340117591 | 1 |
| 12 | Aux drive motor u wire 1205 | 27340117601 | 1 |
| 13 | Aux drive motor v wire 1205 | 27340117611 | 1 |
| 14 | Aux drive motor w wire 1205 | 27340117621 | 1 |
| 15 | L-bracket 150*50*4 | 27340117861 | 1 |
| 16 | Tube bank plate 230*30*24(29*3) | 27340113992 | 4 |
| 17 | Pipe clamp 180*40*30(3*28.5-150) | 27340121691 | 1 |
