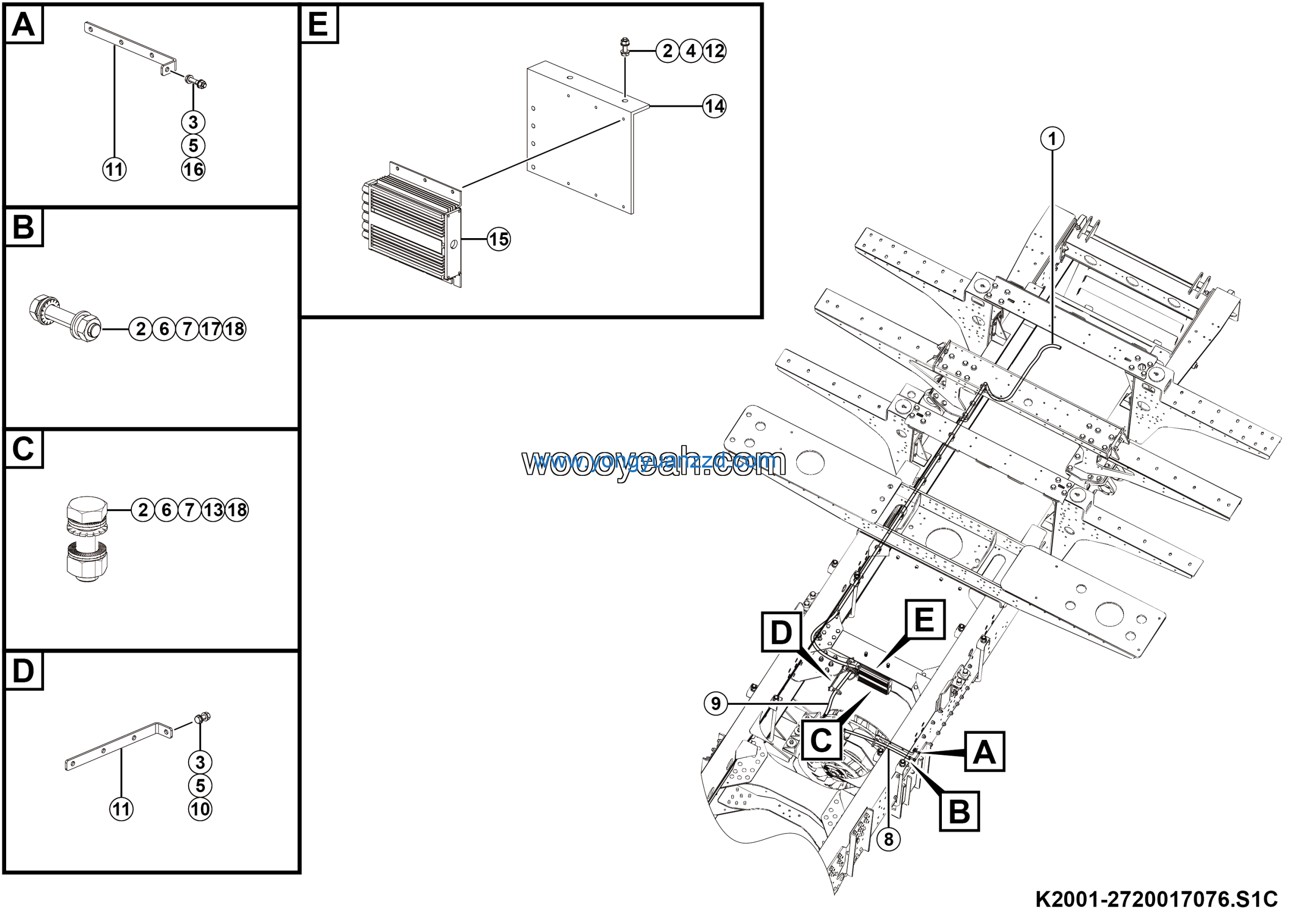

LGMG MTE106H 2025 – Retarder elec module – K2001-2720017076.S1C
Category: 2025 > MTE106H > C106HE0A0A905
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 1 |
| 2 | Low volt cable routing bracket 300*50*25 | 27200158051 | 2 |
| 3 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 4 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 1 |
| 5 | Fixing bracket assy | 4190002543 | 1 |
| 6 | ELEK controller 35240013270 | 4130712934 | 1 |
| 7 | Bolt GB5782-M10*50flZnyc-8.8-480 | 4011010732 | 1 |
| 8 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 9 | Nut GB6185.1-M10EpZn-10 | 4013010133 | 2 |
| 10 | Power cable p50*4100 | 27200170781 | 1 |
| 11 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 12 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 13 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 14 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 2 |
| 15 | Double sack wedge lock washer HF10 | 4190708409 | 2 |
| 16 | Washer GB862.2-10-65Mn | 4015010586 | 2 |
| 17 | Power cable p50*570 | 27200158022 | 1 |
| 18 | Power cable p50*650 | 27200170772 | 1 |
