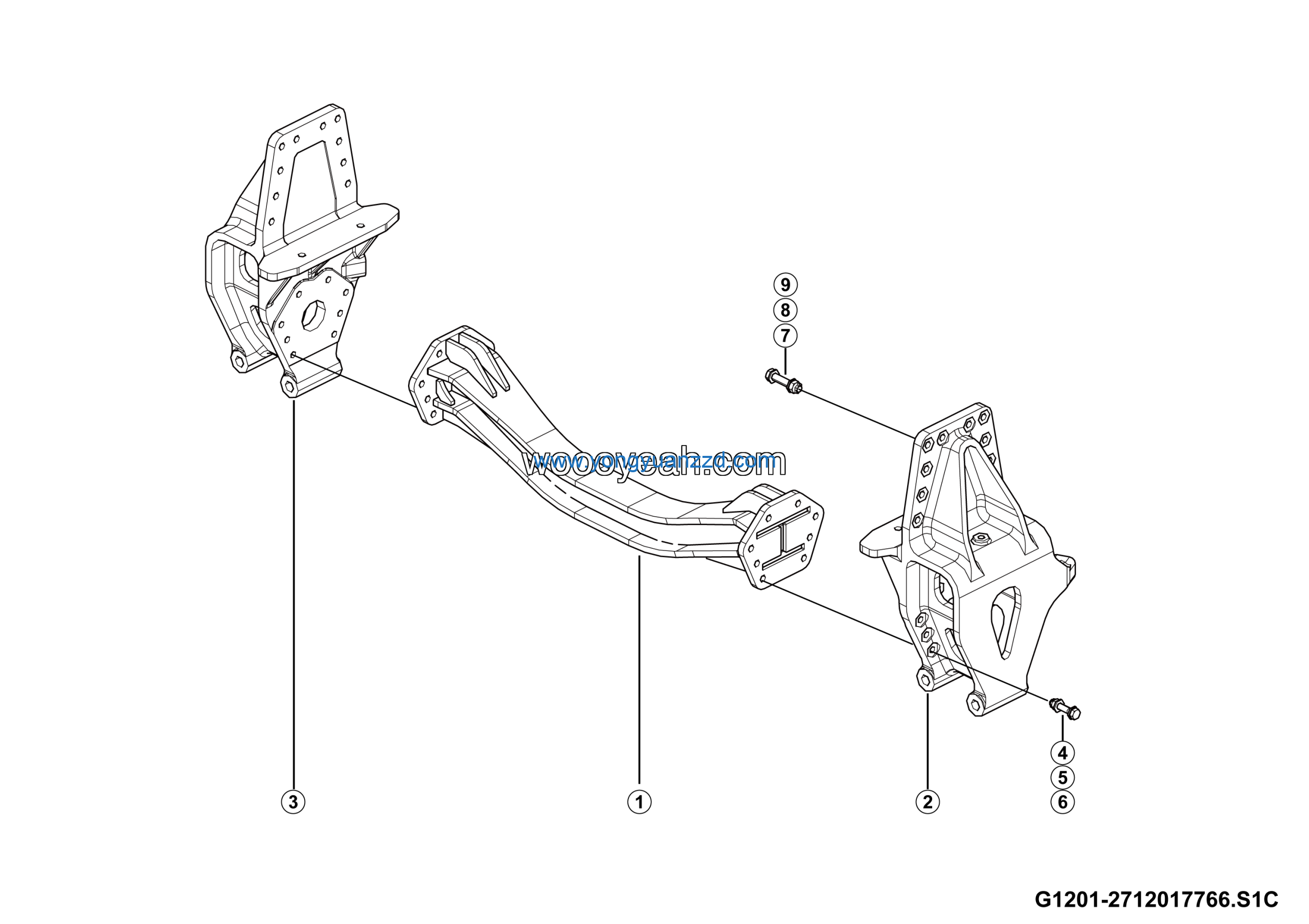

LGMG MTE106H 2025 – Seat assembly – G1201-2712017766.S1C
Category: 2025 > MTE106H > C106HE0A0A904
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Crossbeam 1 | 27120179101 | 1 |
| 2 | Seat | 27120177671 | 1 |
| 3 | Seat | 27120177681 | 1 |
| 4 | Bolt GB5785-M16*1.5*75flZnyc-12.9-480 | 4011010587 | 16 |
| 5 | Washer GB1230-16flZnyc-45-480 | 4015010563 | 32 |
| 6 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 16 |
| 7 | Bolt GB5785-M18*1.5*100flZnyc-12.9-480 | 4011010485 | 20 |
| 8 | Washer gb1230-18-45 | 27120105414 | 40 |
| 9 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 20 |
