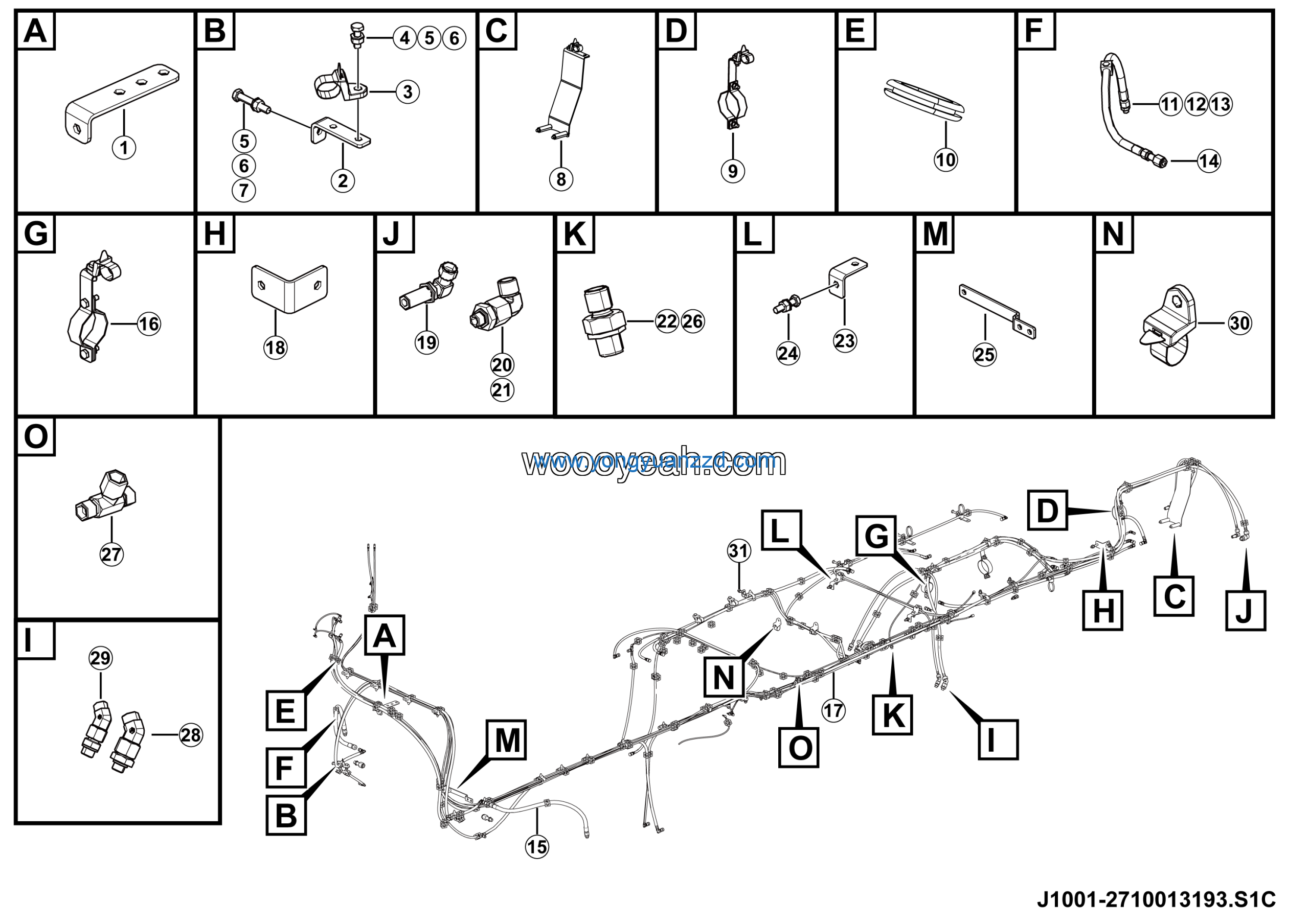

LGMG MTE106H 2025 – Service brake accessory assy – J1001-2710013193.S1C
Category: 2025 > MTE106H > C106HE0A0A501
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Grommet 60*40*4 | 27100127531 | 1 |
| 2 | AIR PIPE GPU-13-I-880-SG | 2710010744-008 | 1 |
| 3 | CONNECTOR | 27100100661 | 4 |
| 4 | Washer JB982-16 | 4015000141 | 10 |
| 5 | Bulkhead coupling assy | 27100125611 | 2 |
| 6 | AIR PIPE GPU-13-I-880-SG | 2710010744-007 | 1 |
| 7 | Air hose fixing bracket assy | 27100127561 | 1 |
| 8 | Air lines assy | 27100131941 | 1 |
| 9 | Plate | 27110108181 | 1 |
| 10 | M16-M18 rectangular connector | 27100100641 | 2 |
| 11 | Plate | 27030145221 | 1 |
| 12 | Connecter | 27100114051 | 4 |
| 13 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 14 | Joint M12-M12 | 27110101331 | 1 |
| 15 | Support | 27620002241 | 2 |
| 16 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 17 | Holder | 27200151471 | 1 |
| 18 | Washer JB982-12 | 4015000327 | 1 |
| 19 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 20 | Combination joint LGB143-12213 | 4041001218 | 1 |
| 21 | JOINT LGB143-11810 | 4041001464 | 1 |
| 22 | L board100*37*25 | 27100123901 | 5 |
| 23 | Cable tie 14400342 | 4130703098 | 15 |
| 24 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 25 | Cable tie HS-J117 | 4130704969 | 19 |
| 26 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 23 |
| 27 | Washer GB97.1-10EpZn-300HV | 4015000162 | 31 |
| 28 | Nut GB6170-M10EpZn-8 | 4013000007 | 31 |
| 29 | Bolt GB5782-M10*60EpZn-8.8 | 4011000050 | 5 |
| 30 | Rear bridge tracheal support assy | 27100127941 | 1 |
| 31 | Tracheal fixation bracket assembly | 27100124121 | 2 |
