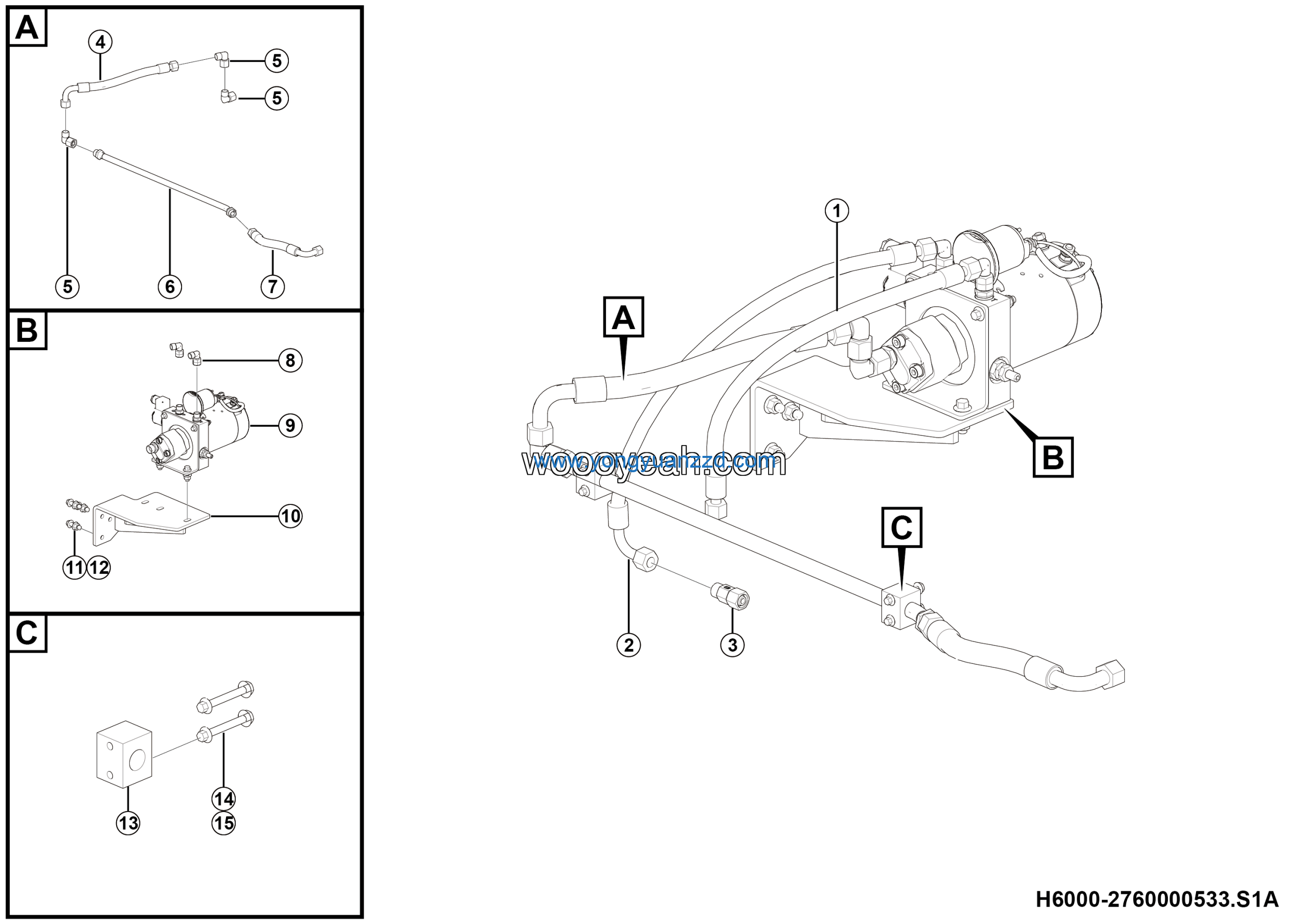

LGMG MTE86H 2025 – Emergency steering assy – H6000-2760000533.S1A
Category: 2025 > MTE86H > C0862E0A0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket wldmt | 27600005341 | 1 |
| 2 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 3 |
| 3 | Nut gb6187.1-m10flznyc-8-480 | 4013010628 | 3 |
| 4 | Tube clamp TLPG12-218 | 4120708228 | 2 |
| 5 | Bolt GB16674.1-M6*50flZnyc-8.8-480 | 4011010873 | 4 |
| 6 | Nut GB6177.1-M6flZnyc-8-480 | 4013010388 | 4 |
| 7 | Hose f481caca101005-500-hg | 4120722100 | 1 |
| 8 | Hose f481cacf101005-580-hg | 4120722101 | 1 |
| 9 | Straight transition joint DA10LOMD | 4120714265 | 1 |
| 10 | Hose assy F681CACF151508-380 | 4120712522 | 1 |
| 11 | Combination joint LGB143-02213 | 4041001156 | 3 |
| 12 | Pipe weldment 18*2*642 | 27600002121 | 1 |
| 13 | Hose F481CACF151508-300 | 4120704406 | 1 |
| 14 | Combination joint LGB143-01608 | 4041001023 | 2 |
| 15 | Power unit assy | 27600005381 | 1 |
