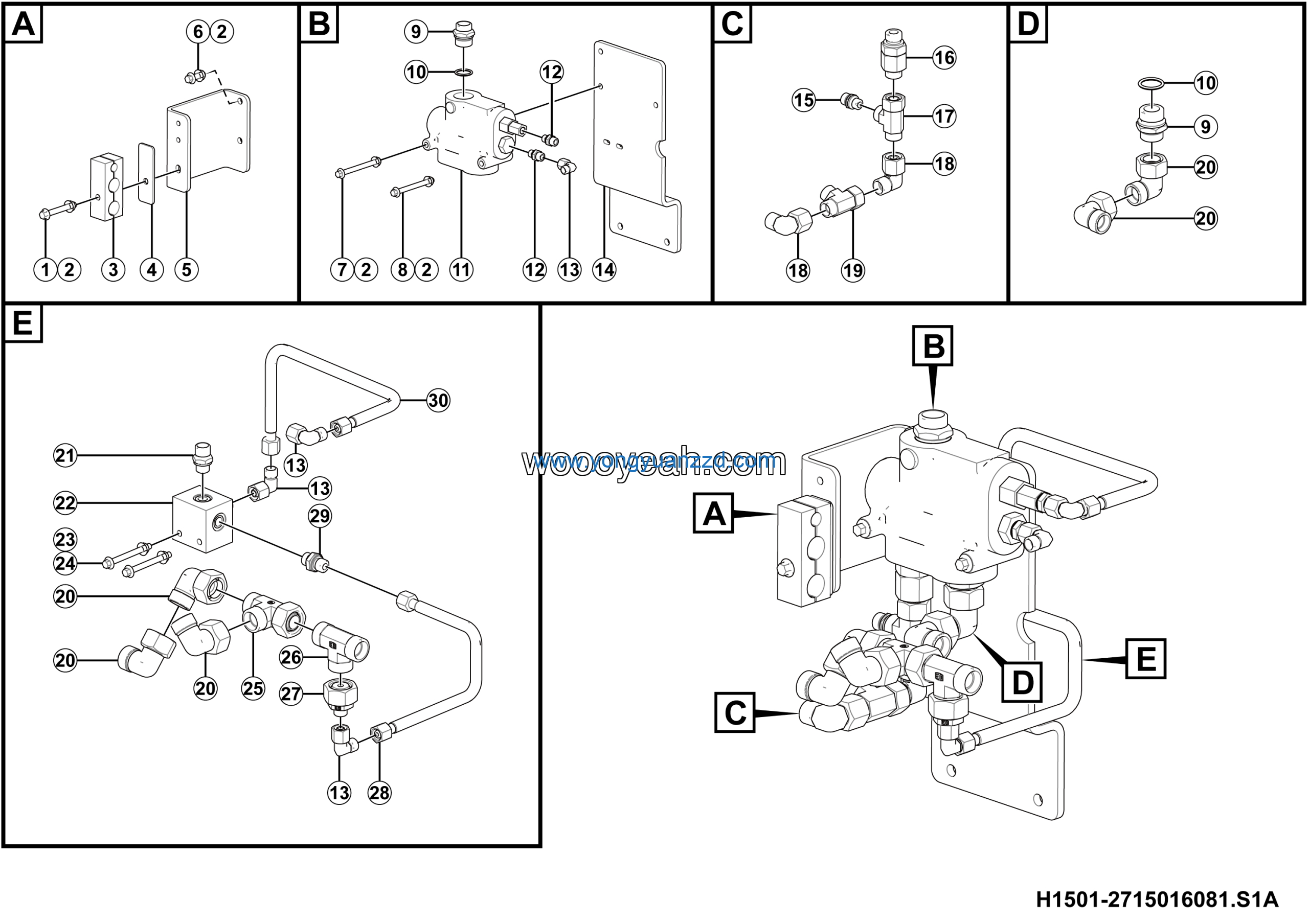

LGMG MTE86H 2025 – Priority valve assy – H1501-2715016081.S1A
Category: 2025 > MTE86H > C0862E0A0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | O-ring LGB168-12331 | 4041000779 | 2 |
| 2 | Priority valve VLE-150 | 4120708802 | 1 |
| 3 | Joint GEO08LMOMDCF | 4120001176 | 2 |
| 4 | Combination joint LGB143-01406 | 4041001047 | 4 |
| 5 | Plate 308*160*8 (black) | 27150160831 | 1 |
| 6 | Column end 1CG-16-04 | 4120702912 | 1 |
| 7 | Check valve SY-RV-L15-JM22*1.5-0.5 | 4120708098 | 1 |
| 8 | Pressure test tee | 27150108791 | 1 |
| 9 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 10 | Tee LGB174-0222222 | 4041010538 | 1 |
| 11 | Bolt GB16674.1-M8*60flZnyc-8.8-480 | 4011011425 | 1 |
| 12 | Combination joint LGB143-02616 | 4041001006 | 5 |
| 13 | Joint 1CM-16WD | 4120702883 | 1 |
| 14 | Oil return block | 27150130081 | 1 |
| 15 | Bolt GB16674.1-M6*60flZnyc-8.8-480 | 4011011185 | 2 |
| 16 | Nut GB6177.1-M6flZnyc-8-480 | 4013010388 | 2 |
| 17 | JOINT LGB174-0262626 | 4041010659 | 1 |
| 18 | Tee t18lcf | 4120712367 | 1 |
| 19 | Reducing joint RED18/08LOMDCF | 4120001300 | 1 |
| 20 | Pipe wldmt 03 | 27150157331 | 1 |
| 21 | Straight joint GE08LM14*1.5EDOMDCF | 4120709043 | 2 |
| 22 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 4 |
| 23 | Pipe welding | 27150130071 | 1 |
| 24 | Clamp 22-22-13 | 27150131991 | 1 |
| 25 | Plate 3*30*90 | 27150149491 | 1 |
| 26 | Bent plate 130*50*6 (black) | 27150160821 | 1 |
| 27 | Bolt GB16674.1-M8*25flZnyc-8.8-480 | 4011010994 | 1 |
| 28 | Bolt GB16674.1-M8*90flZnyc-8.8-480 | 4011011084 | 1 |
| 29 | Bolt GB16674.1-M8*85flZnyc-8.8-480 | 4011011023 | 1 |
| 30 | Straight joint LGB120-02628 | 4041000796 | 2 |
