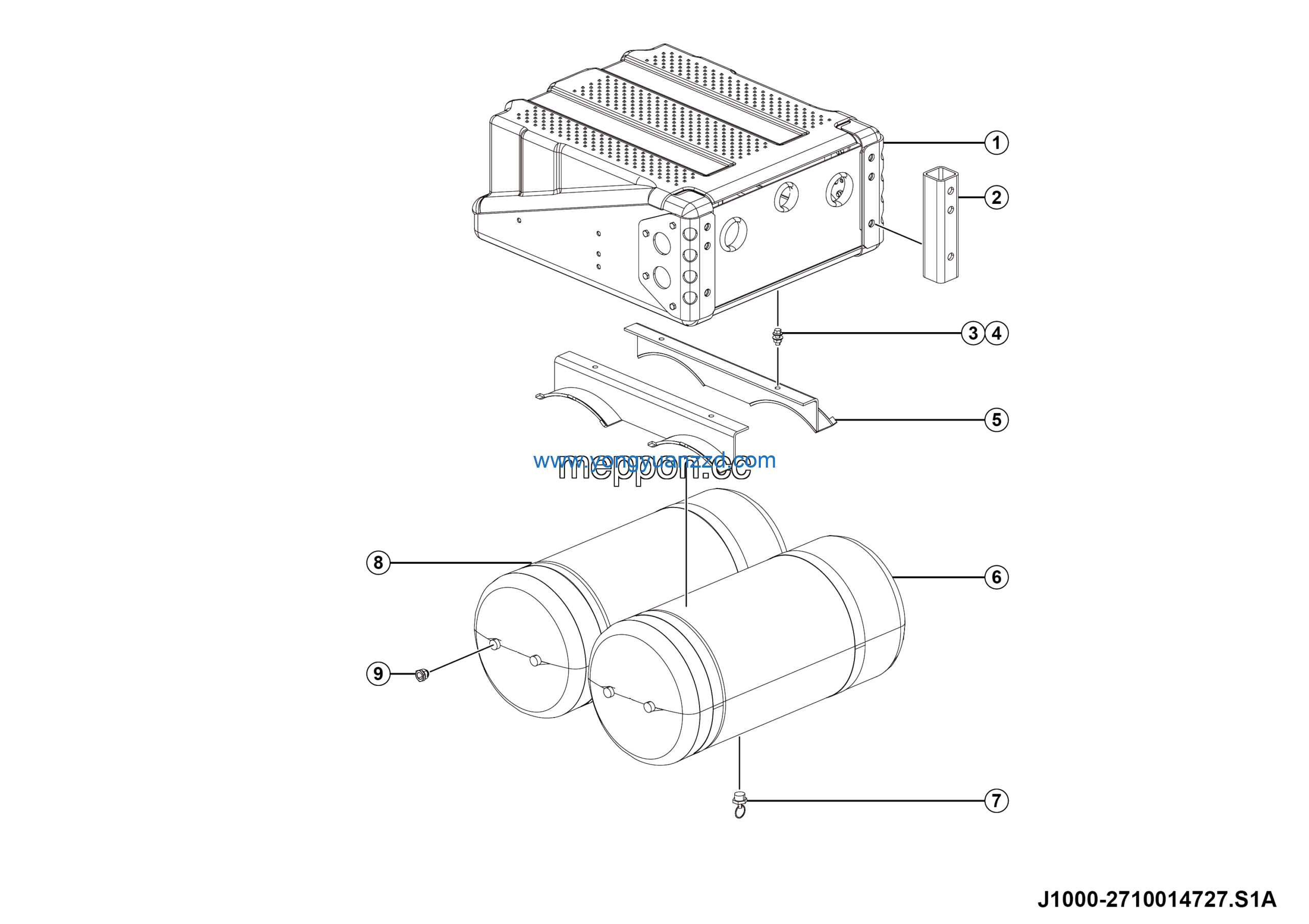

LGMG MTH116 2025 – Battery box assy – J1000-2710014727.S1A
Category: 2025 > MTH116 > C1160Y3A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Battery box assy | 27100147401 | 1 |
| 2 | Square tube 60*6*240 | 27100147521 | 2 |
| 3 | Bolt GB16674.1-M10*25flZnyc-8.8-480 | 4011011015 | 4 |
| 4 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 4 |
| 5 | Air reservoir bracket | 27100147291 | 2 |
| 6 | Air reservoir 50L | 4120001543 | 2 |
| 7 | Drain valve | 4120000200 | 2 |
| 8 | Hose clamp φ315-φ320 | 4120001542 | 4 |
| 9 | Nut seat | 27110107601 | 4 |
