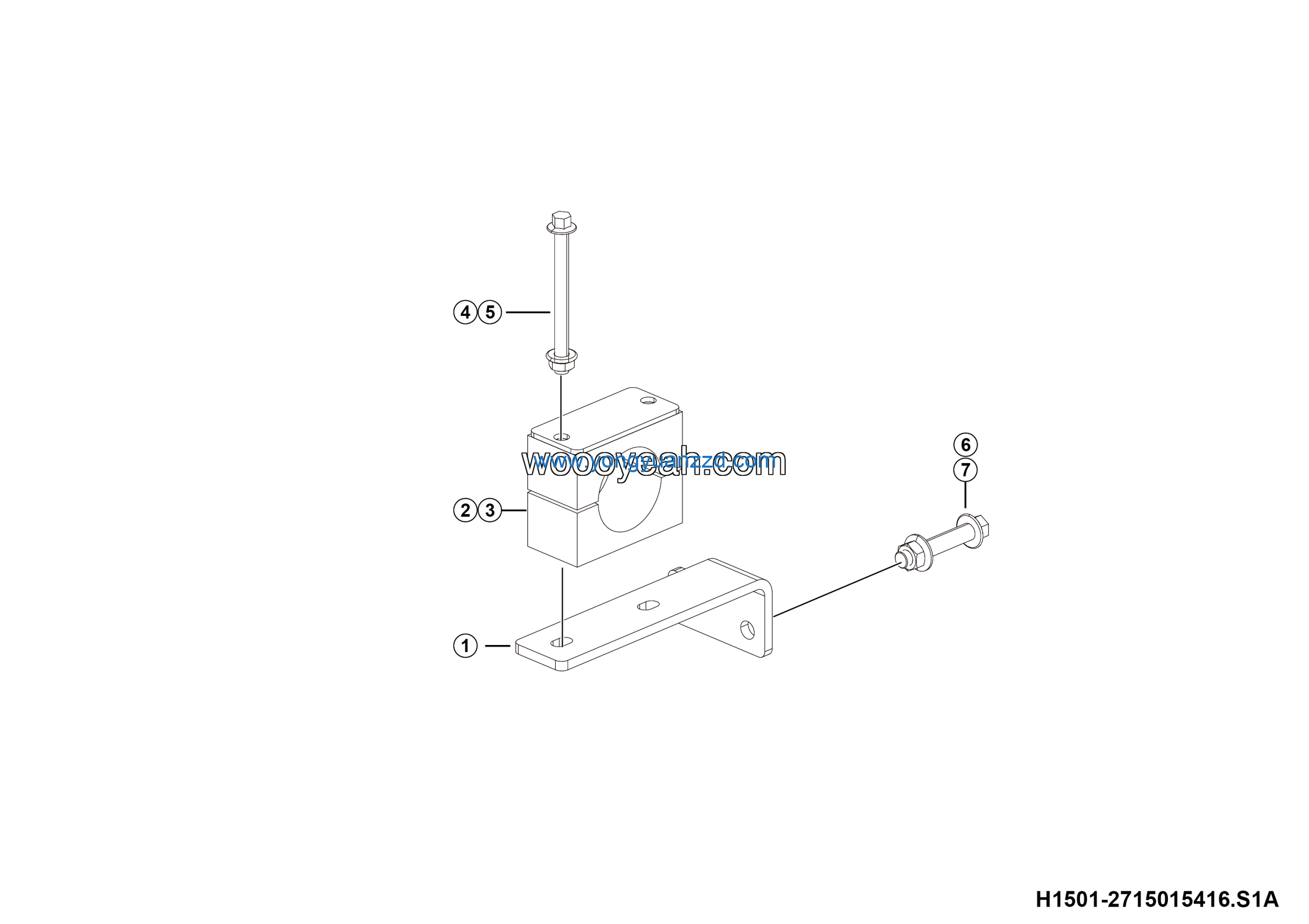

LGMG MTH116 2025 – Bracket assy – H1501-2715015416.S1A
Category: 2025 > MTH116 > C1160Y3A0A004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | L-bracket 170*78*52 | 27150150391 | 1 |
| 2 | Plate 85*40*3 | 27150147141 | 1 |
| 3 | Single-port pipe clamp 51 | 27150147151 | 1 |
| 4 | Bolt GB16674.1-M8*90flZnyc-8.8-480 | 4011011084 | 2 |
| 5 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 2 |
| 6 | Bolt GB16674.1-M10*55flZnyc-8.8-480 | 4011011009 | 2 |
| 7 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 2 |
