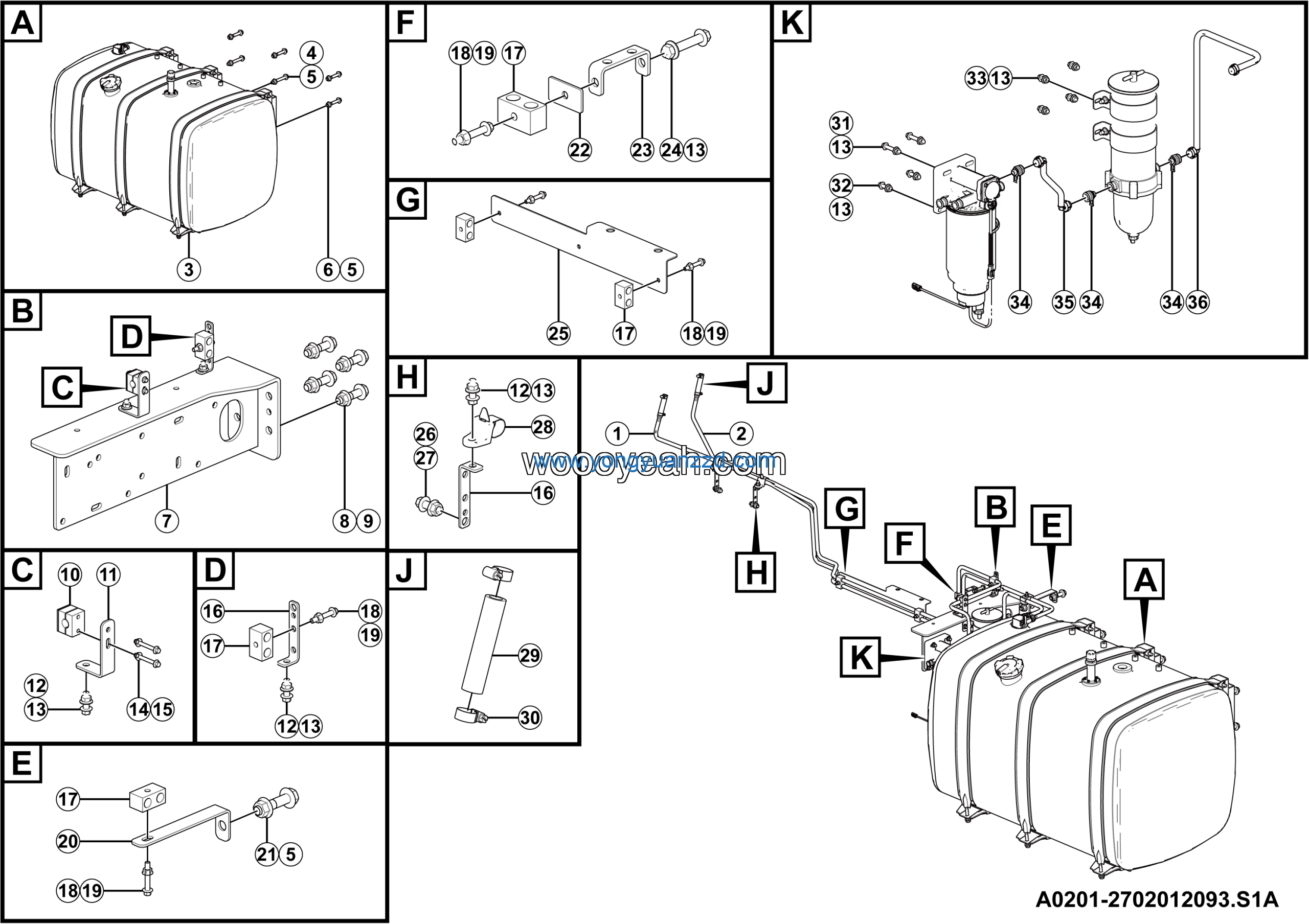

LGMG MTH116 2025 – Fuel tank assy – A0201-2702012093.S1A
Category: 2025 > MTH116 > C1160Y3A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Tube clamp TLPG16-216 | 4120710944 | 1 |
| 2 | Bracket 104*68.5*30 | 27020121011 | 1 |
| 3 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 4 |
| 4 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 13 |
| 5 | Bolt GB16674.1-M6*50flZnyc-8.8-480 | 4011010873 | 2 |
| 6 | Nut GB6177.1-M6flZnyc-8-480 | 4013010388 | 2 |
| 7 | Plate | 27010113352 | 3 |
| 8 | Double-pipe clamp TTPG16-216 | 4120712564 | 5 |
| 9 | Bolt gb16674.1-m8*50flznyc-8.8-480 | 4011011902 | 5 |
| 10 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 5 |
| 11 | Quick-connect fuel pipe 16*2*4112 | 27020120991 | 1 |
| 12 | Bracket 205*60*30 | 27020121021 | 1 |
| 13 | Bolt gb5789-m16*1.5*70flznyc-12.9-480 | 4011011947 | 1 |
| 14 | Cover plate | 27410100861 | 1 |
| 15 | Plate | 27020109291 | 1 |
| 16 | Bolt GB16674.1-M10*60flZnyc-8.8-480 | 4011011093 | 1 |
| 17 | Plate 550*84*40 | 27020120971 | 1 |
| 18 | Bolt GB16674.1-M12*35flZnyc-8.8-480 | 4011011008 | 2 |
| 19 | Nut gb6177.1-m12flznyc-8-480 | 4013010621 | 2 |
| 20 | Cable tie HS-J117 | 4130704969 | 2 |
| 21 | Connection hose 14*4*100 | 27020115121 | 2 |
| 22 | Quick-connect fuel pipe 16*2*3950 | 27020121001 | 1 |
| 23 | Hose clamp JB8870-D20 | 4017000010 | 4 |
| 24 | Bolt GB16674.1-M10*55flZnyc-8.8-480 | 4011011009 | 2 |
| 25 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 2 |
| 26 | Bolt GB16674.1-M10*25flZnyc-8.8-480 | 4011011015 | 4 |
| 27 | Quick-connect joint (w/ m16x1.5 washer) | 27020114841 | 4 |
| 28 | Fuel hose ⅳ16*2 | 27020112552 | 1 |
| 29 | Quick-connect fuel pipe 16*2*698 | 27020120981 | 1 |
| 30 | 630l fuel tank assy | 27020120961 | 1 |
| 31 | Bolt gb5789-m16*1.5*120flznyc-12.9-480 | 4011011951 | 2 |
| 32 | Nut GB6177.2-RLM16*1.5flZnyc-12 | 4013010558 | 7 |
| 33 | Bolt gb5789-m16*1.5*100flznyc-12.9-480 | 4011011950 | 4 |
| 34 | Fuel filter bracket wldmt | 27020120941 | 1 |
| 35 | Bolt gb5789-m16*65flznyc-8.8-480 | 4011011938 | 4 |
| 36 | Nut gb6177.1-m16flznyc-8-480 | 4013010625 | 4 |
