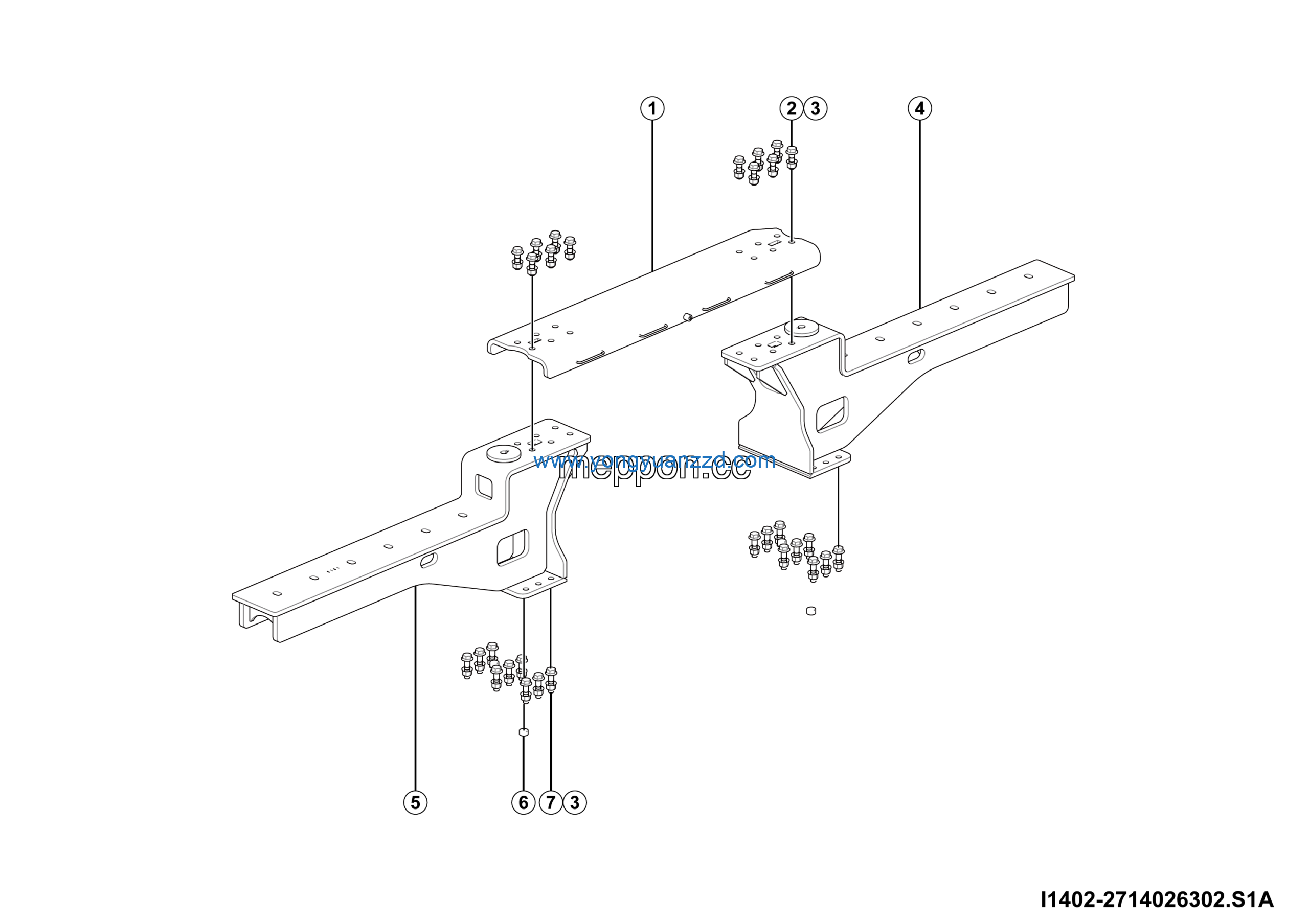

LGMG MTH116 2025 – Hydro-pneumatic suspension cylinder mount and crossbeam installation – I1402-2714026302.S1A
Category: 2025 > MTH116 > C1160Y3A0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydro-pneumatic suspension cylinder crossbeam wldmt | 27140249311 | 1 |
| 2 | Bolt gb5789-m18*1.5*60flznyc-12.9-480 | 4011011959 | 12 |
| 3 | Nut gb6187.2-m18*1.5flznyc-12-480 | 4013010636 | 30 |
| 4 | Rh walkway bracket wldmt | 27140263061 | 1 |
| 5 | Lh walkway bracket wldmt | 27140263031 | 1 |
| 6 | Cushion block | 27120113681 | 4 |
| 7 | Bolt gb5789-m18*1.5*70flznyc-12.9-480 | 4011011960 | 18 |
