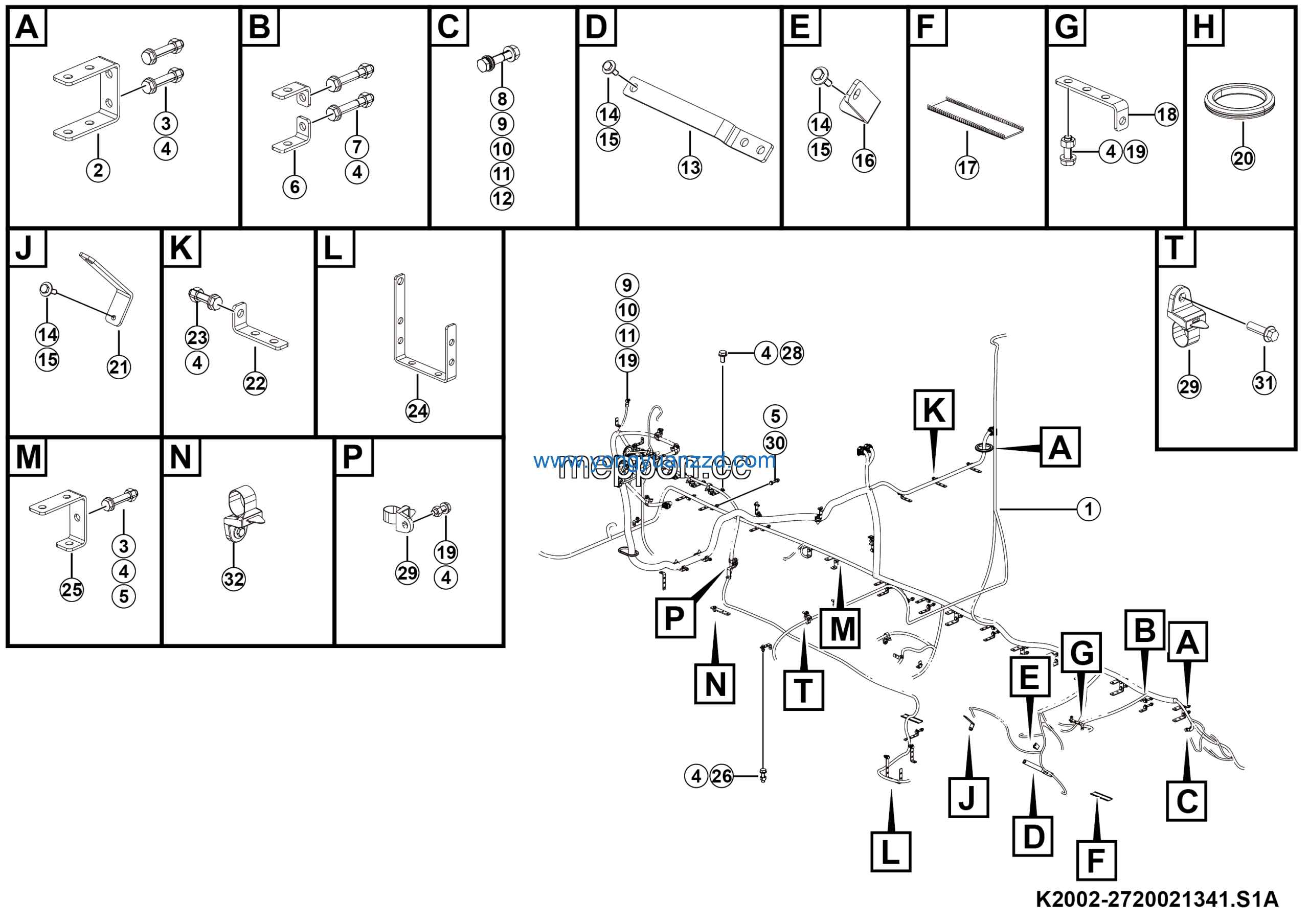

LGMG MTH116 2025 – Motor harness assy – K2002-2720021341.S1A
Category: 2025 > MTH116 > C1160Y3A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 2 | Washer GB862.2-10-65Mn | 4015010586 | 2 |
| 3 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 53 |
| 4 | L-support-60 | 27620000711 | 2 |
| 5 | Bolt GB16674-M6*20flznyc-8.8 | 4011010757 | 6 |
| 6 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 14 |
| 7 | L-bracket | 27340115281 | 1 |
| 8 | 1 | 27100124591 | 2 |
| 9 | Holder | 27200141551 | 13 |
| 10 | Bolt GB16674.1-M6*16flZnyc-8.8-480 | 4011010735 | 4 |
| 11 | Motor harness | 27200213422 | 1 |
| 12 | Grommet LGB313-6*80 | 4043016039 | 1 |
| 13 | Bracket | 27200184101 | 1 |
| 14 | Low voltage cable bracket 80*35*20 | 27200155291 | 12 |
| 15 | Bolt GB16674.1-M10*40flZnyc-8.8-480 | 4011011086 | 6 |
| 16 | Bracket150*120*20 | 27200188451 | 1 |
| 17 | C-bracket 90*30*80 | 27100141061 | 2 |
| 18 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 3 |
| 19 | Bolt GB16674.1-M10*25flZnyc-8.8-480 | 4011011015 | 19 |
| 20 | Bolt GB16674.1-M10*20flZnyc-8.8-480 | 4011010993 | 9 |
| 21 | Cable tie HS-J117 | 4130704969 | 7 |
| 22 | C-bracket 90*80*30 | 27620004111 | 5 |
| 23 | Bolt gb16674.1-m10*80flznyc-8.8-480 | 4011011904 | 1 |
| 24 | Bolt GB5783-M12*20flZnyc-8.8-480 | 4011010824 | 1 |
| 25 | Cable tie 14400342 | 4130703098 | 13 |
| 26 | Bolt GB16674.1-M10*50flZnyc-8.8-480 | 4011011219 | 4 |
| 27 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 1 |
| 28 | Washer GB862.2-12-65Mn | 4015010589 | 2 |
| 29 | Holder | 27200142321 | 8 |
| 30 | Bolt gb16674.1-m10*65flznyc-8.8-480 | 4011011903 | 2 |
| 31 | Bolt GB16674.1-M10*55flZnyc-8.8-480 | 4011011009 | 20 |
| 32 | Double sack wedge lock washer HF10 | 4190708409 | 4 |
