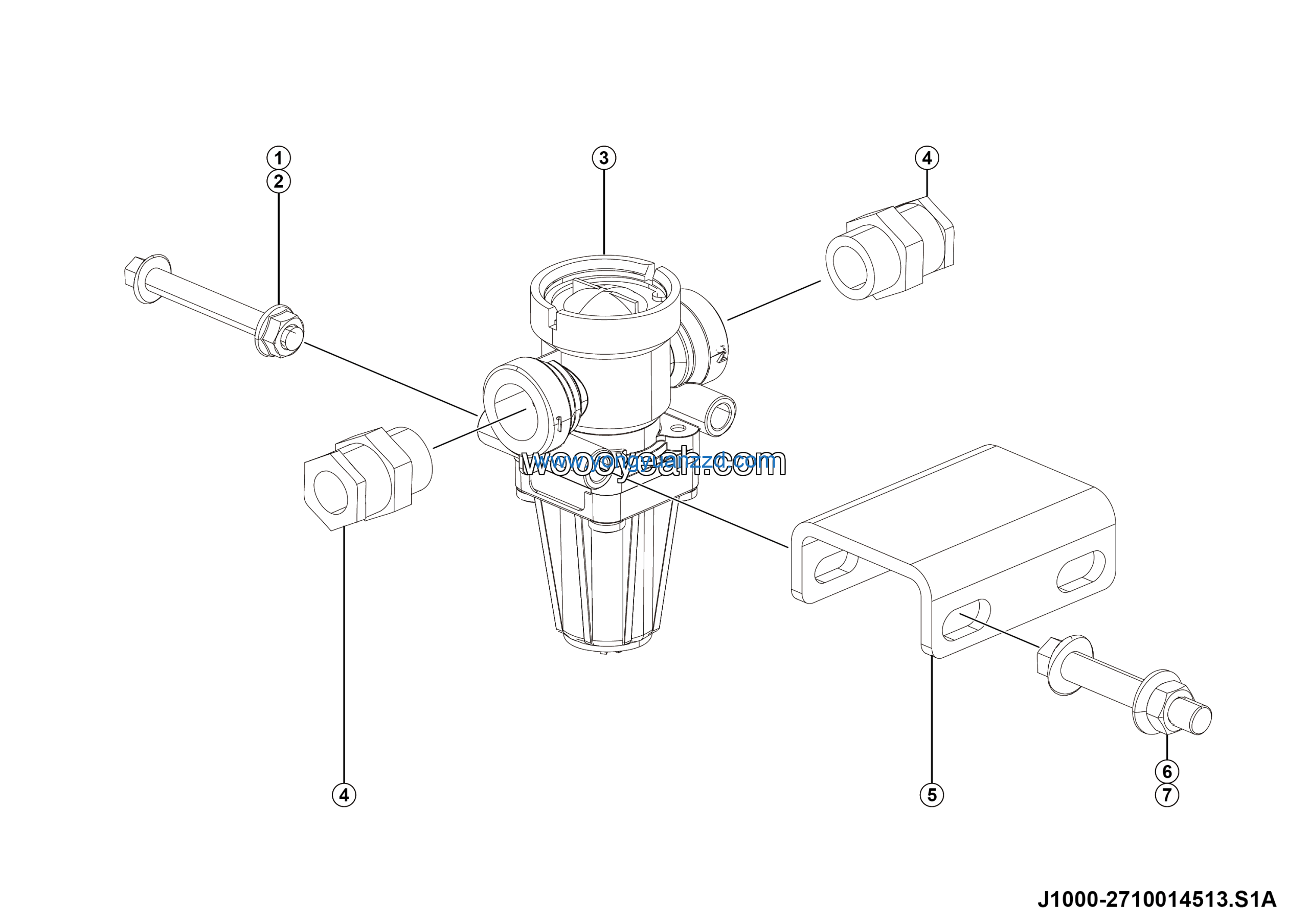

LGMG MTH116 2025 – Pressure limiting valve installation – J1000-2710014513.S1A
Category: 2025 > MTH116 > C1160Y3A0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB16674.1-M8*65flZnyc-8.8-480 | 4011011203 | 2 |
| 2 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 2 |
| 3 | Pressure limiting valve | 4120001472 | 1 |
| 4 | Transition joint M22*1.5/NG12 | 4120001552 | 2 |
| 5 | Anchor bracket85*65*32 | 27110113572 | 1 |
| 6 | Bolt GB16674.1-M10*60flZnyc-8.8-480 | 4011011093 | 2 |
| 7 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 2 |
