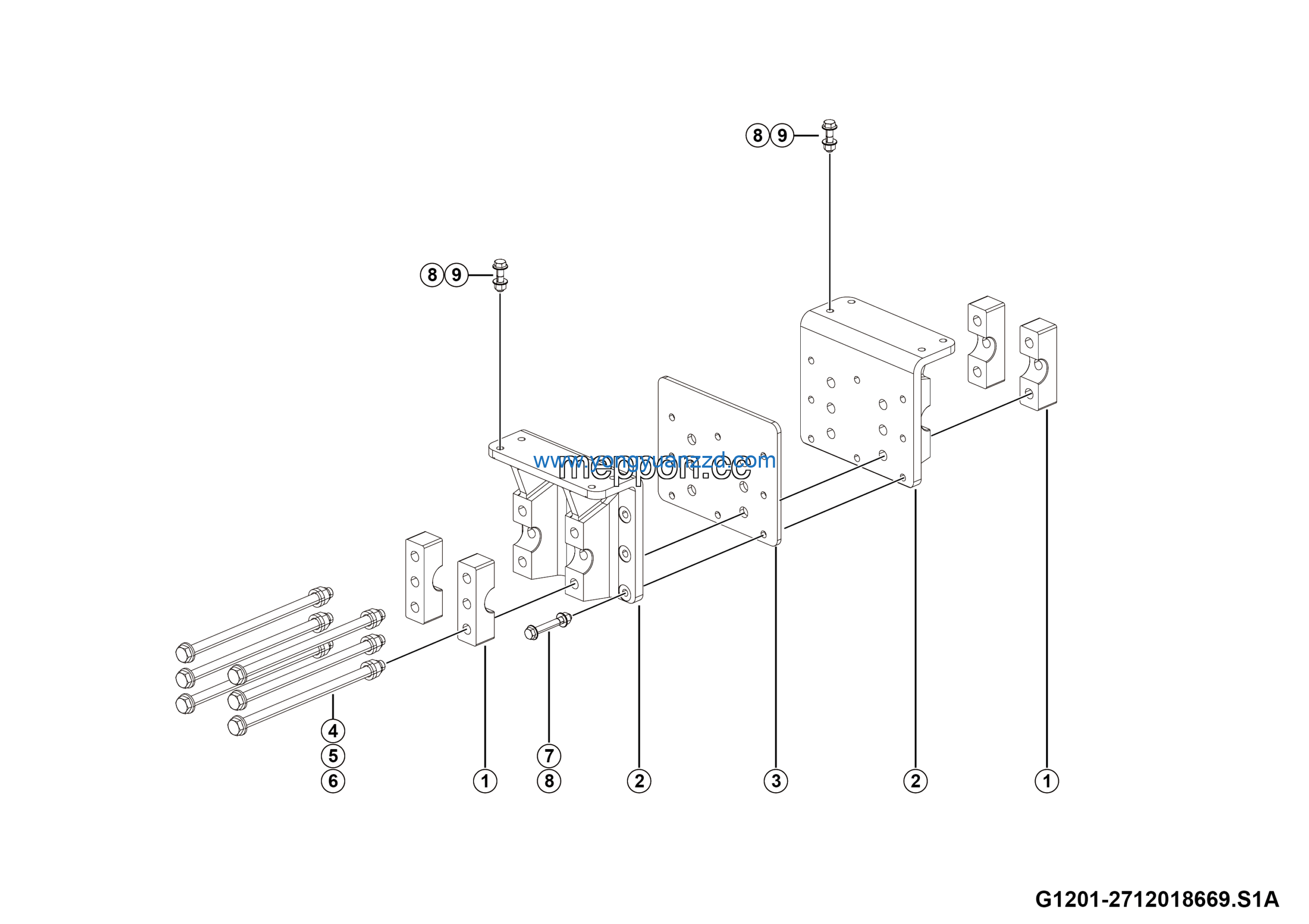

LGMG MTH116 2025 – Rear suspension upr torque rod mount assy – G1201-2712018669.S1A
Category: 2025 > MTH116 > C1160Y3A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | upper thrust bar scale | 27120116801 | 4 |
| 2 | Frame upr torque rod lwr mount | 27120187251 | 2 |
| 3 | Plate | 27120176131 | 1 |
| 4 | Bolt m24*470flznyc-12.9 | 27120187161 | 6 |
| 5 | Washer gb1230-24flznyc-45-480 | 4015010630 | 6 |
| 6 | Self-locking nut with the shoulder | 27120103611 | 6 |
| 7 | Bolt gb5789-m16*1.5*120flznyc-12.9-480 | 4011011951 | 8 |
| 8 | Nut gb6187.2-m16*1.5flznyc-12-480 | 4013010635 | 16 |
| 9 | Bolt gb5789-m16*1.5*60flznyc-12.9-480 | 4011011945 | 8 |
