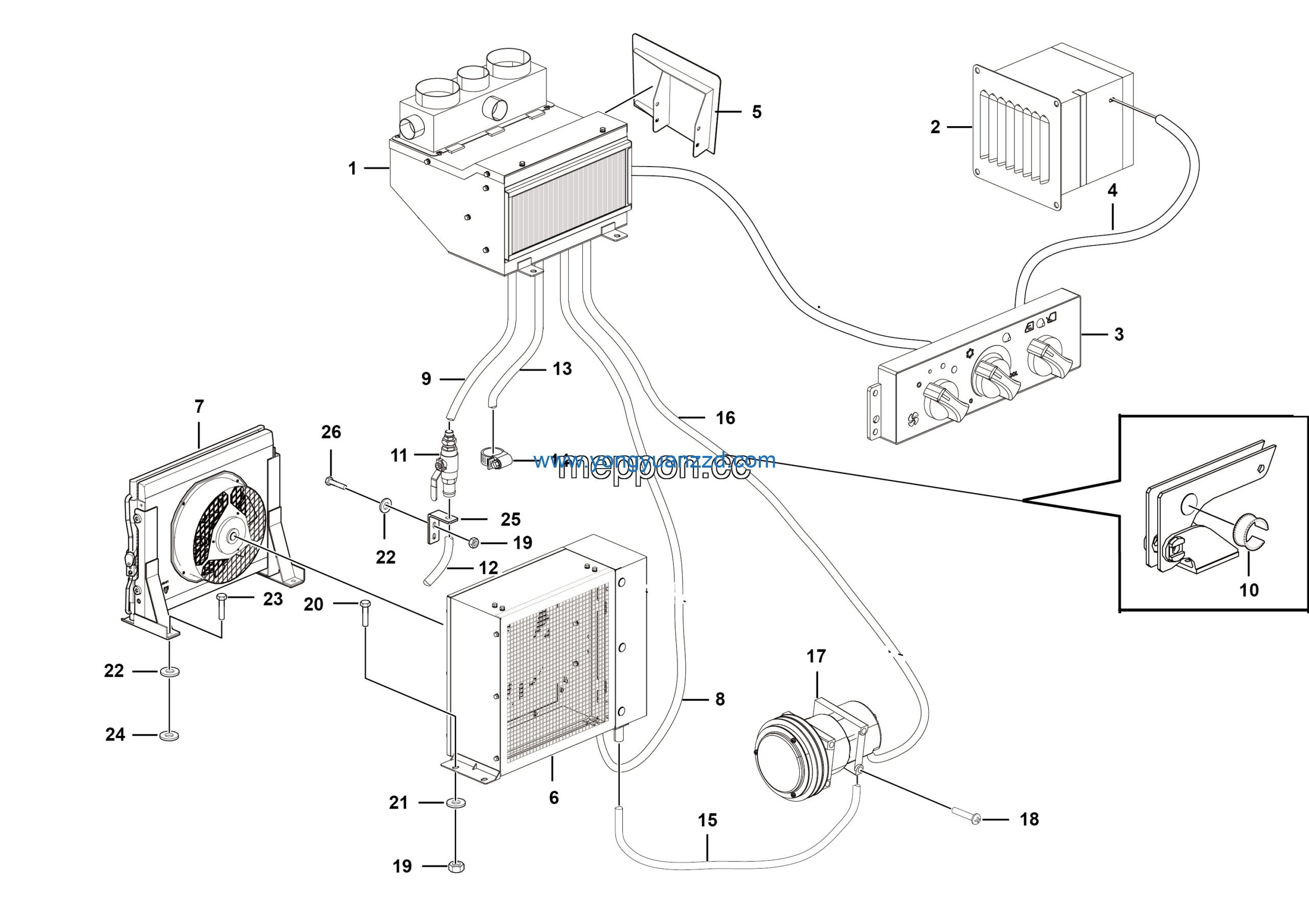

LGMG Off-Highway Dump Truck 2020 – Air conditioner assy – N2100-2721010442
Category: 2020 > Off-Highway Dump Truck > CMT96 > C0960WF01
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rubber sleeve | 27210104141 | 2 |
| 2 | Valve assembly | 27210103841 | 1 |
| 3 | Intlet pipe of heater 1 | 27210104122 | 1 |
| 4 | Hose clamp JB8870-D32 | 4017000011 | 6 |
| 5 | Pipe | 27210103532 | 1 |
| 6 | Pipe（Compressor-condenser） | 4190002314 | 1 |
| 7 | Pipe（Compressor-evaporator） | 4190002313 | 1 |
| 8 | Screw GB70.1-M8*100flZnyc-12.9-480 | 4014010094 | 4 |
| 9 | Compressor assy | 4190003346 | 1 |
| 10 | Washer GB97.1-10EpZn-300HV | 4015000162 | 18 |
| 11 | Evaporator assy | 4190002308 | 1 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 10 |
| 13 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 8 |
| 14 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 15 | Washer GB93-6EpZn-65Mn | 4015000213 | 2 |
| 16 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 2 |
| 17 | Ball support | 27210104091 | 1 |
| 18 | Bolt GB5782-M10*30EpZn-8.8 | 4011010174 | 2 |
| 19 | Fresh air assy | 4190002309 | 1 |
| 20 | Control panel assy | 4190002310 | 1 |
| 21 | Transition harness | 4190002553 | 1 |
| 22 | Trim panel | 4190002565 | 1 |
| 23 | Condenser cover assembly | 27210104011 | 1 |
| 24 | Condenser assy | 4190001667 | 1 |
| 25 | Pipe（Evaporator-reservoir） | 4190002312 | 1 |
| 26 | MOUNTING PLATE | 27210104431 | 1 |
