LGMG Off-Highway Dump Truck 2020 – Air conditioner assy – N2100-2721010503
Category: 2020 > Off-Highway Dump Truck > CMT66 > C0660W3E0A003

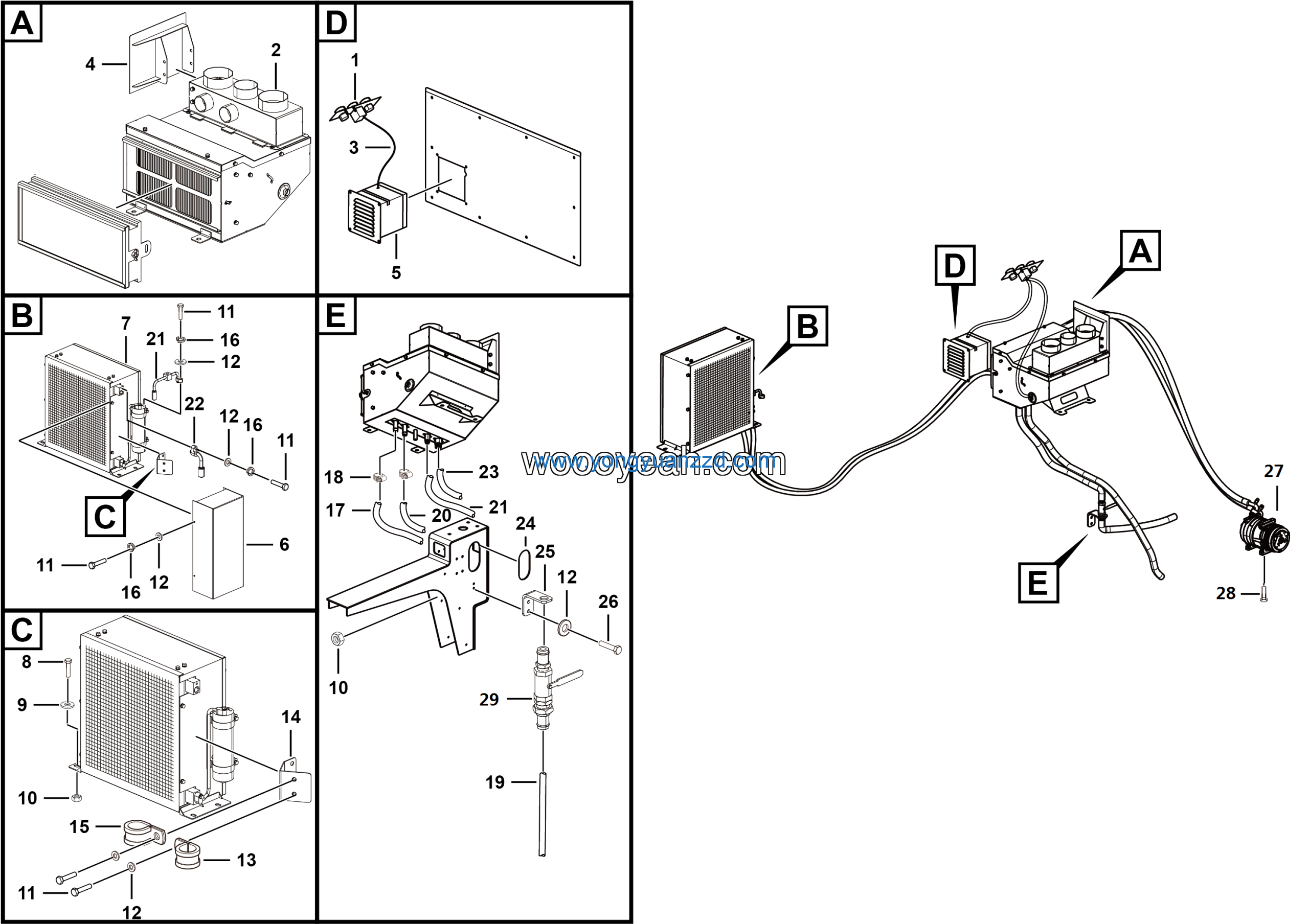

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 2 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 7 |
| 3 | Washer GB97.1-6EpZn-300HV | 4015000207 | 7 |
| 4 | Clamp | 4190002391 | 1 |
| 5 | Bracket | 4190002389 | 1 |
| 6 | Clamp | 4190002390 | 1 |
| 7 | Control panel assy | 4190002310 | 1 |
| 8 | Evaporator assy | 4190002308 | 1 |
| 9 | Transition harness | 4190002553 | 1 |
| 10 | Trim panel | 4190002565 | 1 |
| 11 | Fresh air assy | 4190002309 | 1 |
| 12 | Shield | 4190002561 | 1 |
| 13 | Condenser assy | 4190001667 | 1 |
| 14 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 4 |
| 15 | Washer GB96.1-10EpZn-300HV | 4015000197 | 10 |
