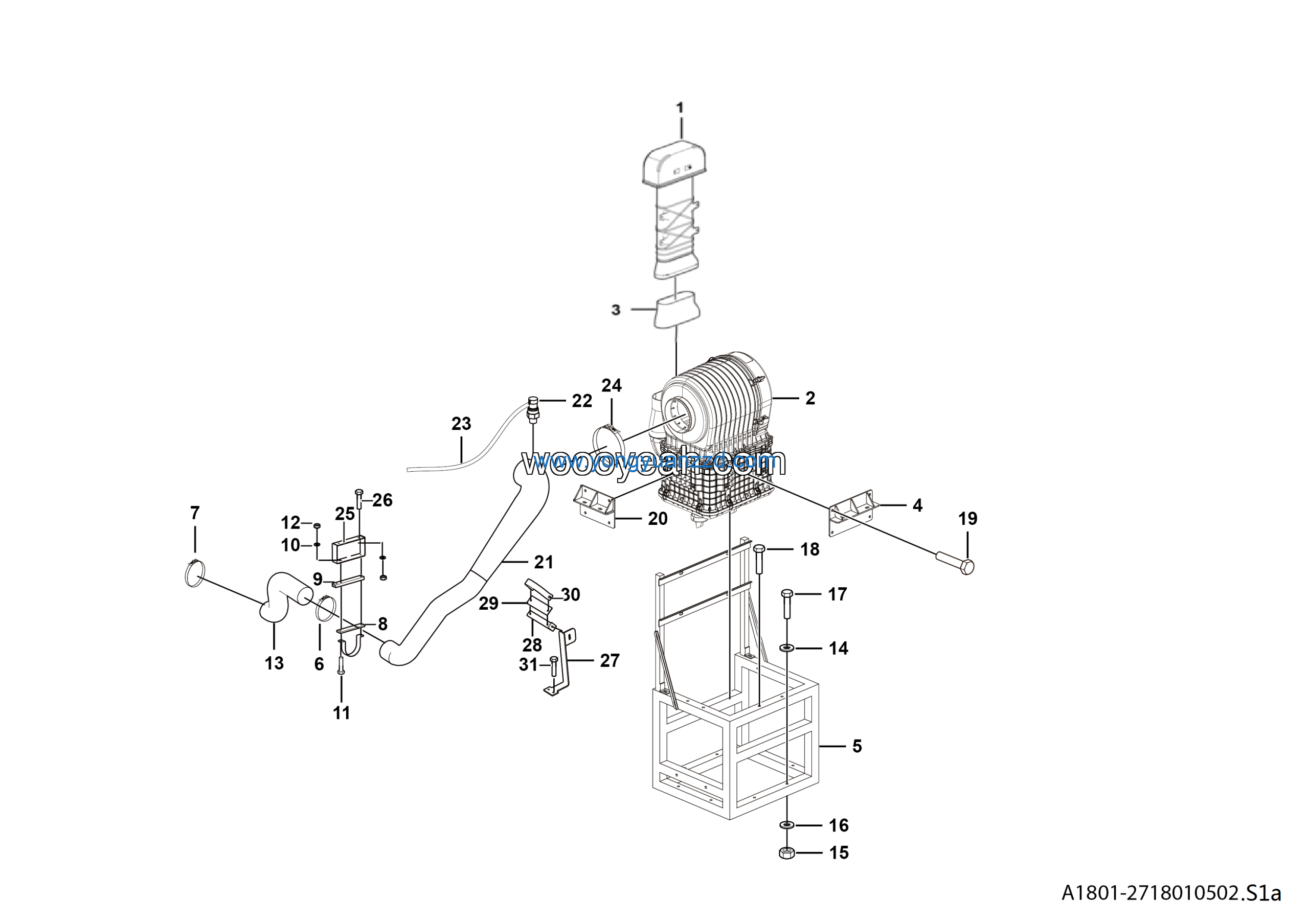

LGMG Off-Highway Dump Truck 2020 – Air filter assy – A1801-2718010502.S1a
Category: 2020 > Off-Highway Dump Truck > CMT96 > C0960HA11
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 2 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 3 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 4 | Air pipe | 27180105041 | 1 |
| 5 | Washer GB96.1-12EpZn-300HV | 4015000186 | 12 |
| 6 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 7 | Washer GB97.1-12EpZn-300HV | 4015000168 | 12 |
| 8 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 8 |
| 9 | Bolt GB5782-M12*75EpZn-8.8 | 4011000874 | 4 |
| 10 | Bolt GB16674.1-M10*25EpZn-12.9 | 4011010295 | 8 |
| 11 | High level intake assy | 4190002593 | 1 |
| 12 | Support assembly ⅱ | 27180103021 | 1 |
| 13 | Pipe | 27180105051 | 1 |
| 14 | Vacuum level alarm | 4110001427 | 1 |
| 15 | Wire | 27200107621 | 1 |
| 16 | T-bolt clamp φ188-φ196 | 4190002630 | 1 |
| 17 | Support | 27180105031 | 1 |
| 18 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 6 |
| 19 | Support | 27180105061 | 1 |
| 20 | RADIATOR ASSEMBLY | 27180104321 | 1 |
| 21 | Plate | 27180104331 | 1 |
| 22 | Air filter assy（Donaldson） | 4190002628 | 1 |
| 23 | ENGINE SYSTEM | 27180104341 | 1 |
| 24 | Bolt GB5782-M12*35EpZn-8.8 | 4011000061 | 2 |
| 25 | Connecting hose | 4190002594 | 1 |
| 26 | Support assembly ⅰ | 27180102961 | 1 |
| 27 | Support | 27180105251 | 1 |
| 28 | No longer used | 4019000076 | 2 |
| 29 | Clamp 130 | 27180103581 | 1 |
| 30 | Rubber pad | 27180103591 | 1 |
| 31 | Square tube | 27180103601 | 1 |
