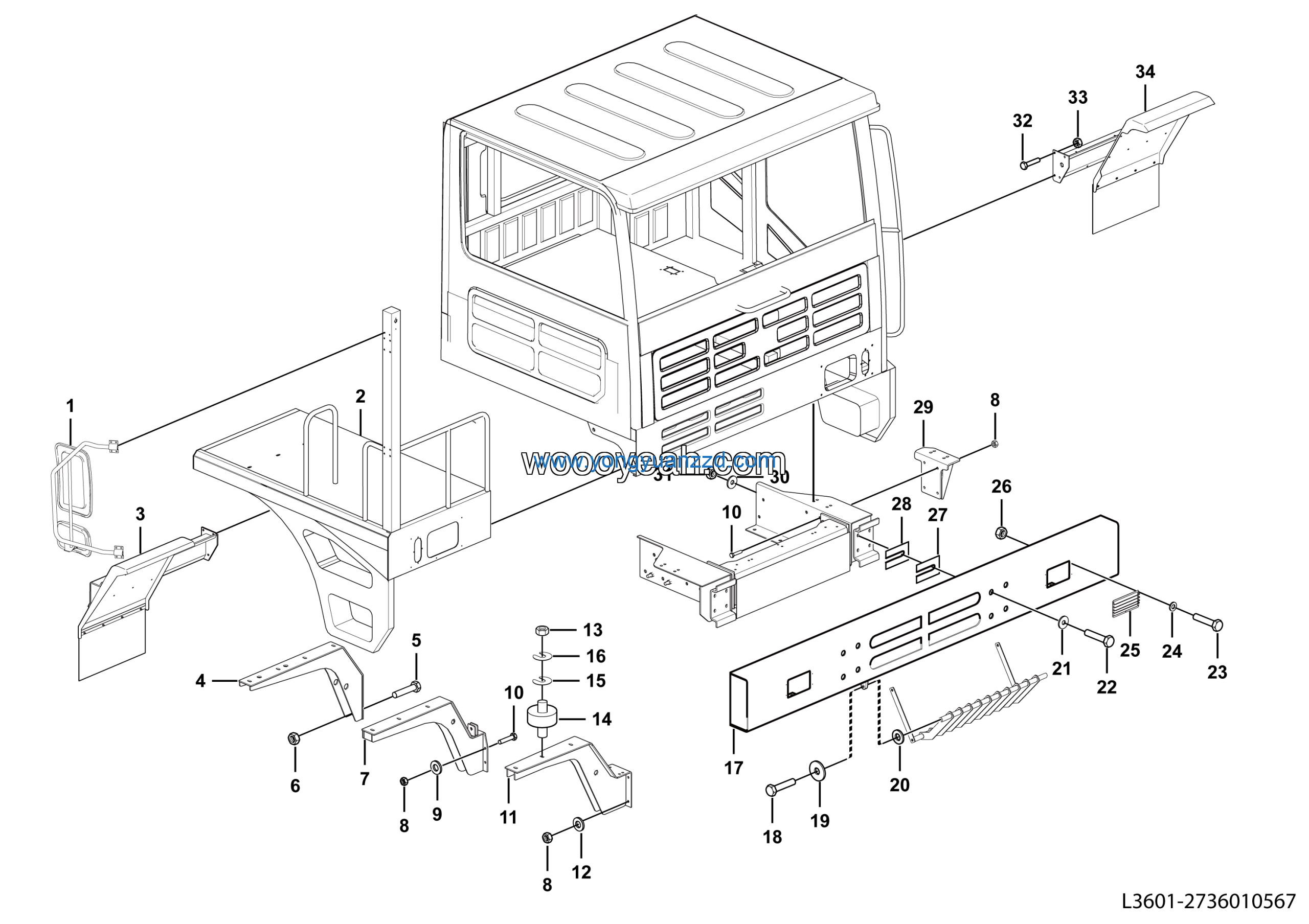

LGMG Off-Highway Dump Truck 2020 – Covering assy – L3601-2736010567
Category: 2020 > Off-Highway Dump Truck > MT86H > M086HWA80
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M14*55EpZn-8.8 | 4011010254 | 11 |
| 2 | Support bracket | 27130103923 | 1 |
| 3 | Washer GB96.1-14EpZn-300HV | 4015000188 | 20 |
| 4 | Nut GB6185.2-M14*1.5EpZn-8 | 4013010203 | 20 |
| 5 | Rubber | 27360106641 | 10 |
| 6 | Adjustment shim 1 | 27130113171 | 3 |
| 7 | Adjustment shim 2 | 27130113181 | 3 |
| 8 | Bumper assembly | 27130114152 | 1 |
| 9 | Bolt GB5785-M16*1.5*50EpZn-8.8 | 4011000512 | 2 |
| 10 | Trim washer | 27130104412 | 2 |
| 11 | RH RR view mirror assy | 4190002295 | 1 |
| 12 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 13 | Washer GB1230-16EpZn-45 | 4015000001 | 8 |
| 14 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 8 |
| 15 | Bolt GB16674.1-M5*25EpZn-8.8 | 4011000586 | 8 |
| 16 | Washer GB97.1-5EpZn-300HV | 4015000110 | 8 |
| 17 | Fog light protecting cap | 27130102161 | 2 |
| 18 | No longer used | 4013000118 | 8 |
| 19 | Trimmed gasket | 27130107671 | 4 |
| 20 | Trimmed gasket | 27130107681 | 4 |
| 21 | Front support base | 27130102495 | 1 |
| 22 | Fixed RH platform | 4190002578 | 1 |
| 23 | No longer used | 4015000305 | 8 |
| 24 | Nut GB6170-M16EpZn-8 | 4013000016 | 8 |
| 25 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 8 |
| 26 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 27 | Left fender assembly | 27130104141 | 1 |
| 28 | Right fender assembly | 27130104101 | 1 |
| 29 | Support bracket | 27360105453 | 1 |
| 30 | Bolt GB5783-M16*50flZnyc-12.9-480 | 4011010616 | 6 |
| 31 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 6 |
| 32 | Middle rack | 27360105422 | 1 |
| 33 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 20 |
| 34 | Washer GB97.1-14EpZn-300HV | 4015000177 | 12 |
